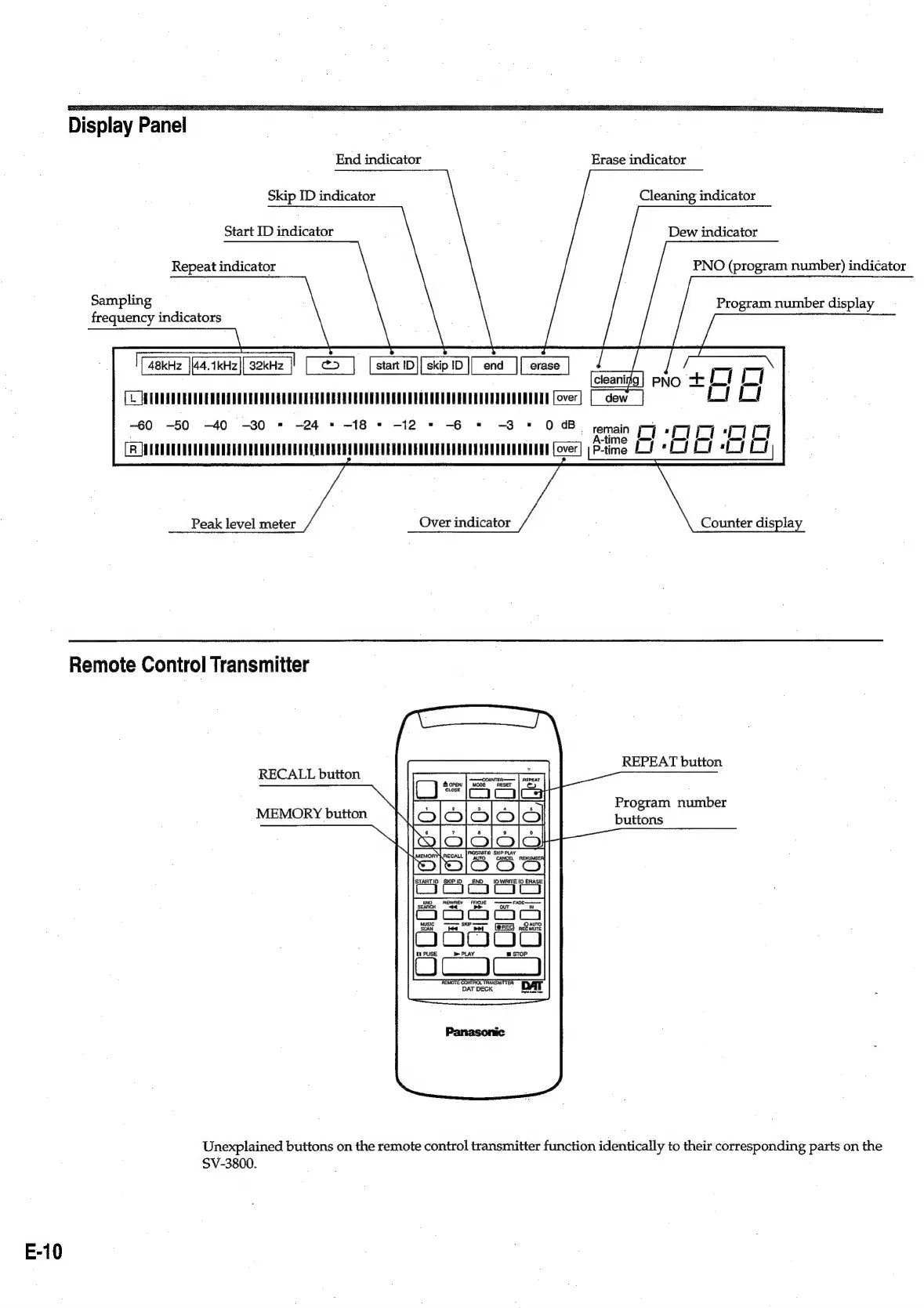

Panasonic SV-3800 - Display and Remote Details; Display Panel Indicators; Remote Control Transmitter Functions

End indicator Erase indicator
Skip ID indicator Cleaning indicator
Start ID indicator Dew indicator
Repeat indicator PNO (program number) indicator
Sampling Program number display
frequency indicators
COE Lover
~60 -50 40 -30 = -24 * -18 «© 12 * 6 © -3 * 0 0B. remain FF +
-time >" . —
CR NAUUUUDS UNO QUUTEQDEUEQDTEREOUUEUOTEOO UTTER ETT TEDCHTEEETTITINIIEE over] | P-time Lut «Lt a a
Peak level meter Over indicator Counter displa
Remote Control Transmitter
REPEAT button
RECALL button
Program number
MEMORY
button
buttons
Unexplained buttons on the remote control transmitter function identically to their corresponding parts on the
SV-3800.
E-10
