Panasonic TC-L42U22 - Electrical Replacement Parts List

58

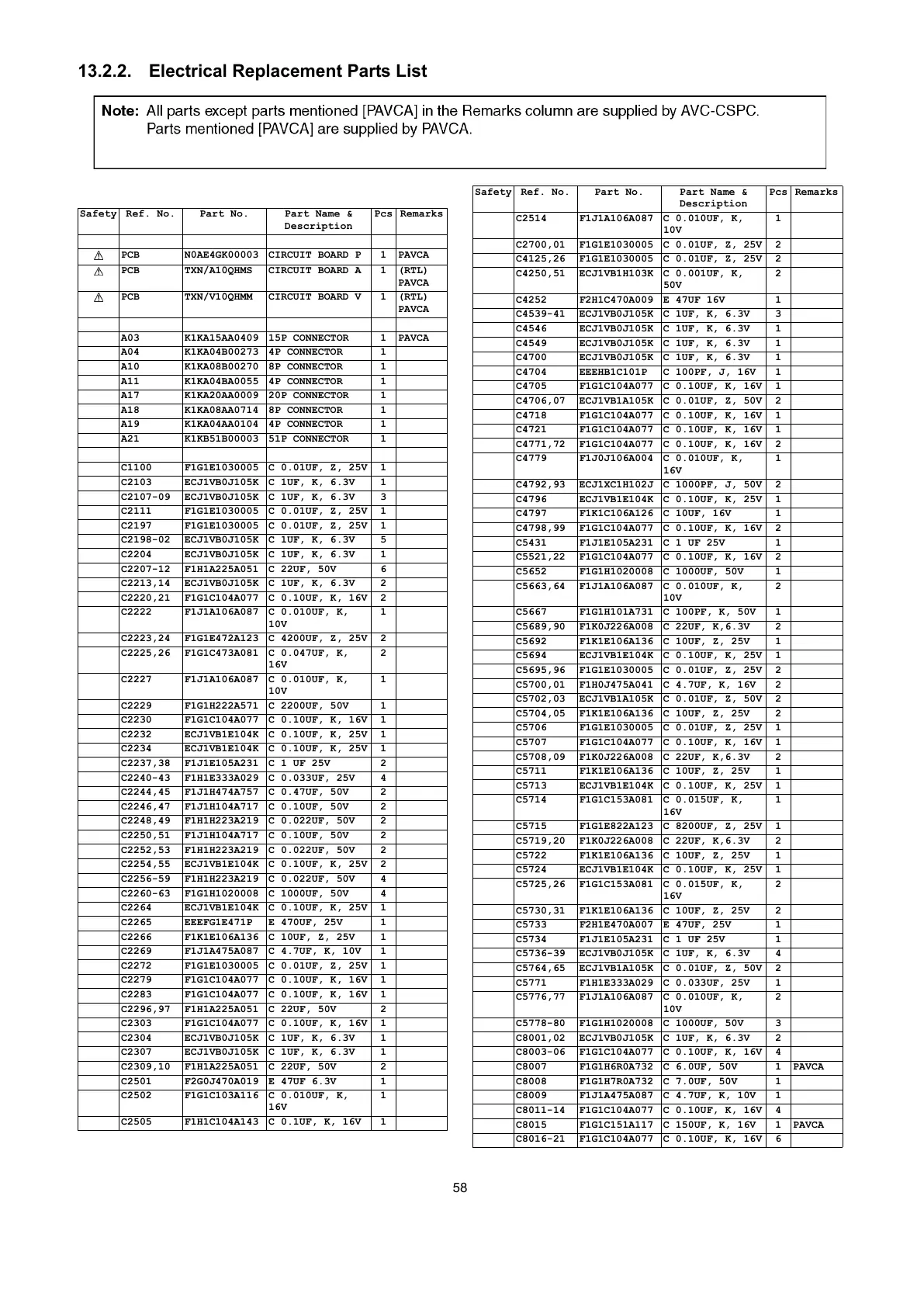

13.2.2. Electrical Replacement Parts List
Safety Ref. No. Part No. Part Name &
Description
Pcs Remarks
PCB N0AE4GK00003 CIRCUIT BOARD P 1 PAVCA
PCB TXN/A10QHMS CIRCUIT BOARD A 1 (RTL)
PAVCA
PCB TXN/V10QHMM CIRCUIT BOARD V 1 (RTL)
PAVCA
A03 K1KA15AA0409 15P CONNECTOR 1 PAVCA
A04 K1KA04B00273 4P CONNECTOR 1
A10 K1KA08B00270 8P CONNECTOR 1
A11 K1KA04BA0055 4P CONNECTOR 1
A17 K1KA20AA0009 20P CONNECTOR 1
A18 K1KA08AA0714 8P CONNECTOR 1
A19 K1KA04AA0104 4P CONNECTOR 1
A21 K1KB51B00003 51P CONNECTOR 1
C1100 F1G1E1030005 C 0.01UF, Z, 25V 1
C2103 ECJ1VB0J105K C 1UF, K, 6.3V 1
C2107-09 ECJ1VB0J105K C 1UF, K, 6.3V 3
C2111 F1G1E1030005 C 0.01UF, Z, 25V 1
C2197 F1G1E1030005 C 0.01UF, Z, 25V 1
C2198-02 ECJ1VB0J105K C 1UF, K, 6.3V 5
C2204 ECJ1VB0J105K C 1UF, K, 6.3V 1
C2207-12 F1H1A225A051 C 22UF, 50V 6
C2213,14 ECJ1VB0J105K C 1UF, K, 6.3V 2
C2220,21 F1G1C104A077 C 0.10UF, K, 16V 2
C2222 F1J1A106A087 C 0.010UF, K,
10V
1
C2223,24 F1G1E472A123 C 4200UF, Z, 25V 2
C2225,26 F1G1C473A081 C 0.047UF, K,
16V
2
C2227 F1J1A106A087 C 0.010UF, K,
10V
1
C2229 F1G1H222A571 C 2200UF, 50V 1
C2230 F1G1C104A077 C 0.10UF, K, 16V 1
C2232 ECJ1VB1E104K C 0.10UF, K, 25V 1
C2234 ECJ1VB1E104K C 0.10UF, K, 25V 1
C2237,38 F1J1E105A231 C 1 UF 25V 2
C2240-43 F1H1E333A029 C 0.033UF, 25V 4
C2244,45 F1J1H474A757 C 0.47UF, 50V 2
C2246,47 F1J1H104A717 C 0.10UF, 50V 2
C2248,49 F1H1H223A219 C 0.022UF, 50V 2
C2250,51 F1J1H104A717 C 0.10UF, 50V 2
C2252,53 F1H1H223A219 C 0.022UF, 50V 2
C2254,55 ECJ1VB1E104K C 0.10UF, K, 25V 2
C2256-59 F1H1H223A219 C 0.022UF, 50V 4
C2260-63 F1G1H1020008 C 1000UF, 50V 4
C2264 ECJ1VB1E104K C 0.10UF, K, 25V 1
C2265 EEEFG1E471P E 470UF, 25V 1
C2266 F1K1E106A136 C 10UF, Z, 25V 1
C2269 F1J1A475A087 C 4.7UF, K, 10V 1
C2272 F1G1E1030005 C 0.01UF, Z, 25V 1
C2279 F1G1C104A077 C 0.10UF, K, 16V 1
C2283 F1G1C104A077 C 0.10UF, K, 16V 1
C2296,97 F1H1A225A051 C 22UF, 50V 2
C2303 F1G1C104A077 C 0.10UF, K, 16V 1
C2304 ECJ1VB0J105K C 1UF, K, 6.3V 1
C2307 ECJ1VB0J105K C 1UF, K, 6.3V 1
C2309,10 F1H1A225A051 C 22UF, 50V 2
C2501 F2G0J470A019 E 47UF 6.3V 1
C2502 F1G1C103A116 C 0.010UF, K,
16V
1
C2505 F1H1C104A143 C 0.1UF, K, 16V 1
C2514 F1J1A106A087 C 0.010UF, K,
10V
1
C2700,01 F1G1E1030005 C 0.01UF, Z, 25V 2
C4125,26 F1G1E1030005 C 0.01UF, Z, 25V 2
C4250,51 ECJ1VB1H103K C 0.001UF, K,
50V
2
C4252 F2H1C470A009 E 47UF 16V 1
C4539-41 ECJ1VB0J105K C 1UF, K, 6.3V 3
C4546 ECJ1VB0J105K C 1UF, K, 6.3V 1
C4549 ECJ1VB0J105K C 1UF, K, 6.3V 1
C4700 ECJ1VB0J105K C 1UF, K, 6.3V 1
C4704 EEEHB1C101P C 100PF, J, 16V 1
C4705 F1G1C104A077 C 0.10UF, K, 16V 1
C4706,07 ECJ1VB1A105K C 0.01UF, Z, 50V 2
C4718 F1G1C104A077 C 0.10UF, K, 16V 1
C4721 F1G1C104A077 C 0.10UF, K, 16V 1
C4771,72 F1G1C104A077 C 0.10UF, K, 16V 2
C4779 F1J0J106A004 C 0.010UF, K,
16V
1
C4792,93 ECJ1XC1H102J C 1000PF, J, 50V 2
C4796 ECJ1VB1E104K C 0.10UF, K, 25V 1
C4797 F1K1C106A126 C 10UF, 16V 1
C4798,99 F1G1C104A077 C 0.10UF, K, 16V 2
C5431 F1J1E105A231 C 1 UF 25V 1
C5521,22 F1G1C104A077 C 0.10UF, K, 16V 2
C5652 F1G1H1020008 C 1000UF, 50V 1
C5663,64 F1J1A106A087 C 0.010UF, K,
10V
2
C5667 F1G1H101A731 C 100PF, K, 50V 1
C5689,90 F1K0J226A008 C 22UF, K,6.3V 2
C5692 F1K1E106A136 C 10UF, Z, 25V 1
C5694 ECJ1VB1E104K C 0.10UF, K, 25V 1
C5695,96 F1G1E1030005 C 0.01UF, Z, 25V 2
C5700,01 F1H0J475A041 C 4.7UF, K, 16V 2
C5702,03 ECJ1VB1A105K C 0.01UF, Z, 50V 2
C5704,05 F1K1E106A136 C 10UF, Z, 25V 2
C5706 F1G1E1030005 C 0.01UF, Z, 25V 1
C5707 F1G1C104A077 C 0.10UF, K, 16V 1
C5708,09 F1K0J226A008 C 22UF, K,6.3V 2
C5711 F1K1E106A136 C 10UF, Z, 25V 1
C5713 ECJ1VB1E104K C 0.10UF, K, 25V 1
C5714 F1G1C153A081 C 0.015UF, K,
16V
1
C5715 F1G1E822A123 C 8200UF, Z, 25V 1
C5719,20 F1K0J226A008 C 22UF, K,6.3V 2
C5722 F1K1E106A136 C 10UF, Z, 25V 1
C5724 ECJ1VB1E104K C 0.10UF, K, 25V 1
C5725,26 F1G1C153A081 C 0.015UF, K,
16V
2
C5730,31 F1K1E106A136 C 10UF, Z, 25V 2
C5733 F2H1E470A007 E 47UF, 25V 1
C5734 F1J1E105A231 C 1 UF 25V 1
C5736-39 ECJ1VB0J105K C 1UF, K, 6.3V 4
C5764,65 ECJ1VB1A105K C 0.01UF, Z, 50V 2
C5771 F1H1E333A029 C 0.033UF, 25V 1
C5776,77 F1J1A106A087 C 0.010UF, K,
10V
2
C5778-80 F1G1H1020008 C 1000UF, 50V 3
C8001,02 ECJ1VB0J105K C 1UF, K, 6.3V 2
C8003-06 F1G1C104A077 C 0.10UF, K, 16V 4
C8007 F1G1H6R0A732 C 6.0UF, 50V 1 PAVCA
C8008 F1G1H7R0A732 C 7.0UF, 50V 1
C8009 F1J1A475A087 C 4.7UF, K, 10V 1
C8011-14 F1G1C104A077 C 0.10UF, K, 16V 4
C8015 F1G1C151A117 C 150UF, K, 16V 1 PAVCA
C8016-21 F1G1C104A077 C 0.10UF, K, 16V 6
