SENSOR
ST-CH7L

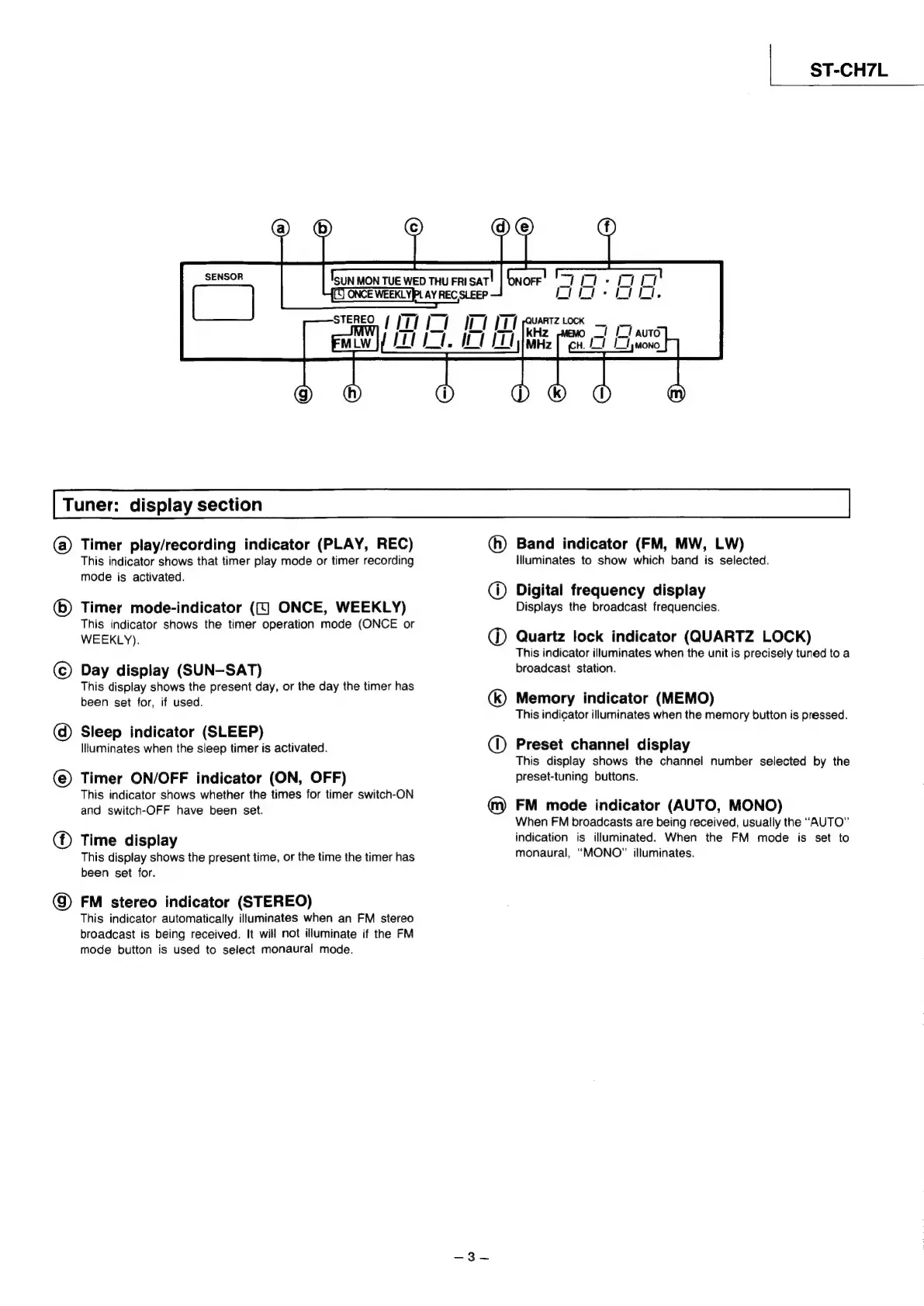

Tuner: display section
@
©
© 86 ® &® @®
Timer play/recording indicator (PLAY, REC)
This indicator shows that timer play mode or timer recording
mode is activated.
Timer mode-indicator (] ONCE, WEEKLY)
This indicator shows the timer operation mode (ONCE or
WEEKLY).
Day display (SUN—SAT)
This display shows the present day, or the day the timer has
been set for, if used.
Sleep indicator (SLEEP)
llluminates when the sleep timer is activated.
Timer ON/OFF indicator (ON, OFF)
This indicator shows whether the times for timer switch-ON
and switch-OFF have been set.
Time display
This display shows the present time, or the time the timer has
been set for.
FM stereo indicator (STEREO)
This indicator automatically illuminates when an FM stereo
broadcast is being received. It will not illuminate if the FM
mode button is used to select monaural mode.
®
® O08 8 O
Band indicator (FM, MW, LW)
Illuminates to show which band is selected.
Digital frequency display
Displays the broadcast frequencies.
Quartz lock indicator (QUARTZ LOCK)
This indicator illuminates when the unit is precisely tuned to a
broadcast station.
Memory indicator (MEMO)
This indicator illuminates when the memory button is pressed.
Preset channel display
This display shows the channel number selected by the
preset-tuning buttons.
FM mode indicator (AUTO, MONO)
When FM broadcasts are being received, usually the “AUTO”
indication is illuminated. When the FM mode is set to
monaural, “MONO” illuminates.
