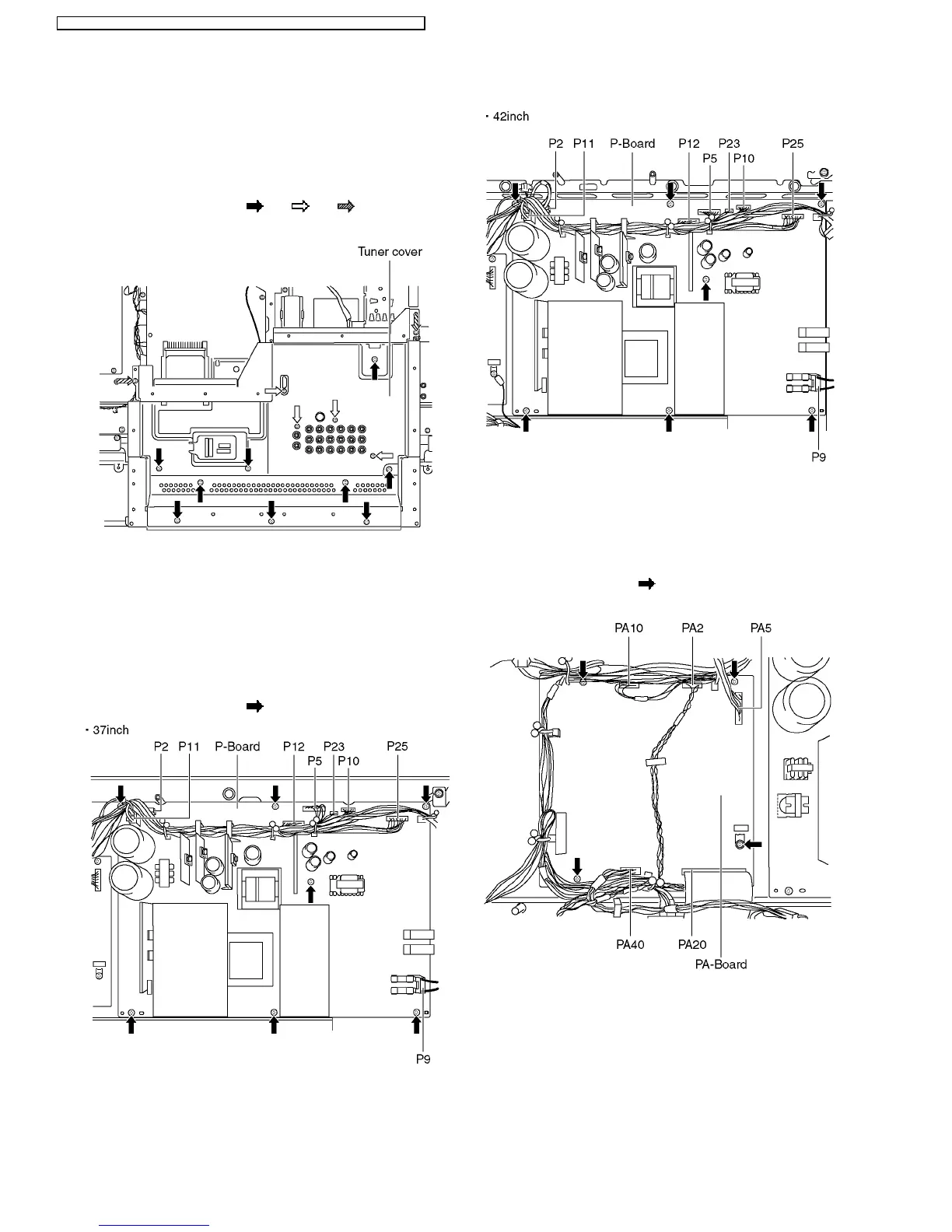

6.1. Remove the Back cover
1. See Service Hint (Section 5)
6.2. Remove the tuner cover
1. Remove the screws (×9 ,×7 ,×2 ).
2. Remove the tuner cover.
6.3. Remove the P-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for
discharge from electrolysis capacitors.
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (P2, P5, P9, P10, P11, P12, P23,
and P25).
3. Remove the screws (×7
) and remove the P-Board.
6.4. Remove the PA-Board
1. Unlock the cable clampers to free the cable.
2. Disconnect the couplers (PA2, PA5, PA10 and PA40).
3. Disconnect the flexible cable (PA20).
4. Remove the screws (×4
).
5. Remove the PA-Board.
6 Plasma panel replacement method
