6.9. Remove the HC-Board

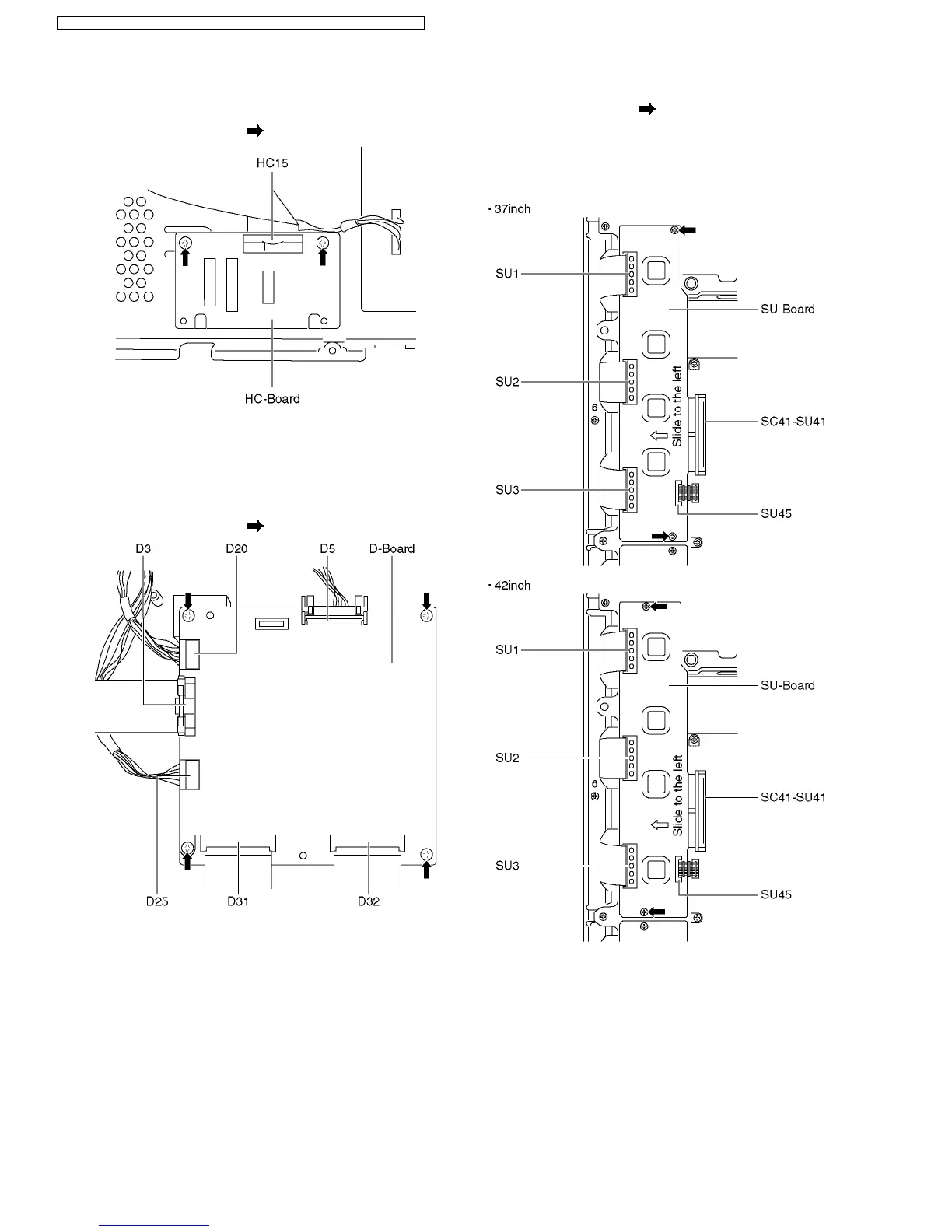

1. Disconnect the flexible cable (HC15).
2. Remove the screws (×2
) and remove the HC-Board.
6.10. Remove the D-Board
1. Remove the tuner unit. (See section 6.5.)
2. Disconnect the couplers (D5, D20 and D25).
3. Disconnect the flexible cables (D3, D31 and D32).
4. Remove the screws (×4
) and remove the D-Board.
6.11. Remove the SU-Board
1. Remove the screws (×2 ).
2. Remove the flexible cables (SU1, SU2 and SU3) and
remove the bridge connector (SU45).
3. Slide the SU-Board to the left to disconnect from a coupler
(SC41-SU41) on the SC-Board and remove the SU-Board.
