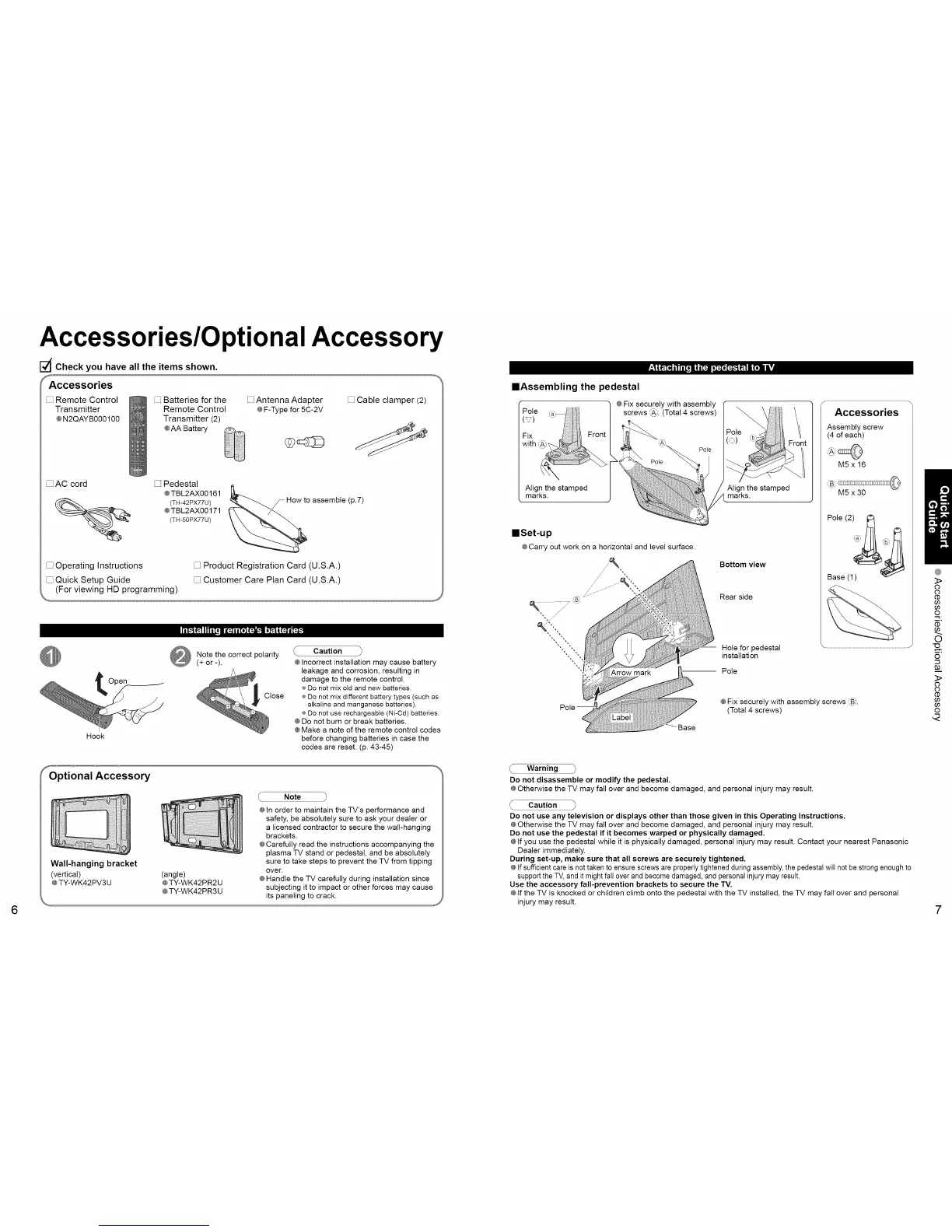

Accessories/Optional Accessory
[_ Check you have all the items shown.
Accessories
[] Remote Control
Transmitter
@N2QAYB000100
[] Batteries for the
Remote Control
Transmitter (2)
@AA Battery
[] Antenna Adapter
@F-Type for 5C-2V
[] Cable clamper (2)
[] AC cord [] Pedestal
@TBL2AX00161
(TH-42PX77U)
@TBL2AX00171
(TH-50PX77U)
==Assembling the pedestal
o assemble (p.7) ISet-up
[] Operating Instructions [] Product Registration Card (U.S.A.)
[] Quick Setup Guide [] Customer Care Plan Card (U.S.A.)
(For viewing HD programming)
Hook
Note the correct polarity
(+ or -).
i Close
@Incorrect installation may cause battery
leakage and corrosion, resulting in
damage to the remote control.
÷ Do not mix old and new batteries.
÷ Do not mix different battery types (such as
alkaline and manganese batteries).
÷ Do not use rechargeable (Ni-Cd) batteries.
@Do not burn or break batteries.
@Make a note of the remote control codes
before changing batteries in case the
codes are reset. (p. 43-45)
@Fix securely with assembly
screws _A_'.(Total 4 screws)
Pole
@Carry out work on a horizontal and level surface.
/%,,
r
Pole
(o)
Align the stam
marks.
Bottom view
Rear side
Hole for pedestal
installation
Pole
Accessories
Assembly screw
(4 of each)
M5x 16
M5 x 30
Pole (2)a_ _
'_1__ i_ -,
Base (1)
@Fix securely with assembly screws _B_.
(Total 4 screws)
3>
O
O
G)
03
03
0
CD
GO
©
o
co
3>
0
o
6
Optional Accessory
Note
Wall-hanging bracket
(vertical)
@TY-WK42PV3U
(angle)
@TY-WK42PR2U
@TY-WK42PR3U
@In order to maintain the TV's performance and
safety, be absolutely sure to ask your dealer or
a licensed contractor to secure the wall-hanging
brackets.
@Carefully read the instructions accompanying the
plasma TV stand or pedestal, and be absolutely
sure to take steps to prevent the TV from tipping
over.
@Handle the TV carefully during installation since
subjecting it to impact or other forces may cause
its paneling to crack.
Warning __
Do not disassemble or modify the pedestal.
@Otherwise the TV may fall over and become damaged, and personal injury may result.
Caution
Do not use any television or displays other than those given in this Operating Instructions.
@Otherwise the TV may fall over and become damaged, and personal injury may result.
Do not use the pedestal if it becomes warped or physically damaged.
@If you use the pedestal while it is physically damaged, personal injury may result. Contact your nearest Panasonic
Dealer immediately.
During set-up, make sure that all screws are securely tightened.
@If sufficient care is nottaken to ensure screws are properly tightened during assembly, the pedestal will not be strong enough to
support the TV, and it might fall over and become damaged, and personal injury may result.
Use the accessory fall-prevention brackets to secure the TV.
@If the TV is knocked or children climb onto the pedestal with the TV installed, the TV may fall over and personal
injury may result.
7
