Video equipment connection
10

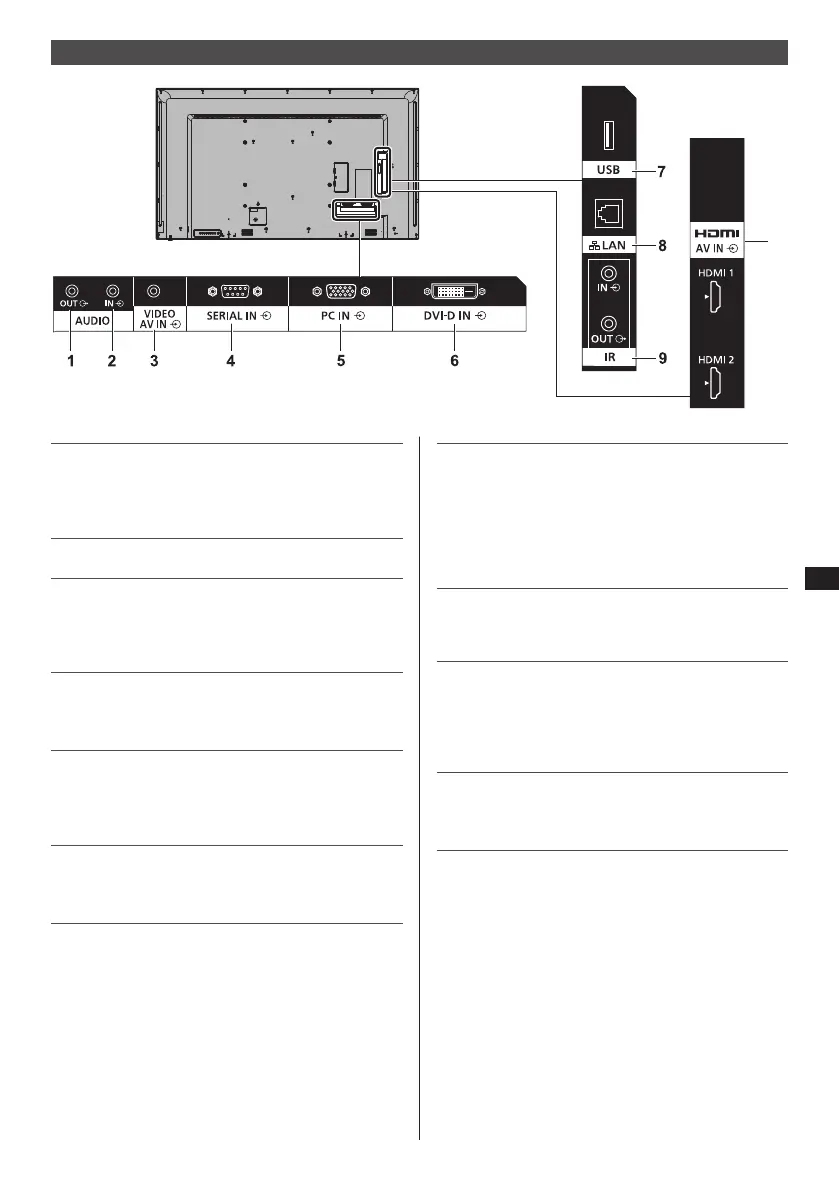

1 AUDIO OUT: Analogue Audio Output
Terminal
Connect to audio equipment with
analogue audio input terminal.
2 AUDIO IN: Analogue Audio Input Terminal
3 AV IN
(VIDEO):
Composite Video / Audio Input
Terminal
Connect to video equipment with
Composite signal output.
4 SERIAL IN: SERIAL Input Terminal
Control the Display by connecting
to PC.
5 PC IN: PC Input Terminal
Connect to video terminal of PC,
video equipment with “YP
BPR /
YCBCR” or “RGB” output.
6 DVI-D IN: DVI-D Input Terminal
Connect to video equipment with
DVI-D output.
7 USB: USB Terminal
Connect the USB memory to use
“USB media player” or “Memory
viewer”. Also, this can be used to
supply power of up to 5V/2A to an
external device when the picture
is displayed.
8 LAN: LAN Terminal
Control the Display by connecting
to Network.
9 IR IN, IR OUT: Infrared Signal Input / Output
Terminal
Use this when operating more
than one display with one remote
control.
10 AV IN
(HDMI 1,
HDMI 2):
HDMI Input Terminal
Connect to video equipment such
as VCR or DVD player, etc.
