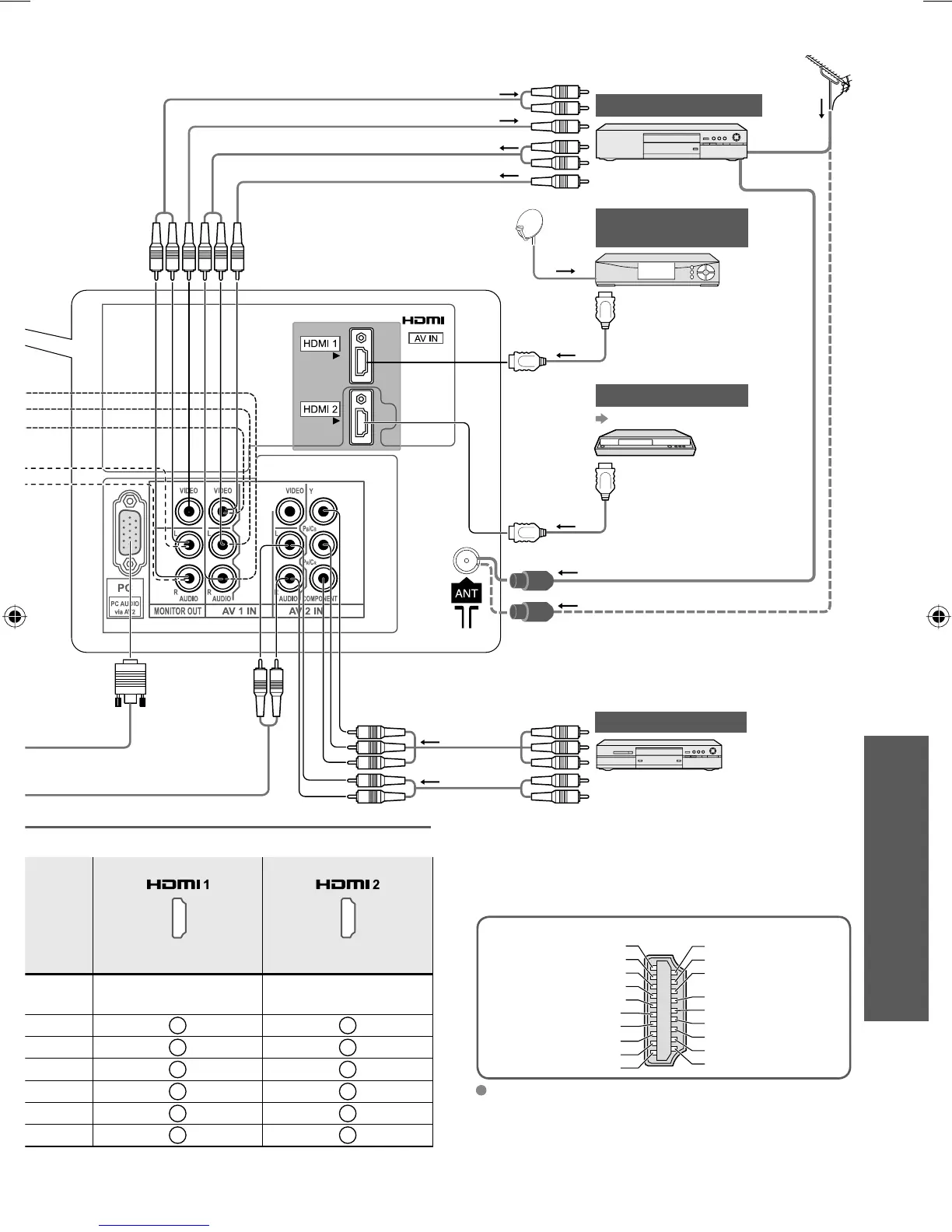

Panasonic TH-L32C10

“HDMI connection” (p. 33)
Satellite dish
Satellite cable
*4
41
Advanced
(Viewing)
(Listening)
Set top box
DVD Recorder / VCR
RF cable
To watch satellite
broadcasts
To record / playback
To watch DVDs
DVD player
Fully wired HDMI
compliant cable
or
Hot Plug Detect 19
DDC/CEC Ground 17
SCL 15
CEC 13
TMDS Clock Shield 11
TMDS Data0– 9
TMDS Data0+ 7
TMDS Data1 Shield 5
TMDS Data2– 3
TMDS Data2+ 1
18 +5V Power
16 SDA
14 Reserved
(in cable but N.C. on device)
12 TMDS Clock–
10 TMDS Clock+
8 TMDS Data0 Shield
6 TMDS Data1–
4 TMDS Data1+
2 TMDS Data2 Shield
HDMI terminal
Connect the COMPONENT or VIDEO terminal
when using AV2 IN terminals.
*4) For TH-L32C12K, only HDMI1 terminal is
available.
HDMI equipment
DVD Recorder
Fully wired HDMI
compliant cable
External Equipment
