TH-L32C53T

44

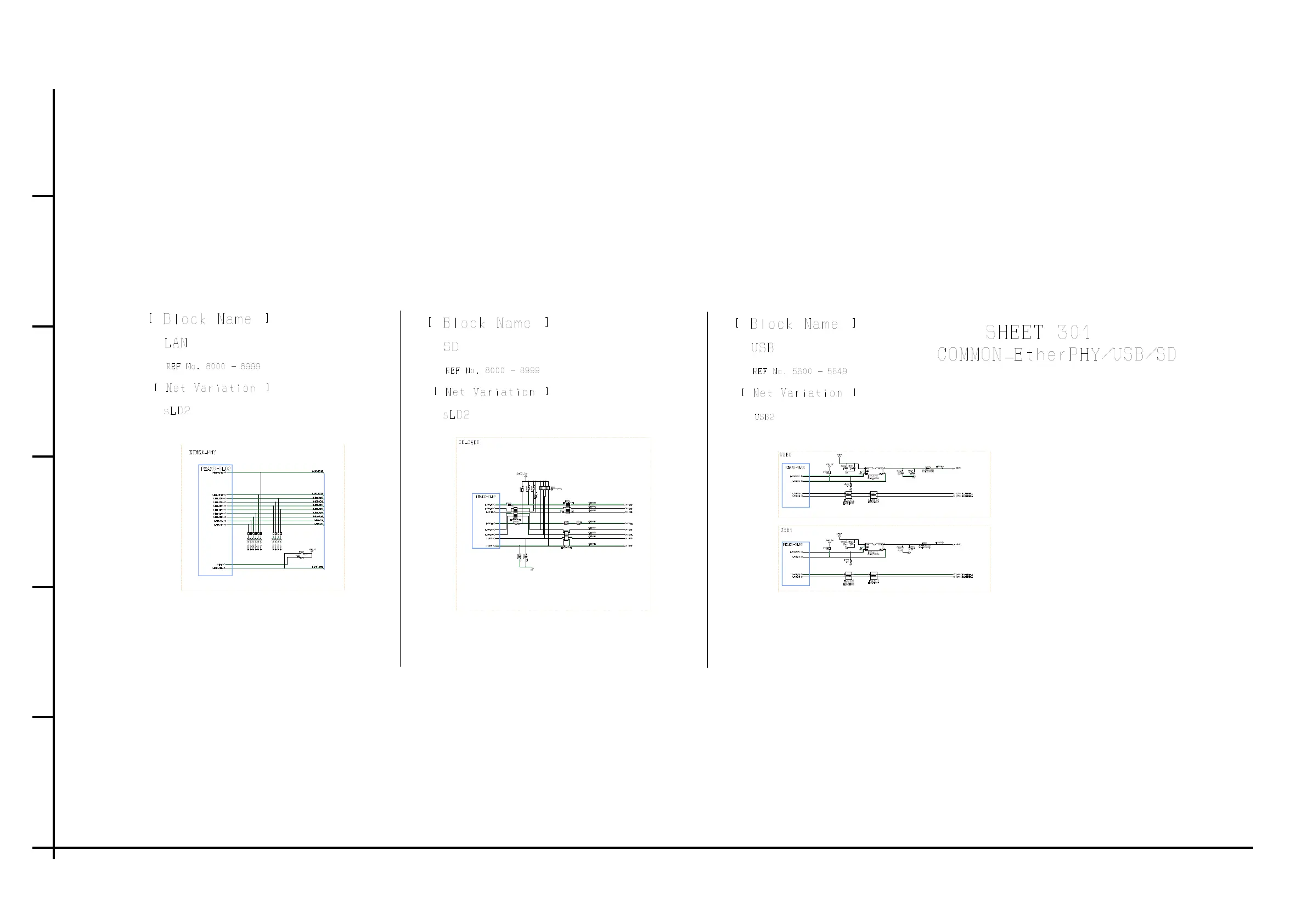

11.11. A-Board (10/16) Schematic Diagram

6

5

4

3

2

1

ABCDEFGH I

Table of Contents

ORDER NO. MTV1207163CE1
- LCD TV1
- Model No. TH-L32C53T1
1 Safety Precautions3
- 1.1. General Guidelines3
  - 1.1.1. Leakage Current Cold Check3
  - 1.1.2. Leakage Current Hot Check (See Figure 1.)3
2 Warning4
- 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices4
- 2.2. About lead free solder (PbF)5
3 Service Navigation6
- 3.1. Service Hint6
4 Specifications7
5 Service Mode9
- 5.1. How to enter into Service Mode9
  - 5.1.1. Contents of adjustment mode9
  - 5.1.2. How to exit9
- 5.2. SRV-TOOL10
6 Troubleshooting Guide12
7 Disassembly and Assembly Instructions14
8 Measurements and Adjustments30
10 Wiring Connection Diagram32
- 10.1. Wire Dressing32
13 Exploded View and Replacement Parts List59
- 13.1. Exploded View and Mechanical Replacement Parts List59
- 13.2. Electrical Replacement Parts List59
  - 13.2.1. Replacement Parts List Notes59
  - 13.2.2. Electrical Replacement Parts List60
