Panasonic TH-L32C53T

TH-L32C53T
14
7 Disassembly and Assembly Instructions

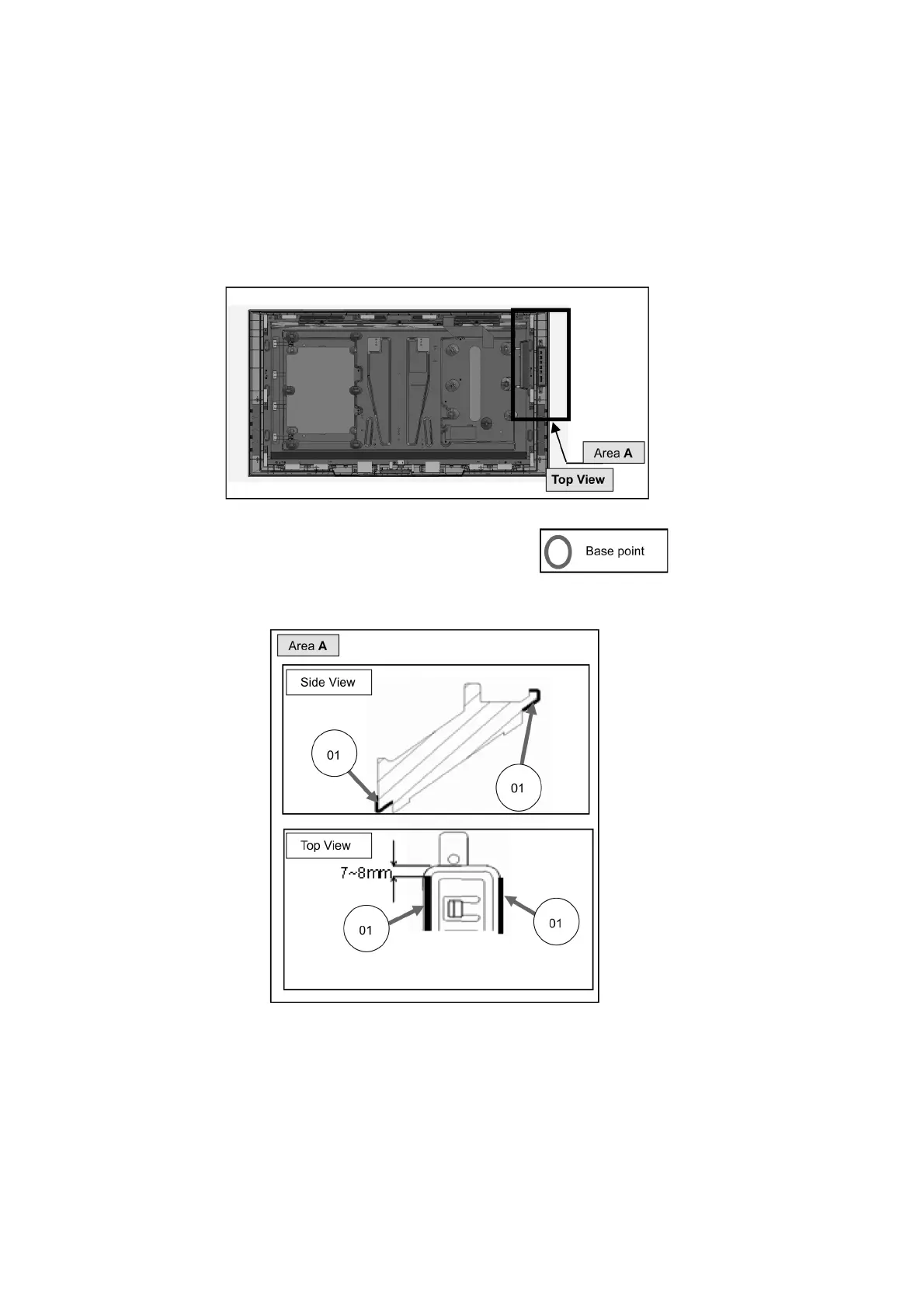

7.1. Control Button Assembly
1. Fix the 2 felt to the control button assembly (Area A).
2. Fix the control button into the GK-board.
3. Fix 2 screw at the GK-board.
4. Fix the board into the right side of the cabinet.
5. Fix the CONTROL KEY SHEET to CONTROL BUTTON ASSEMBLY.
6. Then fix the CONTROL BUTTON ASSEMBLY into the cabinet.
