TH-L32X50Z
18
7.5. LED Panel Assembly

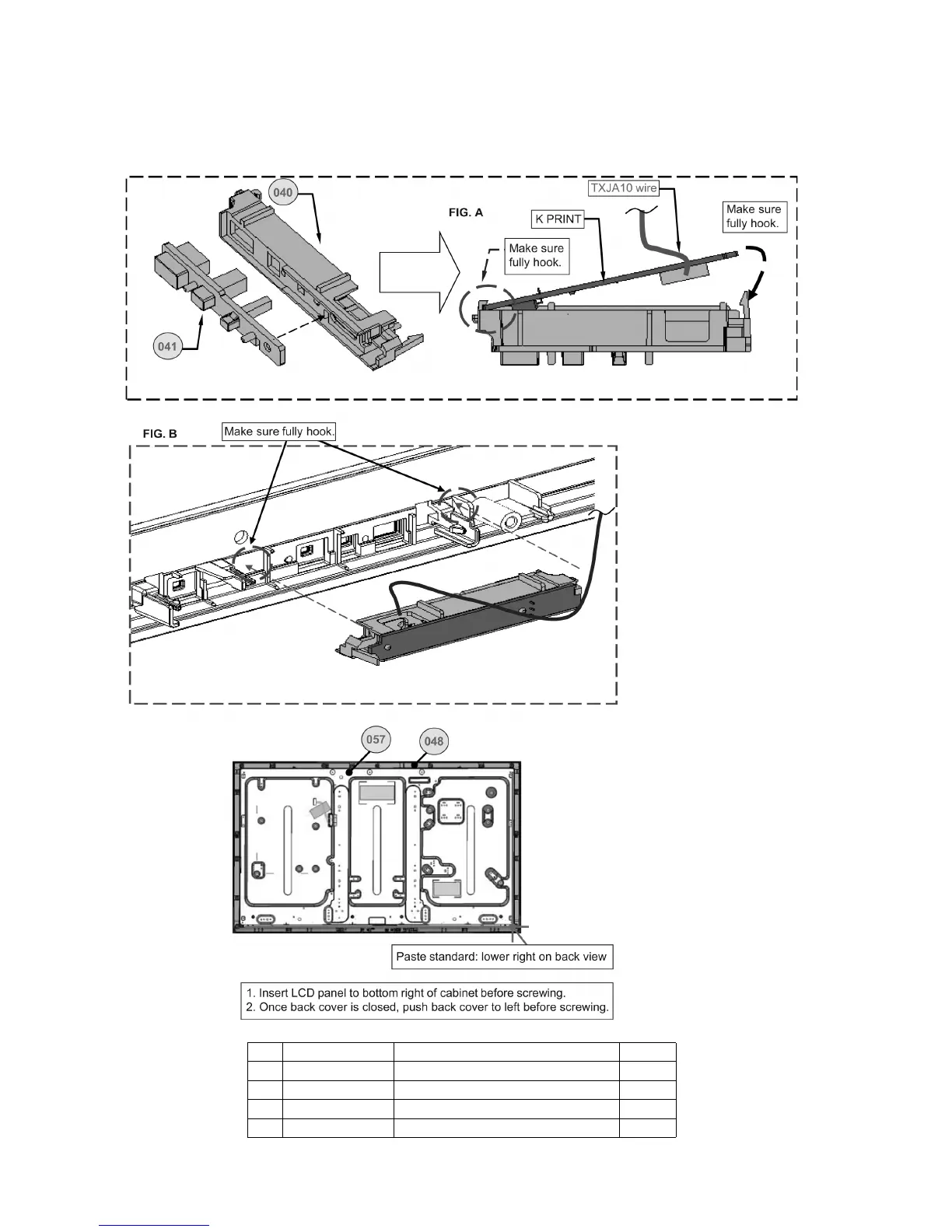

1. Prepare LED panel Assy (Fig. A).
2. Fix LED panel assy to Cabinet complete assy (Fig. B).
3. Fix LCD panel to Cabinet assy (Fig. C).
No Item Description Qty
041 TKK5ZC50201 LED PANEL 1 PC
040 TKK5ZC50141 LED PANEL BRACKET 1 PC
057 VVX32H125G00 LCD PANEL 1 PC
048 TTY4GA0261 CABINET COMPLETE ASS’Y 1 PC
To Next Page
