8 Disassembly and Assembly Instructions

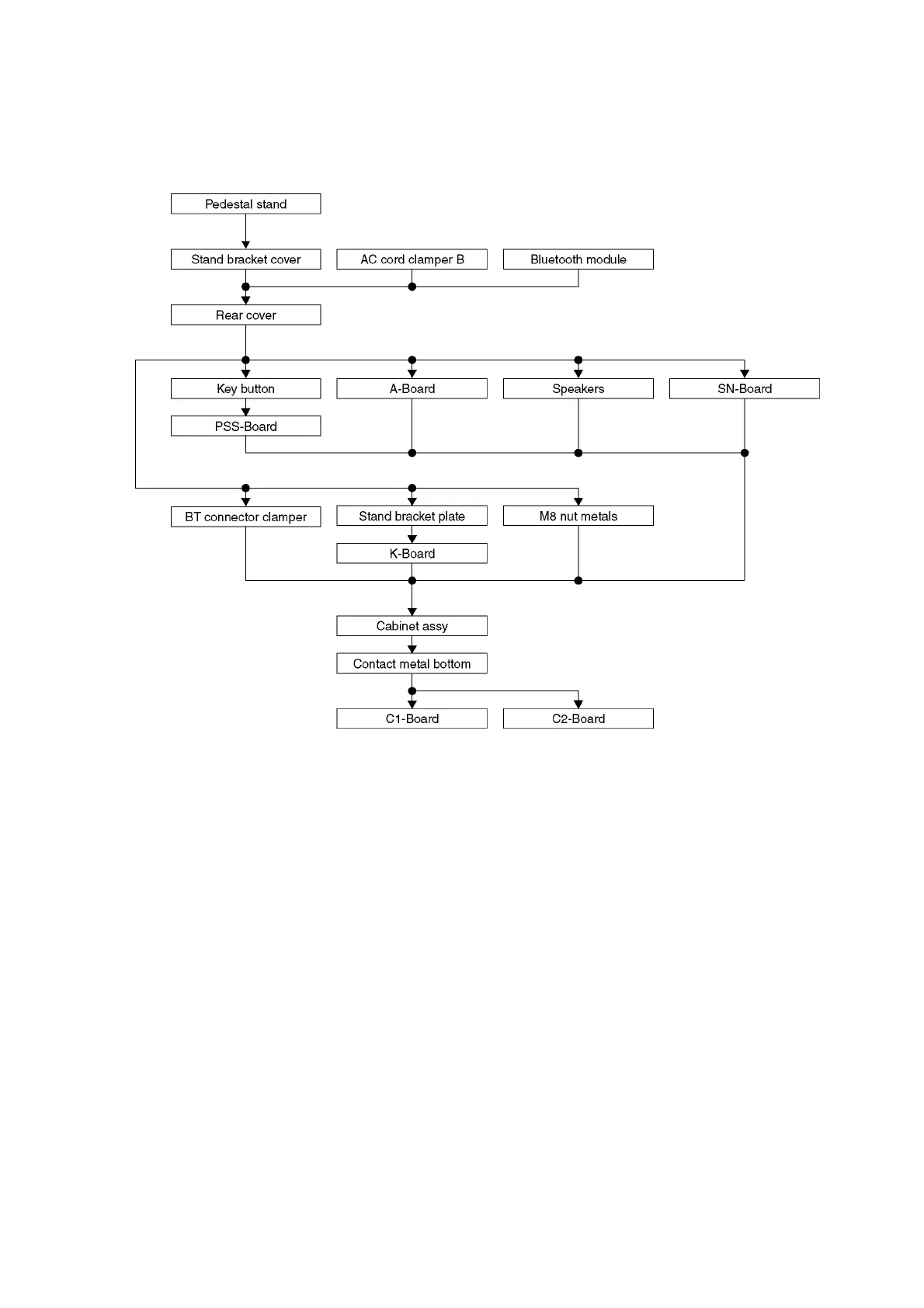

8.1. Disassembly Flow Chart for the Unit
This is a disassembly chart.
When assembling, perform this chart conversely.
