Panasonic TX-25MK1P - Page 25

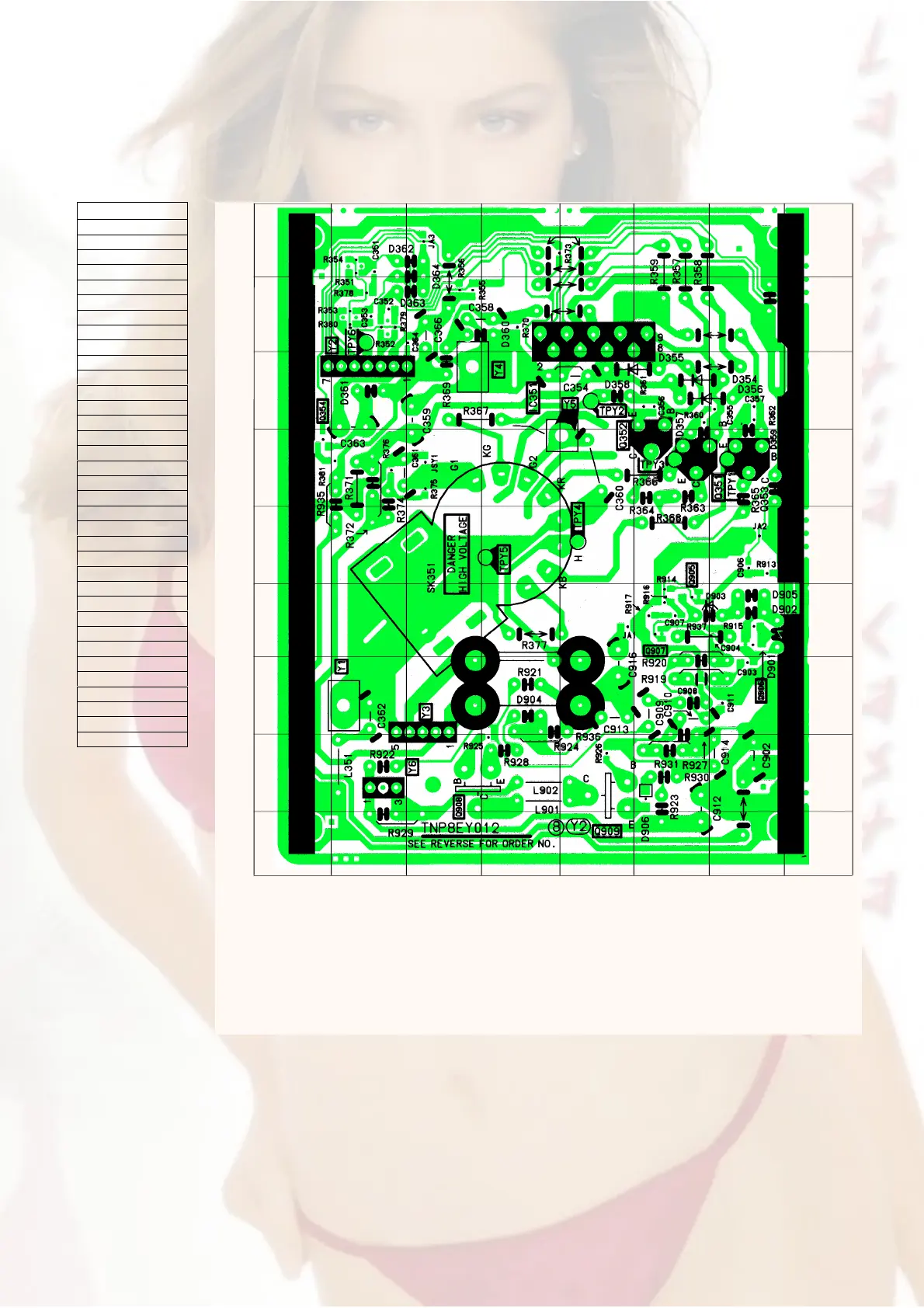

Y - BOARD TNP8EY012
TRANSISTORS
Q909 E1
Q908 C2
Q907 F4
Q906 G3
Q905 F5
Q354 A7
Q353 G6
Q352 F6
Q351 F6
DIODES
D906 F1
D905 G4
D904 D3
D902 G4
D901 G3
D364 C9
D363 C8
D362 B9
D361 B7
D360 D8
D359 G6
D358 E7
D357 F7
D356 G7
D355 F7
D354 G7
TEST POINTS
TPY6 B8
TPY5 D5
TPY4 E5
TPY3 F6
TPY2 E7
TPY1 G6
IC’S
IC351 E8
24
HGFEDCBA
1
2
3
4
5
6
7
8
9
