ORDER NO. SM-96059
Service Manual

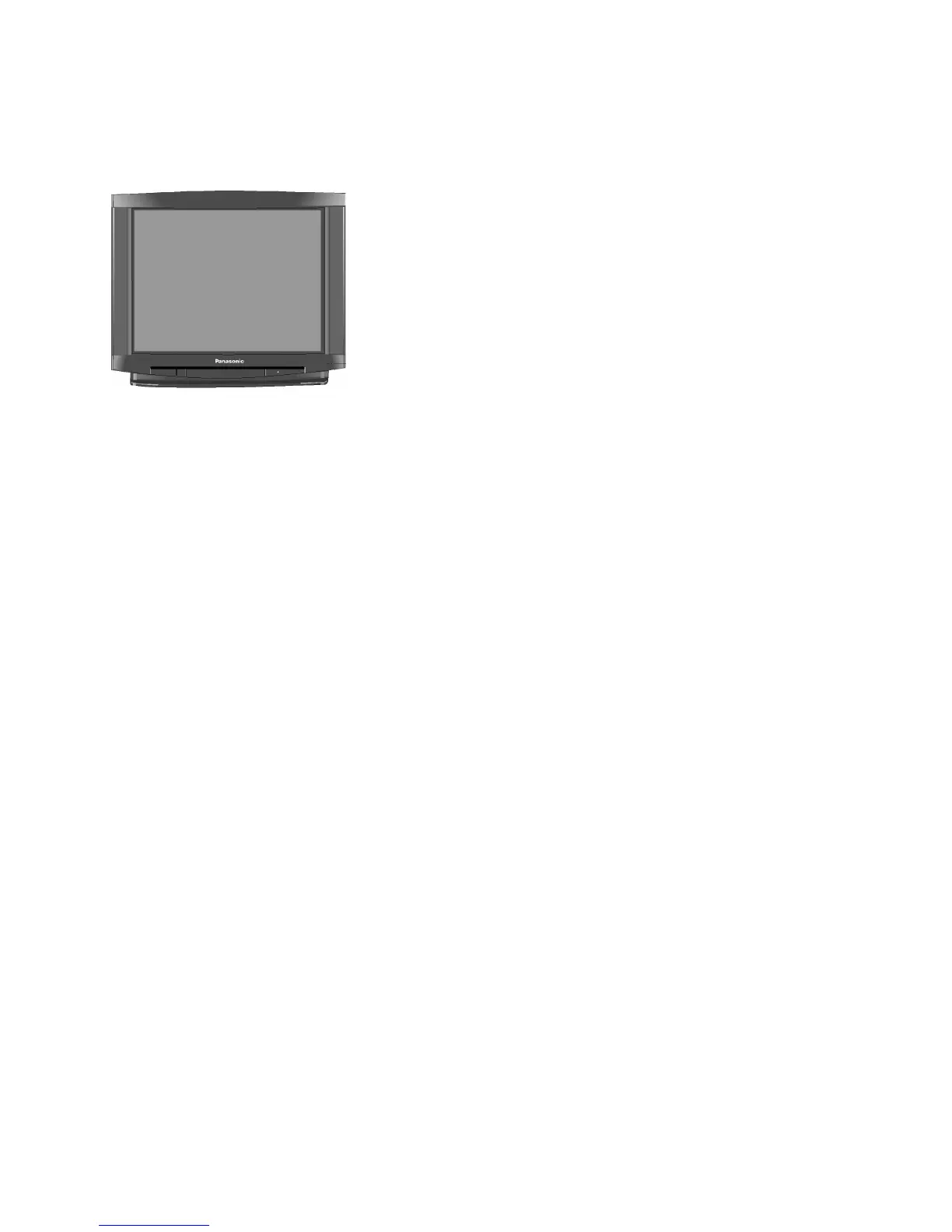

Colour Television
TX-29AD50F/P
TX-25AD50F/P
EURO-3H Chassis
Specifications
(Information in brackets { } refers to TX-25AD50F/P)
Power Source : 220 - 240 V AC, 50Hz
Power Consumption : 159W {149W}
Aerial Impedance : 75W unbalanced, Coaxial Type
Receiving System : PAL B/G, D/K, I, H, PAL - 60
SECAM B/G, D/K, L/L'
M.NTSC, NTSC (AV Only)
Receiving Channels : VHF E2 - E12
VHF H1 - H2 (ITALY)
VHF A - H (ITALY)
VHF R1 - R2
VHF R3 - R5
VHF R6 - R12
UHF E21 - E69
CATV (S01 - S05)
CATV S1 - S10 (M1 - M10)
CATV S11 - S20 (U1 - U10)
CATV S21 - S41 (HYPERBAND)
Intermediate Frequency :
Video 38.9MHz,34MHz
Sound 32.9MHz,33.4MHz
33.16MHz,32.4MHz
40.4MHz,34.05MHz,33.05MHz
Colour 34.65MHz,34.47MHz,34.5MHz
Video / AudioTerminals
AUDIO MONITOR OUT Audio (RCA x 2) 500 mV rms 1kW
AV1 IN Video (21 pin ) 1 Vp-p 75W
Audio (21 pin ) 500 mV rms 10kW
RGB (21 pin )
AV1 OUT Video (21 pin ) 1 Vp-p 75W
Audio (21 pin ) 500 mV rms 1kW
AV2 IN Video (21 pin ) 1 Vp-p 75W
Audio (21 pin ) 500 mV rms 10 kW
S-Video IN Y : 1 Vp-p 75W
(21 pin ) C : 0.3 Vp-p 75W
AV2 OUT Video (21 pin ) 1 Vp-p 75W
Audio (21 pin ) 500 mV rms 1kW
Selectable output (21 pin )
AV3 IN S-Video IN Y : 1 Vp-p 75W
(4-pin ) C : 0.3 Vp-p 75W
Audio (RCA x 2) 500 mV rms 10kW
Video (RCA x 1) 1 Vp-p 75W
High Voltage : 30.5 kV "1kV at zero beam current
Picture Tube : A68ESF002X43 72 cm
{A59ESF002X43 63 cm}
110_ deflection
Audio Output :
Internal Speaker 2 x 20W (Left/Right)(Music Power)
25W (3D Bass)(Music Power)
8 W Impedance
Headphones 8 W Impedance
Accessories supplied : Remote Control
2 x R6 (UM3) Batteries
Dimensions :
Height : 570mm {510mm}
Width : 698mm {625mm}
Depth : 483mm {468mm}
Net Weight 37kg {31kg}
Specifications are subject to change without notice.
Weight and dimensions shown are approximate.
