Panasonic TX-29PS11D - Replacement Parts List

Components Identified by mark have special characteristics important for safety.
* When replacing any of these components, use only manufacturers specified parts.
In case of ordering these spare parts, please always add the complete Model-Type
number to your order.

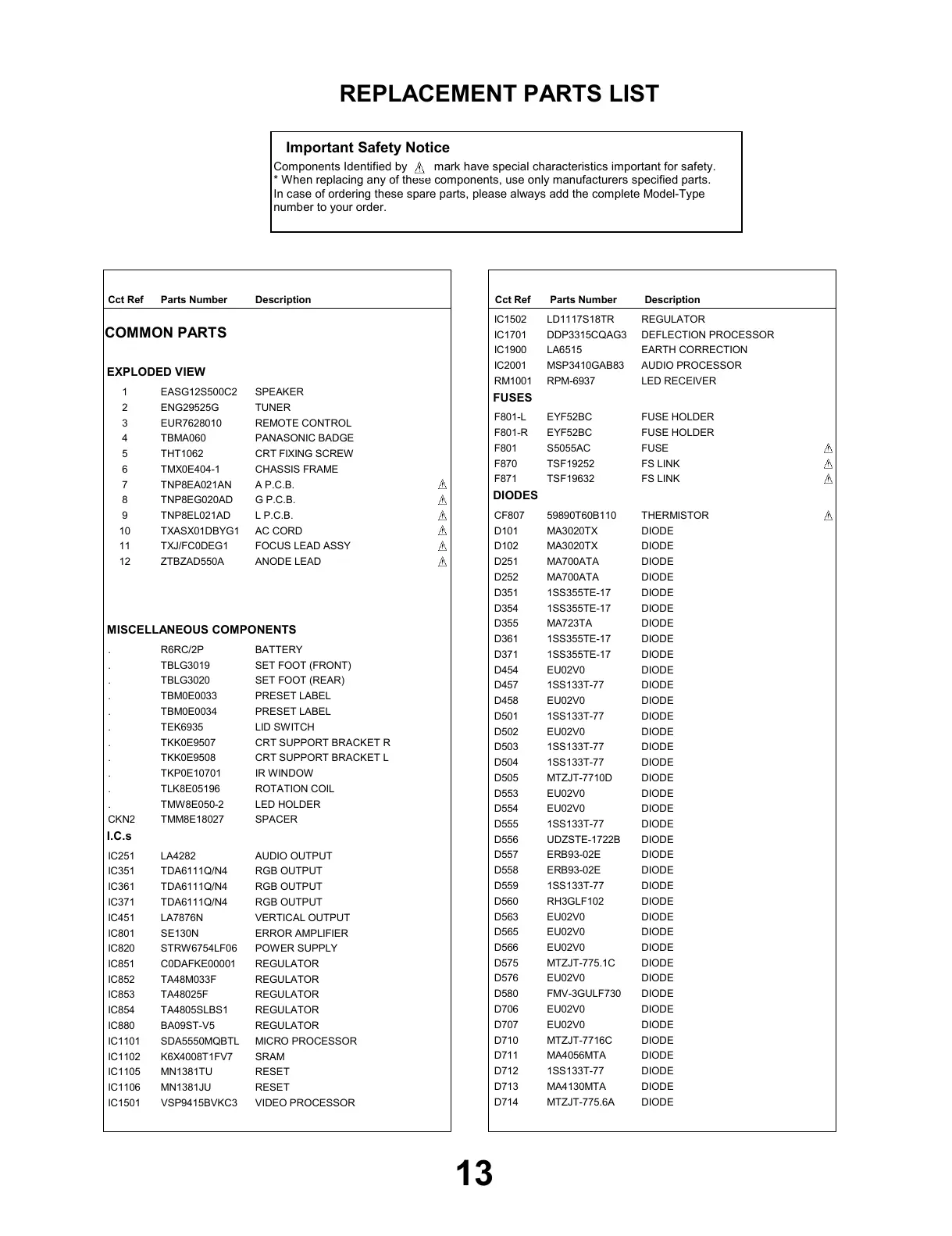

REPLACEMENT PARTS LIST
Important Safety Notice
DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
COMMON PARTS
EXPLODED VIEW
SPEAKER 1 EASG12S500C2
TUNER 2 ENG29525G
REMOTE CONTROL 3 EUR7628010
PANASONIC BADGE 4 TBMA060
CRT FIXING SCREW 5 THT1062
CHASSIS FRAME 6 TMX0E404-1
A P.C.B. 7 TNP8EA021AN
G P.C.B. 8 TNP8EG020AD
L P.C.B. 9 TNP8EL021AD
AC CORD 10 TXASX01DBYG1
FOCUS LEAD ASSY 11 TXJ/FC0DEG1
ANODE LEAD 12 ZTBZAD550A
MISCELLANEOUS COMPONENTS
BATTERY . R6RC/2P
SET FOOT (FRONT) . TBLG3019
SET FOOT (REAR) . TBLG3020
PRESET LABEL . TBM0E0033
PRESET LABEL . TBM0E0034
LID SWITCH . TEK6935
CRT SUPPORT BRACKET R. TKK0E9507
CRT SUPPORT BRACKET L. TKK0E9508
IR WINDOW . TKP0E10701
ROTATION COIL . TLK8E05196
LED HOLDER . TMW8E050-2
SPACER CKN2 TMM8E18027
I.C.s
AUDIO OUTPUT IC251 LA4282
RGB OUTPUT IC351 TDA6111Q/N4
RGB OUTPUT IC361 TDA6111Q/N4
RGB OUTPUT IC371 TDA6111Q/N4
VERTICAL OUTPUT IC451 LA7876N
ERROR AMPLIFIER IC801 SE130N
POWER SUPPLY IC820 STRW6754LF06
REGULATOR IC851 C0DAFKE00001
REGULATOR IC852 TA48M033F
REGULATOR IC853 TA48025F
REGULATOR IC854 TA4805SLBS1
REGULATOR IC880 BA09ST-V5
MICRO PROCESSOR IC1101 SDA5550MQBTL
SRAM IC1102 K6X4008T1FV7
RESET IC1105 MN1381TU
RESET IC1106 MN1381JU
VIDEO PROCESSOR IC1501 VSP9415BVKC3
REGULATOR IC1502 LD1117S18TR
DEFLECTION PROCESSORIC1701 DDP3315CQAG3
EARTH CORRECTION IC1900 LA6515
AUDIO PROCESSOR IC2001 MSP3410GAB83
LED RECEIVER RM1001 RPM-6937
FUSES
FUSE HOLDERF801-L EYF52BC
FUSE HOLDERF801-R EYF52BC
FUSE F801 S5055AC
FS LINK F870 TSF19252
FS LINK F871 TSF19632
DIODES
THERMISTOR CF807 59890T60B110
DIODE D101 MA3020TX
DIODE D102 MA3020TX
DIODE D251 MA700ATA
DIODE D252 MA700ATA
DIODED351 1SS355TE-17
DIODED354 1SS355TE-17
DIODE D355 MA723TA
DIODED361 1SS355TE-17
DIODED371 1SS355TE-17
DIODE D454 EU02V0
DIODE D457 1SS133T-77
DIODE D458 EU02V0
DIODE D501 1SS133T-77
DIODE D502 EU02V0
DIODE D503 1SS133T-77
DIODE D504 1SS133T-77
DIODE D505 MTZJT-7710D
DIODE D553 EU02V0
DIODE D554 EU02V0
DIODE D555 1SS133T-77
DIODE D556 UDZSTE-1722B
DIODE D557 ERB93-02E
DIODE D558 ERB93-02E
DIODE D559 1SS133T-77
DIODE D560 RH3GLF102
DIODE D563 EU02V0
DIODE D565 EU02V0
DIODE D566 EU02V0
DIODE D575 MTZJT-775.1C
DIODE D576 EU02V0
DIODE D580 FMV-3GULF730
DIODE D706 EU02V0
DIODE D707 EU02V0
DIODE D710 MTZJT-7716C
DIODE D711 MA4056MTA
DIODE D712 1SS133T-77
DIODE D713 MA4130MTA
DIODE D714 MTZJT-775.6A
13
