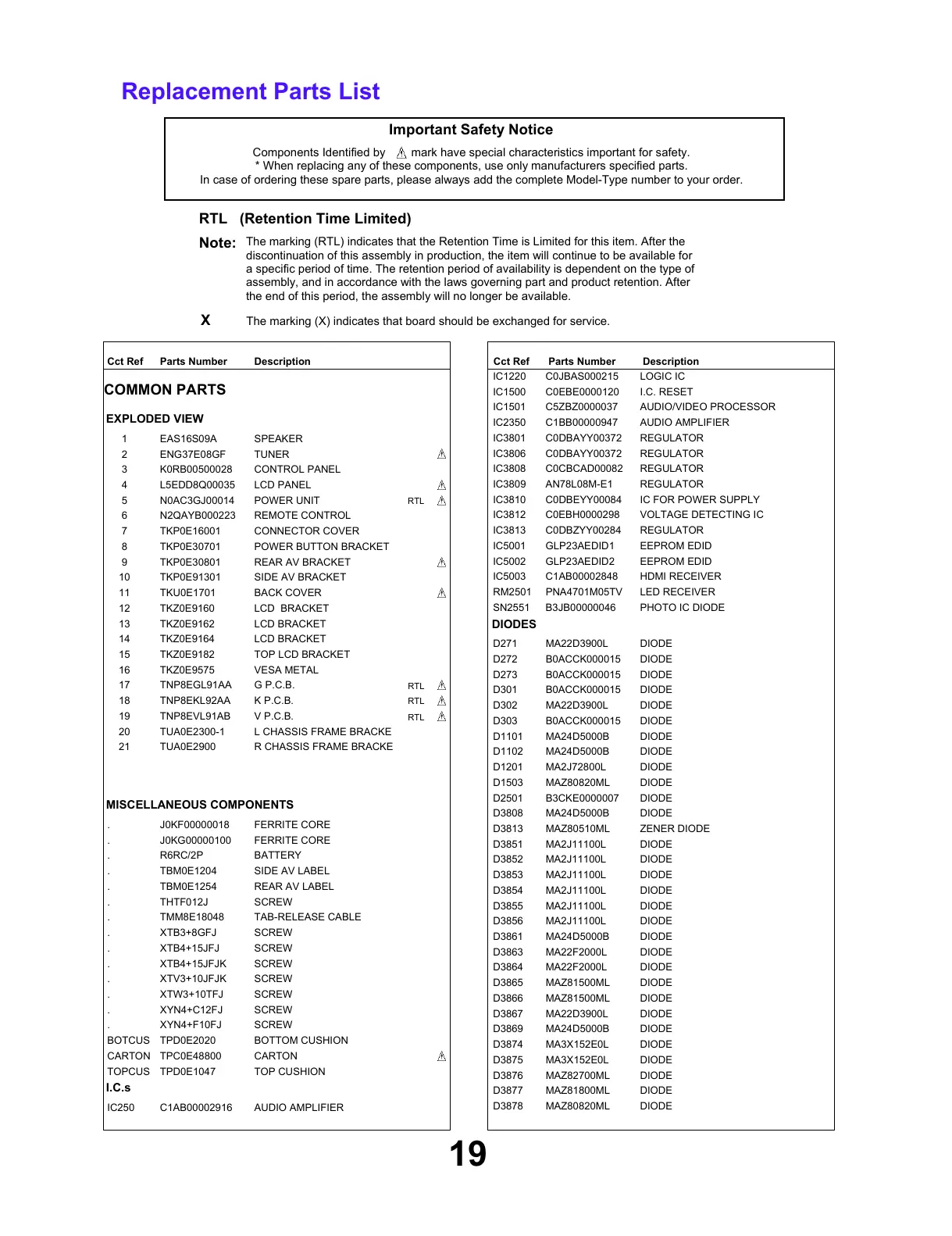

Panasonic TX-32LE8F - Replacement Parts List

Components Identified by mark have special characteristics important for safety.
* When replacing any of these components, use only manufacturers specified parts.
In case of ordering these spare parts, please always add the complete Model-Type number to your order.
Replacement Parts List
Important Safety Notice
The marking (RTL) indicates that the Retention Time is Limited for this item. After the
discontinuation of this assembly in production, the item will continue to be available for
a specific period of time. The retention period of availability is dependent on the type of
assembly, and in accordance with the laws governing part and product retention. After
the end of this period, the assembly will no longer be available.
RTL (Retention Time Limited)
Note:
X
The marking (X) indicates that board should be exchanged for service.
DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
COMMON PARTS
EXPLODED VIEW
SPEAKER 1 EAS16S09A
TUNER 2 ENG37E08GF
CONTROL PANEL 3 K0RB00500028
LCD PANEL 4 L5EDD8Q00035
POWER UNIT 5 N0AC3GJ00014
REMOTE CONTROL 6 N2QAYB000223
CONNECTOR COVER 7 TKP0E16001
POWER BUTTON BRACKET 8 TKP0E30701
REAR AV BRACKET 9 TKP0E30801
SIDE AV BRACKET 10 TKP0E91301
BACK COVER 11 TKU0E1701
LCD BRACKET 12 TKZ0E9160
LCD BRACKET 13 TKZ0E9162
LCD BRACKET 14 TKZ0E9164
TOP LCD BRACKET 15 TKZ0E9182
VESA METAL 16 TKZ0E9575
G P.C.B. 17 TNP8EGL91AA
K P.C.B. 18 TNP8EKL92AA
V P.C.B. 19 TNP8EVL91AB
L CHASSIS FRAME BRACKE 20 TUA0E2300-1
R CHASSIS FRAME BRACKE 21 TUA0E2900
MISCELLANEOUS COMPONENTS
FERRITE CORE . J0KF00000018
FERRITE CORE . J0KG00000100
BATTERY . R6RC/2P
SIDE AV LABEL . TBM0E1204
REAR AV LABEL . TBM0E1254
SCREW . THTF012J
TAB-RELEASE CABLE. TMM8E18048
SCREW . XTB3+8GFJ
SCREW . XTB4+15JFJ
SCREW . XTB4+15JFJK
SCREW . XTV3+10JFJK
SCREW . XTW3+10TFJ
SCREW . XYN4+C12FJ
SCREW . XYN4+F10FJ
BOTTOM CUSHION BOTCUS TPD0E2020
CARTON CARTON TPC0E48800
TOP CUSHION TOPCUS TPD0E1047
I.C.s
AUDIO AMPLIFIER IC250 C1AB00002916
LOGIC IC IC1220 C0JBAS000215
I.C. RESET IC1500 C0EBE0000120
AUDIO/VIDEO PROCESSORIC1501 C5ZBZ0000037
AUDIO AMPLIFIER IC2350 C1BB00000947
REGULATOR IC3801 C0DBAYY00372
REGULATOR IC3806 C0DBAYY00372
REGULATOR IC3808 C0CBCAD00082
REGULATOR IC3809 AN78L08M-E1
IC FOR POWER SUPPLYIC3810 C0DBEYY00084
VOLTAGE DETECTING ICIC3812 C0EBH0000298
REGULATOR IC3813 C0DBZYY00284
EEPROM EDID IC5001 GLP23AEDID1
EEPROM EDID IC5002 GLP23AEDID2
HDMI RECEIVER IC5003 C1AB00002848
LED RECEIVER RM2501 PNA4701M05TV
PHOTO IC DIODE SN2551 B3JB00000046
DIODES
DIODE D271 MA22D3900L
DIODE D272 B0ACCK000015
DIODE D273 B0ACCK000015
DIODE D301 B0ACCK000015
DIODE D302 MA22D3900L
DIODE D303 B0ACCK000015
DIODE D1101 MA24D5000B
DIODE D1102 MA24D5000B
DIODE D1201 MA2J72800L
DIODE D1503 MAZ80820ML
DIODE D2501 B3CKE0000007
DIODE D3808 MA24D5000B
ZENER DIODE D3813 MAZ80510ML
DIODE D3851 MA2J11100L
DIODE D3852 MA2J11100L
DIODE D3853 MA2J11100L
DIODE D3854 MA2J11100L
DIODE D3855 MA2J11100L
DIODE D3856 MA2J11100L
DIODE D3861 MA24D5000B
DIODE D3863 MA22F2000L
DIODE D3864 MA22F2000L
DIODE D3865 MAZ81500ML
DIODE D3866 MAZ81500ML
DIODE D3867 MA22D3900L
DIODE D3869 MA24D5000B
DIODE D3874 MA3X152E0L
DIODE D3875 MA3X152E0L
DIODE D3876 MAZ82700ML
DIODE D3877 MAZ81800ML
DIODE D3878 MAZ80820ML
19
RTL
RTL
RTL
RTL
