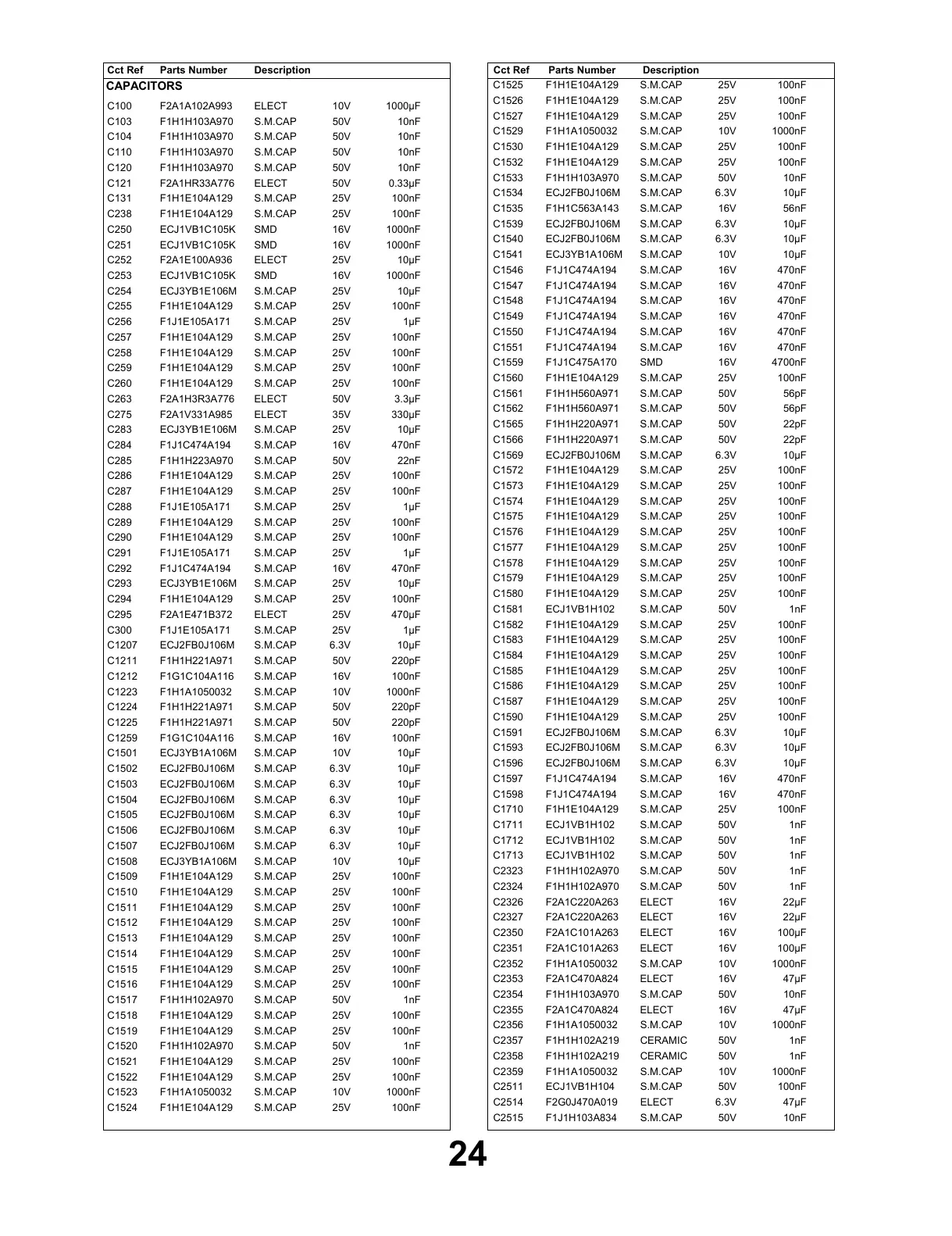

Panasonic TX-32LE8F - Page 24

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
CAPACITORS
ELECTC100 F2A1A102A993 10V 1000µF
S.M.CAPC103 F1H1H103A970 50V 10nF
S.M.CAPC104 F1H1H103A970 50V 10nF
S.M.CAPC110 F1H1H103A970 50V 10nF
S.M.CAPC120 F1H1H103A970 50V 10nF
ELECTC121 F2A1HR33A776 50V 0.33µF
S.M.CAPC131 F1H1E104A129 25V 100nF
S.M.CAPC238 F1H1E104A129 25V 100nF
SMDC250 ECJ1VB1C105K 16V 1000nF
SMDC251 ECJ1VB1C105K 16V 1000nF
ELECTC252 F2A1E100A936 25V 10µF
SMDC253 ECJ1VB1C105K 16V 1000nF
S.M.CAPC254 ECJ3YB1E106M 25V 10µF
S.M.CAPC255 F1H1E104A129 25V 100nF
S.M.CAPC256 F1J1E105A171 25V 1µF
S.M.CAPC257 F1H1E104A129 25V 100nF
S.M.CAPC258 F1H1E104A129 25V 100nF
S.M.CAPC259 F1H1E104A129 25V 100nF
S.M.CAPC260 F1H1E104A129 25V 100nF
ELECTC263 F2A1H3R3A776 50V 3.3µF
ELECTC275 F2A1V331A985 35V 330µF
S.M.CAPC283 ECJ3YB1E106M 25V 10µF
S.M.CAPC284 F1J1C474A194 16V 470nF
S.M.CAPC285 F1H1H223A970 50V 22nF
S.M.CAPC286 F1H1E104A129 25V 100nF
S.M.CAPC287 F1H1E104A129 25V 100nF
S.M.CAPC288 F1J1E105A171 25V 1µF
S.M.CAPC289 F1H1E104A129 25V 100nF
S.M.CAPC290 F1H1E104A129 25V 100nF
S.M.CAPC291 F1J1E105A171 25V 1µF
S.M.CAPC292 F1J1C474A194 16V 470nF
S.M.CAPC293 ECJ3YB1E106M 25V 10µF
S.M.CAPC294 F1H1E104A129 25V 100nF
ELECTC295 F2A1E471B372 25V 470µF
S.M.CAPC300 F1J1E105A171 25V 1µF
S.M.CAPC1207 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1211 F1H1H221A971 50V 220pF
S.M.CAPC1212 F1G1C104A116 16V 100nF
S.M.CAPC1223 F1H1A1050032 10V 1000nF
S.M.CAPC1224 F1H1H221A971 50V 220pF
S.M.CAPC1225 F1H1H221A971 50V 220pF
S.M.CAPC1259 F1G1C104A116 16V 100nF
S.M.CAPC1501 ECJ3YB1A106M 10V 10µF
S.M.CAPC1502 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1503 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1504 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1505 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1506 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1507 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1508 ECJ3YB1A106M 10V 10µF
S.M.CAP
C1509 F1H1E104A129 25V 100nF
S.M.CAPC1510 F1H1E104A129 25V
100nF
S.M.CAPC1511 F1H1E104A129 25V 100nF
S.M.CAPC1512 F1H1E104A129 25V 100nF
S.M.CAPC1513 F1H1E104A129 25V 100nF
S.M.CAPC1514 F1H1E104A129 25V 100nF
S.M.CAPC1515 F1H1E104A129 25V 100nF
S.M.CAPC1516 F1H1E104A129 25V 100nF
S.M.CAPC1517 F1H1H102A970 50V 1nF
S.M.CAPC1518 F1H1E104A129 25V 100nF
S.M.CAPC1519 F1H1E104A129 25V 100nF
S.M.CAPC1520 F1H1H102A970 50V 1nF
S.M.CAPC1521 F1H1E104A129 25V 100nF
S.M.CAPC1522 F1H1E104A129 25V 100nF
S.M.CAPC1523 F1H1A1050032 10V 1000nF
S.M.CAPC1524 F1H1E104A129 25V 100nF
S.M.CAPC1525 F1H1E104A129 25V 100nF
S.M.CAPC1526 F1H1E104A129 25V 100nF
S.M.CAPC1527 F1H1E104A129 25V 100nF
S.M.CAPC1529 F1H1A1050032 10V 1000nF
S.M.CAPC1530 F1H1E104A129 25V 100nF
S.M.CAPC1532 F1H1E104A129 25V 100nF
S.M.CAPC1533 F1H1H103A970 50V 10nF
S.M.CAPC1534 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1535 F1H1C563A143 16V 56nF
S.M.CAPC1539 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1540 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1541 ECJ3YB1A106M 10V 10µF
S.M.CAPC1546 F1J1C474A194 16V 470nF
S.M.CAPC1547 F1J1C474A194 16V 470nF
S.M.CAPC1548 F1J1C474A194 16V 470nF
S.M.CAPC1549 F1J1C474A194 16V 470nF
S.M.CAPC1550 F1J1C474A194 16V 470nF
S.M.CAPC1551 F1J1C474A194 16V 470nF
SMDC1559 F1J1C475A170 16V 4700nF
S.M.CAPC1560 F1H1E104A129 25V 100nF
S.M.CAPC1561 F1H1H560A971 50V 56pF
S.M.CAPC1562 F1H1H560A971 50V 56pF
S.M.CAPC1565 F1H1H220A971 50V 22pF
S.M.CAPC1566 F1H1H220A971 50V 22pF
S.M.CAPC1569 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1572 F1H1E104A129 25V 100nF
S.M.CAPC1573 F1H1E104A129 25V 100nF
S.M.CAPC1574 F1H1E104A129 25V 100nF
S.M.CAPC1575 F1H1E104A129 25V 100nF
S.M.CAPC1576 F1H1E104A129 25V 100nF
S.M.CAPC1577 F1H1E104A129 25V 100nF
S.M.CAPC1578 F1H1E104A129 25V 100nF
S.M.CAPC1579 F1H1E104A129 25V 100nF
S.M.CAPC1580 F1H1E104A129 25V 100nF
S.M.CAPC1581 ECJ1VB1H102 50V 1nF
S.M.CAPC1582
F1H1E104A129 25V
100nF
S.M.CAPC1583 F1H1E104A129 25V 100nF
S.M.CAPC1584 F1H1E104A129 25V 100nF
S.M.CAPC1585 F1H1E104A129 25V 100nF
S.M.CAPC1586 F1H1E104A129 25V 100nF
S.M.CAPC1587 F1H1E104A129 25V 100nF
S.M.CAPC1590 F1H1E104A129 25V 100nF
S.M.CAPC1591 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1593 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1596 ECJ2FB0J106M 6.3V 10µF
S.M.CAPC1597 F1J1C474A194 16V 470nF
S.M.CAPC1598 F1J1C474A194 16V 470nF
S.M.CAPC1710 F1H1E104A129 25V 100nF
S.M.CAPC1711 ECJ1VB1H102 50V 1nF
S.M.CAPC1712 ECJ1VB1H102 50V 1nF
S.M.CAPC1713 ECJ1VB1H102 50V 1nF
S.M.CAPC2323 F1H1H102A970 50V 1nF
S.M.CAPC2324 F1H1H102A970 50V 1nF
ELECTC2326 F2A1C220A263 16V 22µF
ELECTC2327 F2A1C220A263 16V 22µF
ELECTC2350 F2A1C101A263 16V 100µF
ELECTC2351 F2A1C101A263 16V 100µF
S.M.CAPC2352 F1H1A1050032 10V 1000nF
ELECTC2353 F2A1C470A824 16V 47µF
S.M.CAPC2354 F1H1H103A970 50V 10nF
ELECTC2355 F2A1C470A824 16V 47µF
S.M.CAPC2356 F1H1A1050032 10V 1000nF
CERAMICC2357 F1H1H102A219 50V 1nF
CERAMICC2358 F1H1H102A219 50V 1nF
S.M.CAPC2359 F1H1A1050032 10V 1000nF
S.M.CAPC2511 ECJ1VB1H104 50V 100nF
ELECTC2514 F2G0J470A019 6.3V 47µF
S.M.CAPC2515 F1J1H103A834 50V 10nF
24
