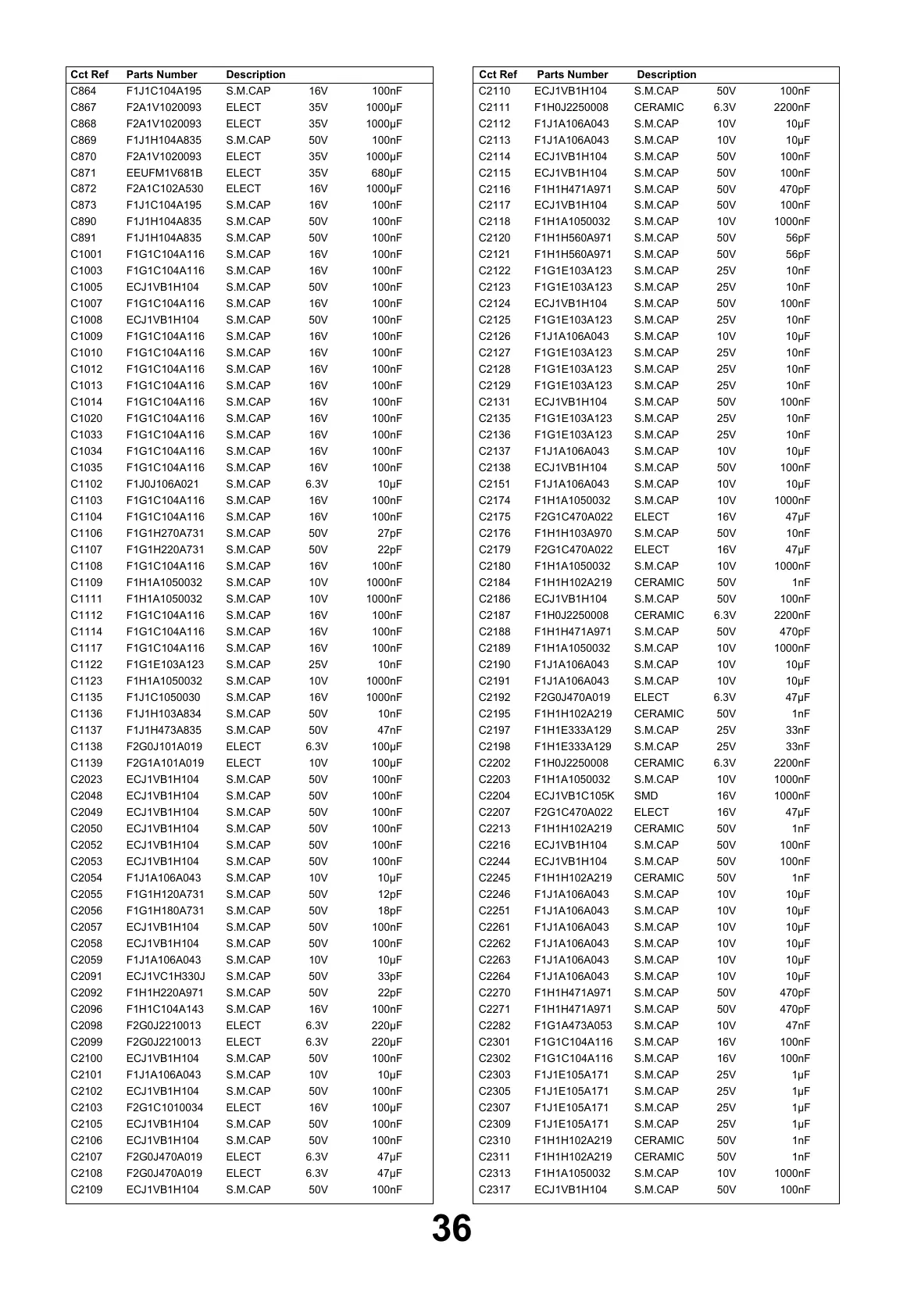

DescriptionCct Ref Parts Number DescriptionCct Ref Parts Number
S.M.CAPC864 F1J1C104A195 16V 100nF
ELECTC867 F2A1V1020093 35V 1000µF
ELECTC868 F2A1V1020093 35V 1000µF
S.M.CAPC869 F1J1H104A835 50V 100nF
ELECTC870 F2A1V1020093 35V 1000µF
ELECTC871 EEUFM1V681B 35V 680µF
ELECTC872 F2A1C102A530 16V 1000µF
S.M.CAPC873 F1J1C104A195 16V 100nF
S.M.CAPC890 F1J1H104A835 50V 100nF
S.M.CAPC891 F1J1H104A835 50V 100nF
S.M.CAPC1001 F1G1C104A116 16V 100nF
S.M.CAPC1003 F1G1C104A116 16V 100nF
S.M.CAPC1005 ECJ1VB1H104 50V 100nF
S.M.CAPC1007 F1G1C104A116 16V 100nF
S.M.CAPC1008 ECJ1VB1H104 50V 100nF
S.M.CAPC1009 F1G1C104A116 16V 100nF
S.M.CAPC1010 F1G1C104A116 16V 100nF
S.M.CAPC1012 F1G1C104A116 16V 100nF
S.M.CAPC1013 F1G1C104A116 16V 100nF
S.M.CAPC1014 F1G1C104A116 16V 100nF
S.M.CAPC1020 F1G1C104A116 16V 100nF
S.M.CAPC1033 F1G1C104A116 16V 100nF
S.M.CAPC1034 F1G1C104A116 16V 100nF
S.M.CAPC1035 F1G1C104A116 16V 100nF
S.M.CAPC1102 F1J0J106A021 6.3V 10µF
S.M.CAPC1103 F1G1C104A116 16V 100nF
S.M.CAPC1104 F1G1C104A116 16V 100nF
S.M.CAPC1106 F1G1H270A731 50V 27pF
S.M.CAPC1107 F1G1H220A731 50V 22pF
S.M.CAPC1108 F1G1C104A116 16V 100nF
S.M.CAPC1109 F1H1A1050032 10V 1000nF
S.M.CAPC1111 F1H1A1050032 10V 1000nF
S.M.CAPC1112 F1G1C104A116 16V 100nF
S.M.CAPC1114 F1G1C104A116 16V 100nF
S.M.CAPC1117 F1G1C104A116 16V 100nF
S.M.CAPC1122 F1G1E103A123 25V 10nF
S.M.CAPC1123 F1H1A1050032 10V 1000nF
S.M.CAPC1135 F1J1C1050030 16V 1000nF
S.M.CAPC1136 F1J1H103A834 50V 10nF
S.M.CAPC1137 F1J1H473A835 50V 47nF
ELECTC1138 F2G0J101A019 6.3V 100µF
ELECTC1139 F2G1A101A019 10V 100µF
S.M.CAPC2023 ECJ1VB1H104 50V 100nF
S.M.CAPC2048 ECJ1VB1H104 50V 100nF
S.M.CAPC2049 ECJ1VB1H104 50V 100nF
S.M.CAPC2050 ECJ1VB1H104 50V 100nF
S.M.CAPC2052 ECJ1VB1H104 50V 100nF
S.M.CAPC2053 ECJ1VB1H104 50V 100nF
S.M.CAPC2054 F1J1A106A043 10V 10µF
S.M.CAPC2055 F1G1H120A731 50V 12pF
S.M.CAP
C2056 F1G1H180A731 50V 18pF
S.M.CAPC2057 EC
J1VB1H104 50V 100nF
S.M.CAPC2058 ECJ1VB1H104 50V 100nF
S.M.CAPC2059 F1J1A106A043 10V 10µF
S.M.CAPC2091 ECJ1VC1H330J 50V 33pF
S.M.CAPC2092 F1H1H220A971 50V 22pF
S.M.CAPC2096 F1H1C104A143 16V 100nF
ELECTC2098 F2G0J2210013 6.3V 220µF
ELECTC2099 F2G0J2210013 6.3V 220µF
S.M.CAPC2100 ECJ1VB1H104 50V 100nF
S.M.CAPC2101 F1J1A106A043 10V 10µF
S.M.CAPC2102 ECJ1VB1H104 50V 100nF
ELECTC2103 F2G1C1010034 16V 100µF
S.M.CAPC2105 ECJ1VB1H104 50V 100nF
S.M.CAPC2106 ECJ1VB1H104 50V 100nF
ELECTC2107 F2G0J470A019 6.3V 47µF
ELECTC2108 F2G0J470A019 6.3V 47µF
S.M.CAPC2109 ECJ1VB1H104 50V 100nF
S.M.CAPC2110 ECJ1VB1H104 50V 100nF
CERAMICC2111 F1H0J2250008 6.3V 2200nF
S.M.CAPC2112 F1J1A106A043 10V 10µF
S.M.CAPC2113 F1J1A106A043 10V 10µF
S.M.CAPC2114 ECJ1VB1H104 50V 100nF
S.M.CAPC2115 ECJ1VB1H104 50V 100nF
S.M.CAPC2116 F1H1H471A971 50V 470pF
S.M.CAPC2117 ECJ1VB1H104 50V 100nF
S.M.CAPC2118 F1H1A1050032 10V 1000nF
S.M.CAPC2120 F1H1H560A971 50V 56pF
S.M.CAPC2121 F1H1H560A971 50V 56pF
S.M.CAPC2122 F1G1E103A123 25V 10nF
S.M.CAPC2123 F1G1E103A123 25V 10nF
S.M.CAPC2124 ECJ1VB1H104 50V 100nF
S.M.CAPC2125 F1G1E103A123 25V 10nF
S.M.CAPC2126 F1J1A106A043 10V 10µF
S.M.CAPC2127 F1G1E103A123 25V 10nF
S.M.CAPC2128 F1G1E103A123 25V 10nF
S.M.CAPC2129 F1G1E103A123 25V 10nF
S.M.CAPC2131 ECJ1VB1H104 50V 100nF
S.M.CAPC2135 F1G1E103A123 25V 10nF
S.M.CAPC2136 F1G1E103A123 25V 10nF
S.M.CAPC2137 F1J1A106A043 10V 10µF
S.M.CAPC2138 ECJ1VB1H104 50V 100nF
S.M.CAPC2151 F1J1A106A043 10V 10µF
S.M.CAPC2174 F1H1A1050032 10V 1000nF
ELECTC2175 F2G1C470A022 16V 47µF
S.M.CAPC2176 F1H1H103A970 50V 10nF
ELECTC2179 F2G1C470A022 16V 47µF
S.M.CAPC2180 F1H1A1050032 10V 1000nF
CERAMICC2184 F1H1H102A219 50V 1nF
S.M.CAPC2186 ECJ1VB1H104 50V 100nF
CERAMICC2187 F1H0J2250008 6.3V 2200nF
S.M.CAPC2188
F1H1H471A
971 50V 470pF
S.M.CAPC2189 F1H1A1050032 10V 1000nF
S.M.CAPC2190 F1J1A106A043 10V 10µF
S.M.CAPC2191 F1J1A106A043 10V 10µF
ELECTC2192 F2G0J470A019 6.3V 47µF
CERAMICC2195 F1H1H102A219 50V 1nF
S.M.CAPC2197 F1H1E333A129 25V 33nF
S.M.CAPC2198 F1H1E333A129 25V 33nF
CERAMICC2202 F1H0J2250008 6.3V 2200nF
S.M.CAPC2203 F1H1A1050032 10V 1000nF
SMDC2204 ECJ1VB1C105K 16V 1000nF
ELECTC2207 F2G1C470A022 16V 47µF
CERAMICC2213 F1H1H102A219 50V 1nF
S.M.CAPC2216 ECJ1VB1H104 50V 100nF
S.M.CAPC2244 ECJ1VB1H104 50V 100nF
CERAMICC2245 F1H1H102A219 50V 1nF
S.M.CAPC2246 F1J1A106A043 10V 10µF
S.M.CAPC2251 F1J1A106A043 10V 10µF
S.M.CAPC2261 F1J1A106A043 10V 10µF
S.M.CAPC2262 F1J1A106A043 10V 10µF
S.M.CAPC2263 F1J1A106A043 10V 10µF
S.M.CAPC2264 F1J1A106A043 10V 10µF
S.M.CAPC2270 F1H1H471A971 50V 470pF
S.M.CAPC2271 F1H1H471A971 50V 470pF
S.M.CAPC2282 F1G1A473A053 10V 47nF
S.M.CAPC2301 F1G1C104A116 16V 100nF
S.M.CAPC2302 F1G1C104A116 16V 100nF
S.M.CAPC2303 F1J1E105A171 25V 1µF
S.M.CAPC2305 F1J1E105A171 25V 1µF
S.M.CAPC2307 F1J1E105A171 25V 1µF
S.M.CAPC2309 F1J1E105A171 25V 1µF
CERAMICC2310 F1H1H102A219 50V 1nF
CERAMICC2311 F1H1H102A219 50V 1nF
S.M.CAPC2313 F1H1A1050032 10V 1000nF
S.M.CAPC2317 ECJ1VB1H104 50V 100nF
36
