Panasonic TX-37LXD85F - Conductor Views

IC’S
Q3000 A4
IC1101 E1 Q3001 A4
IC1104 C6 Q3002 A5
IC2106 E6 Q3003 A5
IC2107 E4 Q3004 B5
IC2301 C7 Q3005 B5
IC4200 D4 Q4203 D4
IC4201 E3 Q4204 D4
IC4202 E2 Q4205 D4
IC4207 E4 Q4206 D4
IC4510 D2 Q4207 D4
IC4514 C2 Q4501 C1
IC4515 C2 Q4514 D1
IC5602 E6 Q4515 D1
IC5660 E1 Q4702 C1
IC8001 D4 Q5600 D6
IC8002 C5 Q5601 C5
IC8003 C4 Q5602 D5
IC8403 B3 Q5605 E6
IC8601 B1 Q5606 E6
Q5607 E6
TRAN’S
Q5608 E6
Q1101 C7 Q5609 E6
Q1102 C6 Q5610 E7
Q1103 C6 Q8401 B3
Q1280 C6 Q8402 B3
Q1281 C6
Q2001 D6
DIODE’S
Q2020 D6 D1107 E1
Q2063 C7 D2902 C7
Q2067 B4 D3052 C5
Q2068 B4 D3054 C5
Q2069 C7 D4204 D4
Q2070 C7
Q2071 C7
Conductor Views

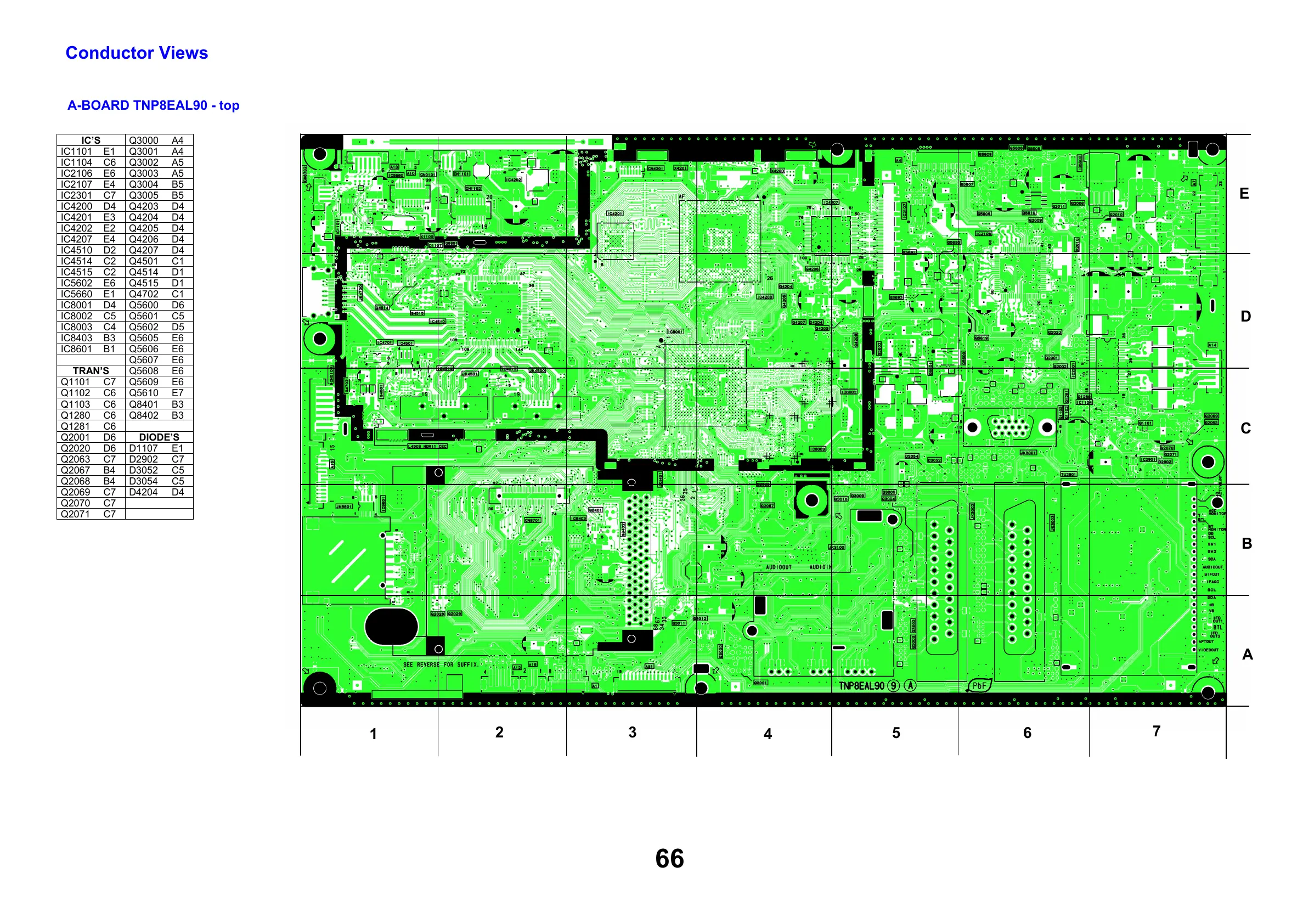

A-BOARD TNP8EAL90 - top
1
2
3
4
A
B
C
D
6
5
7
E
66
