Service Navigation

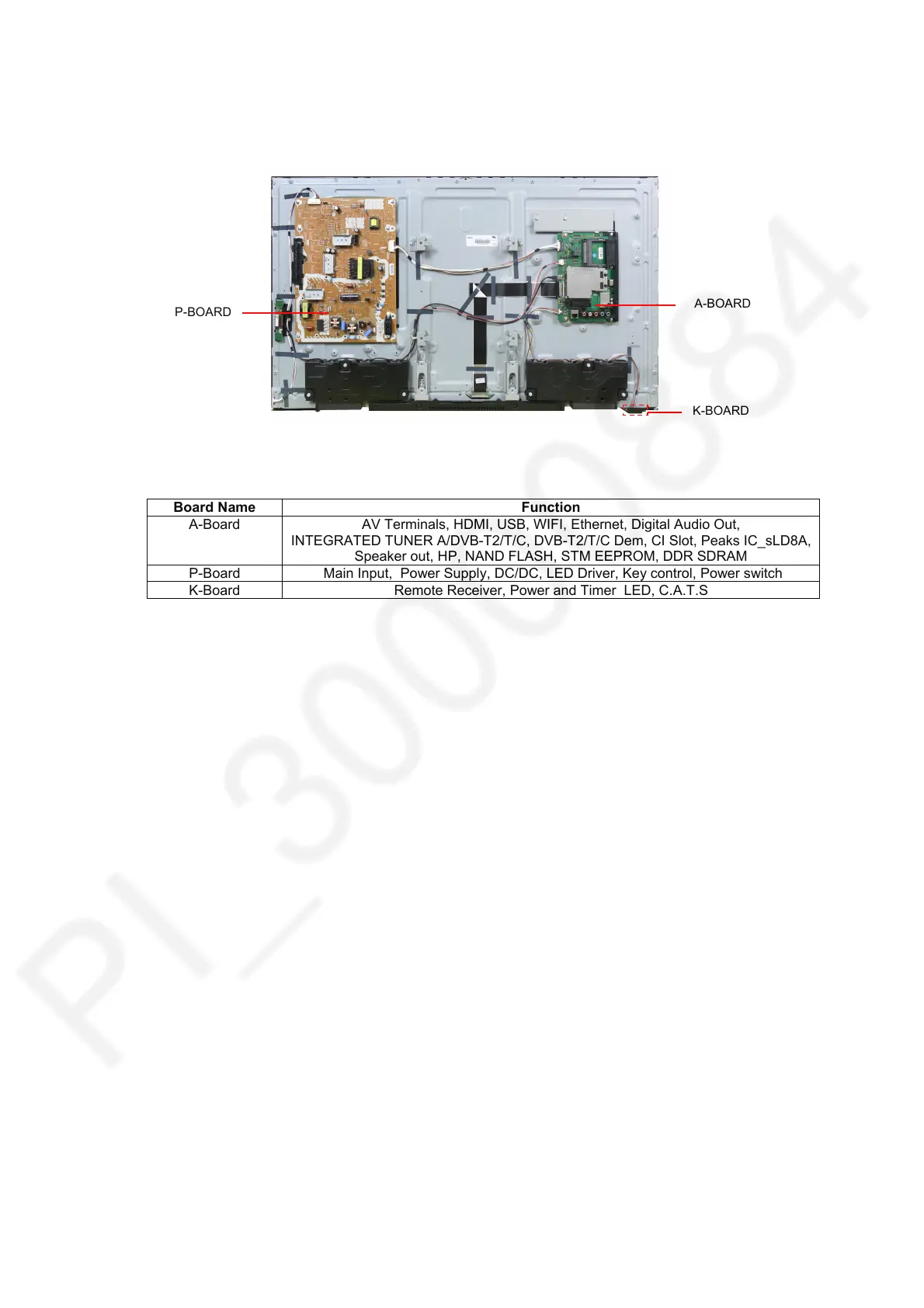

Chassis Board Layout
Board Name Function
A-Board AV Terminals, HDMI, USB, WIFI, Ethernet, Digital Audio Out,
INTEGRATED TUNER A/DVB-T2/T/C, DVB-T2/T/C Dem, CI Slot, Peaks IC_sLD8A,
Speaker out, HP, NAND FLASH, STM EEPROM, DDR SDRAM
P-Board Main Input, Power Supply, DC/DC, LED Driver, Key control, Power switch
K-Board Remote Receiver, Power and Timer LED, C.A.T.S
A-BOARD
K-BOARD
P-BOARD
