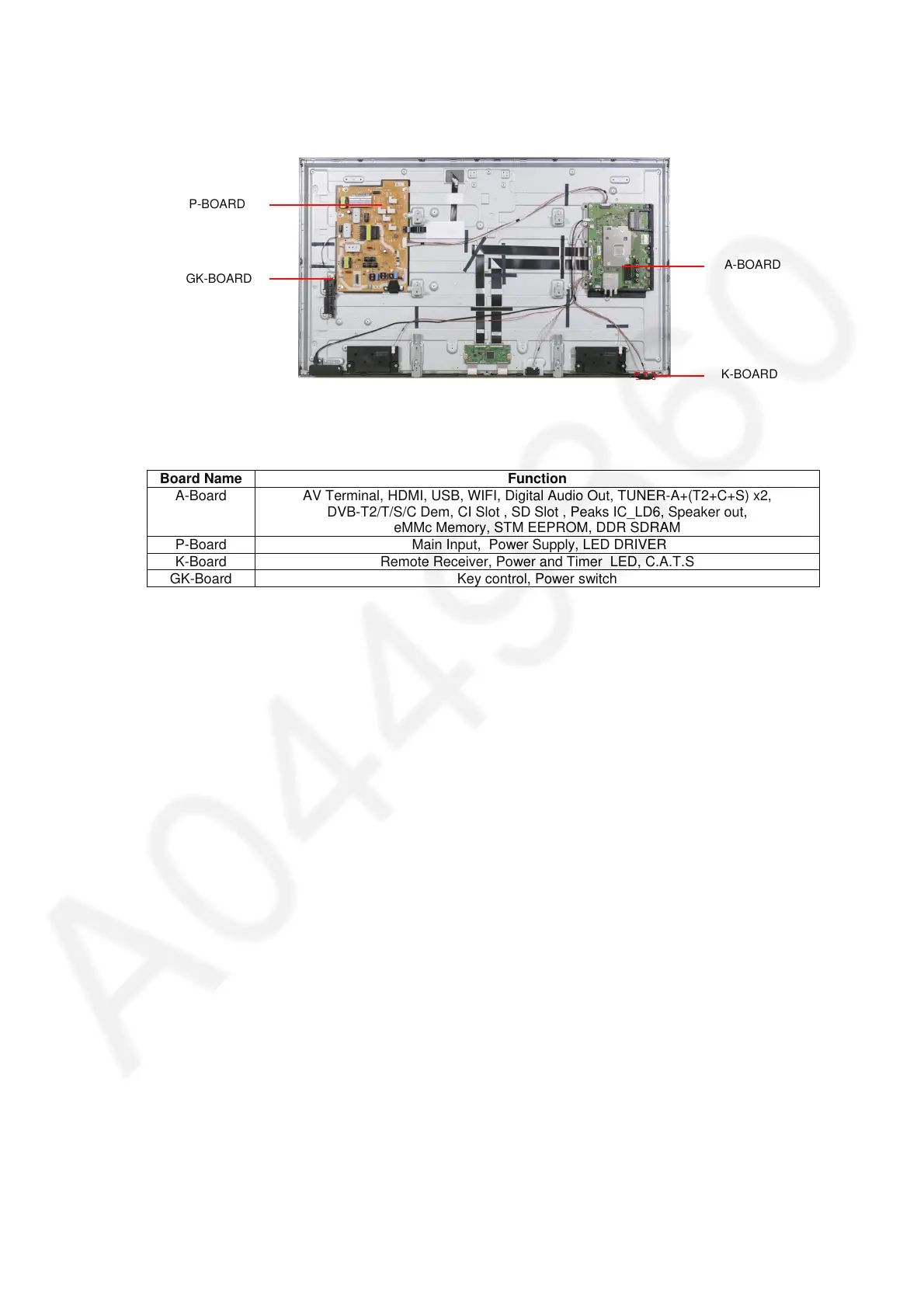

Chassis Board Layout
Board Name Function
A-Board AV Terminal, HDMI, USB, WIFI, Digital Audio Out, TUNER-A+(T2+C+S) x2,
DVB-T2/T/S/C Dem, CI Slot , SD Slot , Peaks IC_LD6, Speaker out,
eMMc Memory, STM EEPROM, DDR SDRAM
P-Board Main Input, Power Supply, LED DRIVER
K-Board Remote Receiver, Power and Timer LED, C.A.T.S
GK-Board Key control, Power switch
A-BOARD
K-BOARD
P-BOARD
GK-BOARD
