10
English

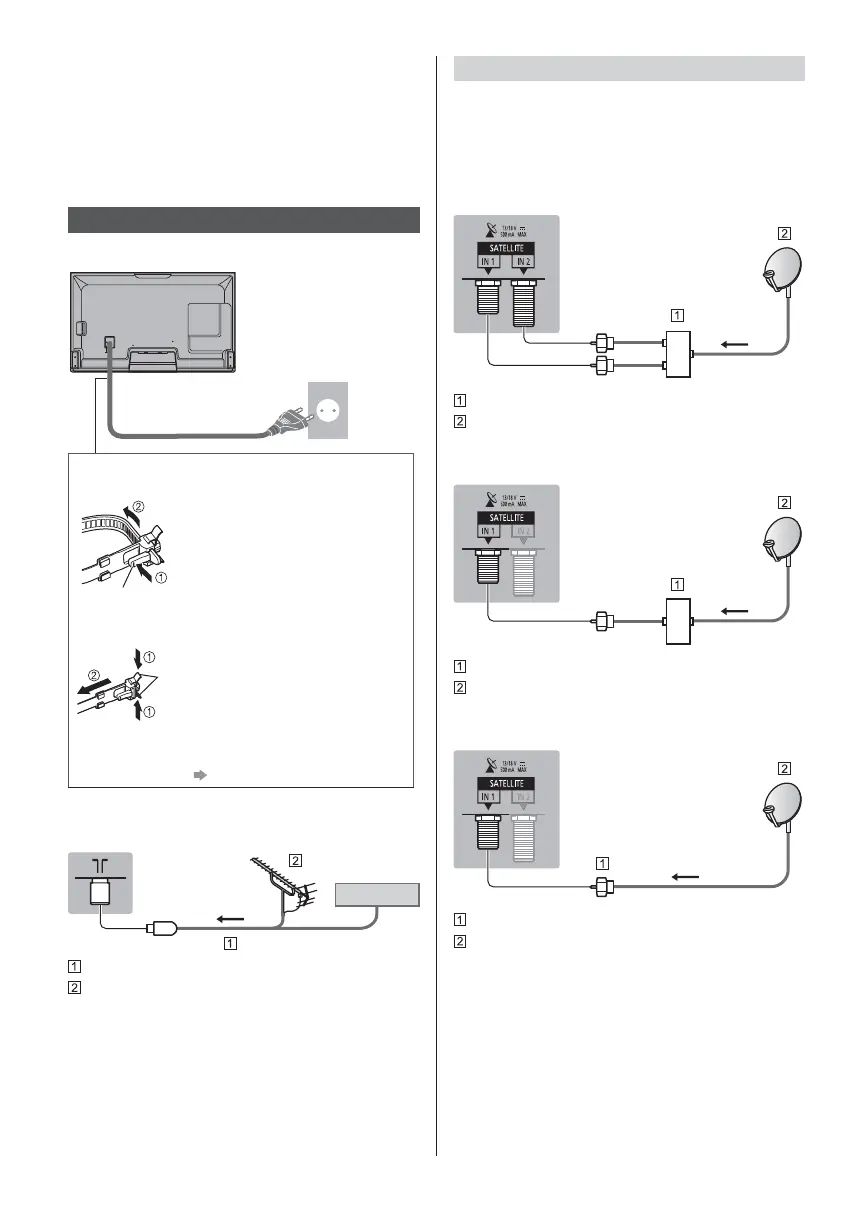

Satellite dish
To ensure your satellite dish is correctly installed,
please consult your local dealer. Also consult the
received satellite broadcasting companies for details.
For DVB-S
Dual Tuner (DiSEqC)
TV
Satellite cables with Multi Switcher
Satellite dish
Dual Tuner (Single Cable System)
TV
Satellite cable with Single Cable router
Satellite dish
Single Tuner
TV
Satellite cable
Satellite dish
12
SERVICE PORT
This terminal is for special applications used by
authorised service dealers.
13
HDMI4
To connect the equipment to AV1 or AV2, the terminal
adaptor (supplied) is necessary.
Basic connections
Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
Cable tie (Bundled the mains lead)
To loosen:
Knob
Keep pushing the knob
To remove from the TV:
Keep pushing both side snaps
Snaps
The removed cable tie can be used to bundle other
connected cables.
(p. 13)
Aerial
TV
Cable
RF cable
Terrestrial aerial
For DVB-C, DVB-T, Analogue
To Next Page
