Panasonic TX-50AS500E - Service Navigation and Hints; Chassis Board Layout

Service Navigation

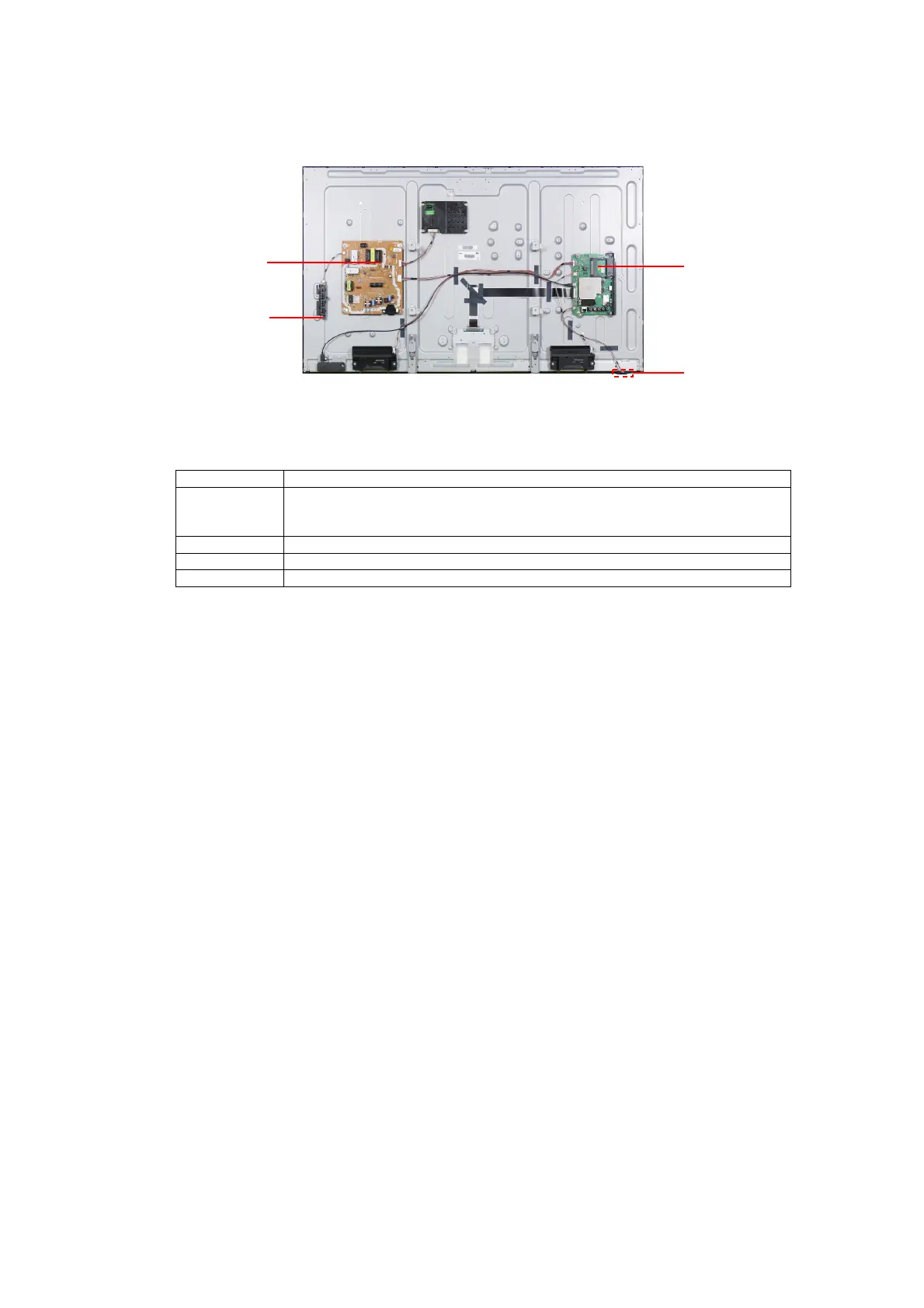

Chassis Board Layout
Board Name Function
A-Board AV Terminal, HDMI, USB, WIFI, Digital Audio Out,TUNER DVB-A/T/C,
CI slot, Ethernet, Headphones, Peaks IC_sLD8A, Speaker out,
Flash Memory, STM EEPROM, DDR SDRAM
P-Board Main Input, Power Supply
K-Board Remote Receiver, Power and Timer LED, C.A.T.S
GK-Board Key control, Power switch
A-BOARD
K-BOARD
P-BOARD
GK-BOARD
6
