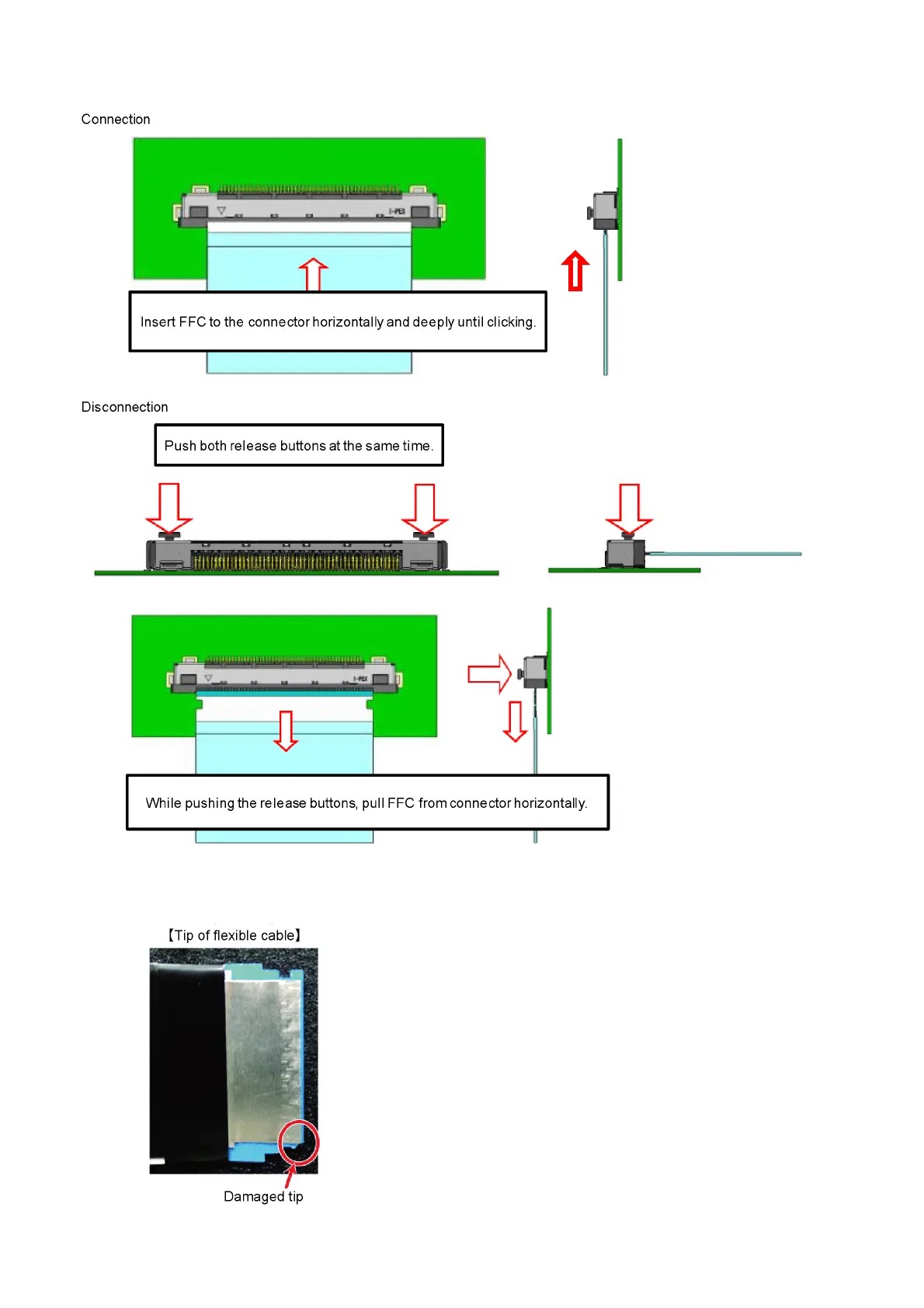

5.2. How to connect and disconnect for A16B connector on A board
If the flexible cable is inserted at a slant, the tip of the cable may be damaged.
In this case, the flexible cable should be replaced because a damaged tip causes connection failure, resulting in image defect.
