Panasonic TX-50CX670E - Disassembly Procedure for the Unit

22

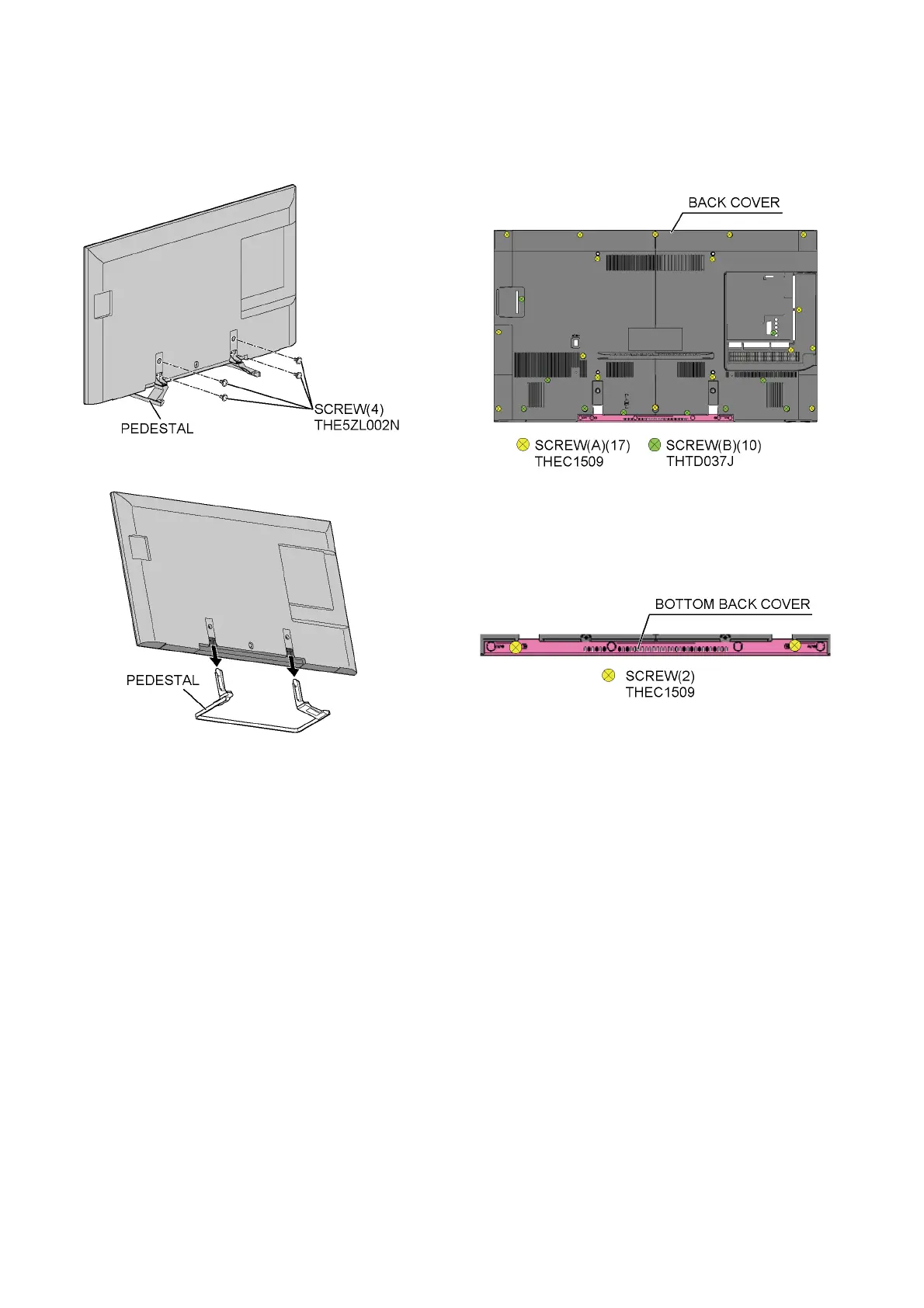

8.2. Disassembly Procedure for the Unit
Lay down the unit so that the rear cover faces upward.
8.2.1. Pedestal
1. Remove the 4 screws.
2. Remove the Pedestal.
8.2.2. Back Cover
1. Remove the 17 screws (A).
2. Remove the 10 screws (B).
3. Remove the Back Cover.
8.2.3. Bottom Back Cover
1. Remove the 2 screws.
2. Remove the Bottom Back Cover.
