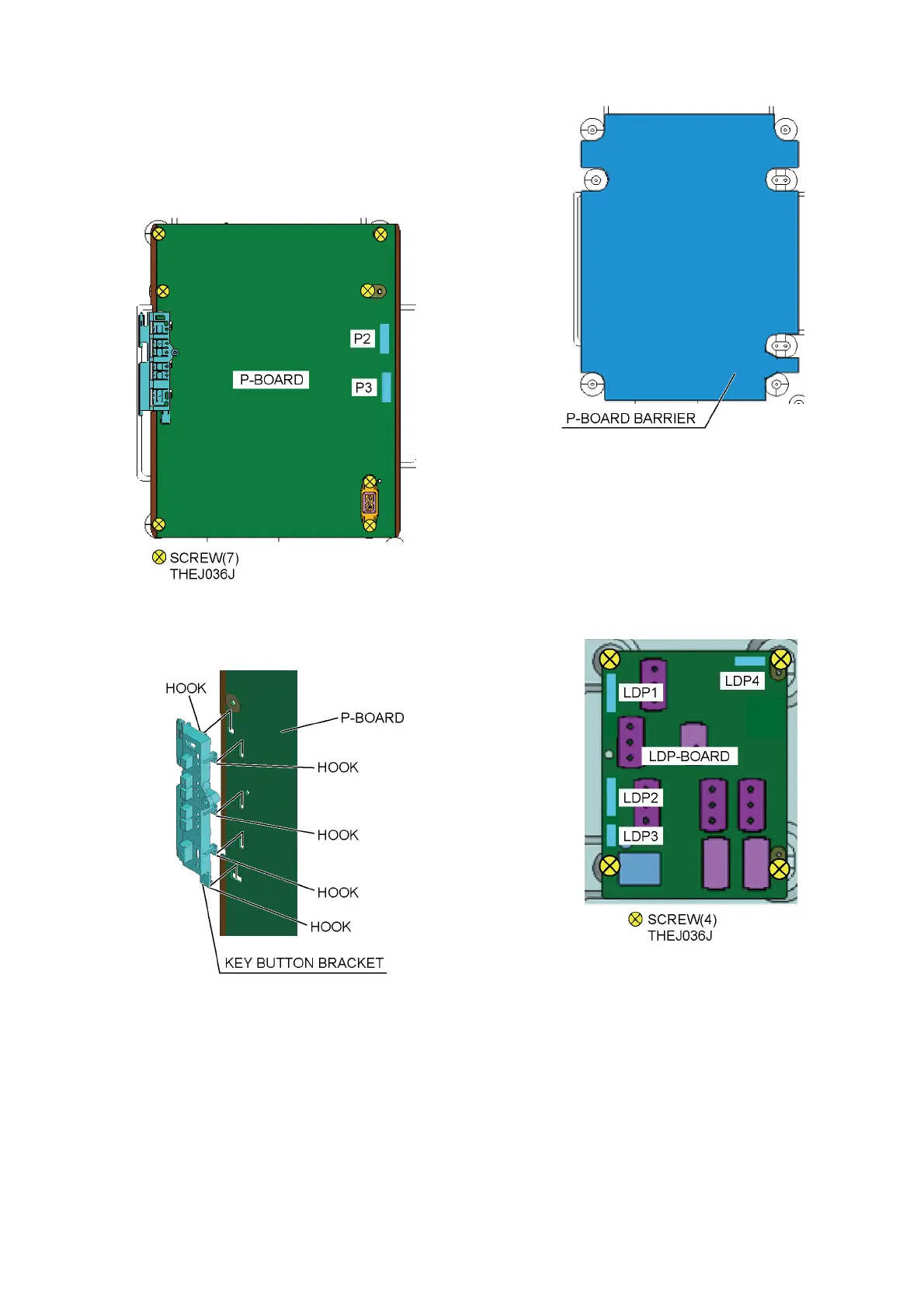

8.2.4. P-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for
discharge from electrolysis capacitors.
1. Remove the 7 screws.
2. Disconnect the connectors (P2 and P3).
3. Remove the P-Board.
4. Remove the 5 hooks.
5. Remove the Key Button Bracket.
6. Remove the P-Board Barrier.
8.2.5. LDP-Board
Caution:
To remove P.C.B. wait 1 minute after power was off for
discharge from electrolysis capacitors.
1. Remove the 4 screws.
2. Disconnect the connectors (LDP1, LDP2, LDP3 and
LDP4).
3. Remove the LDP-Board.
