Panasonic TX-50CX670E - Page 24

24

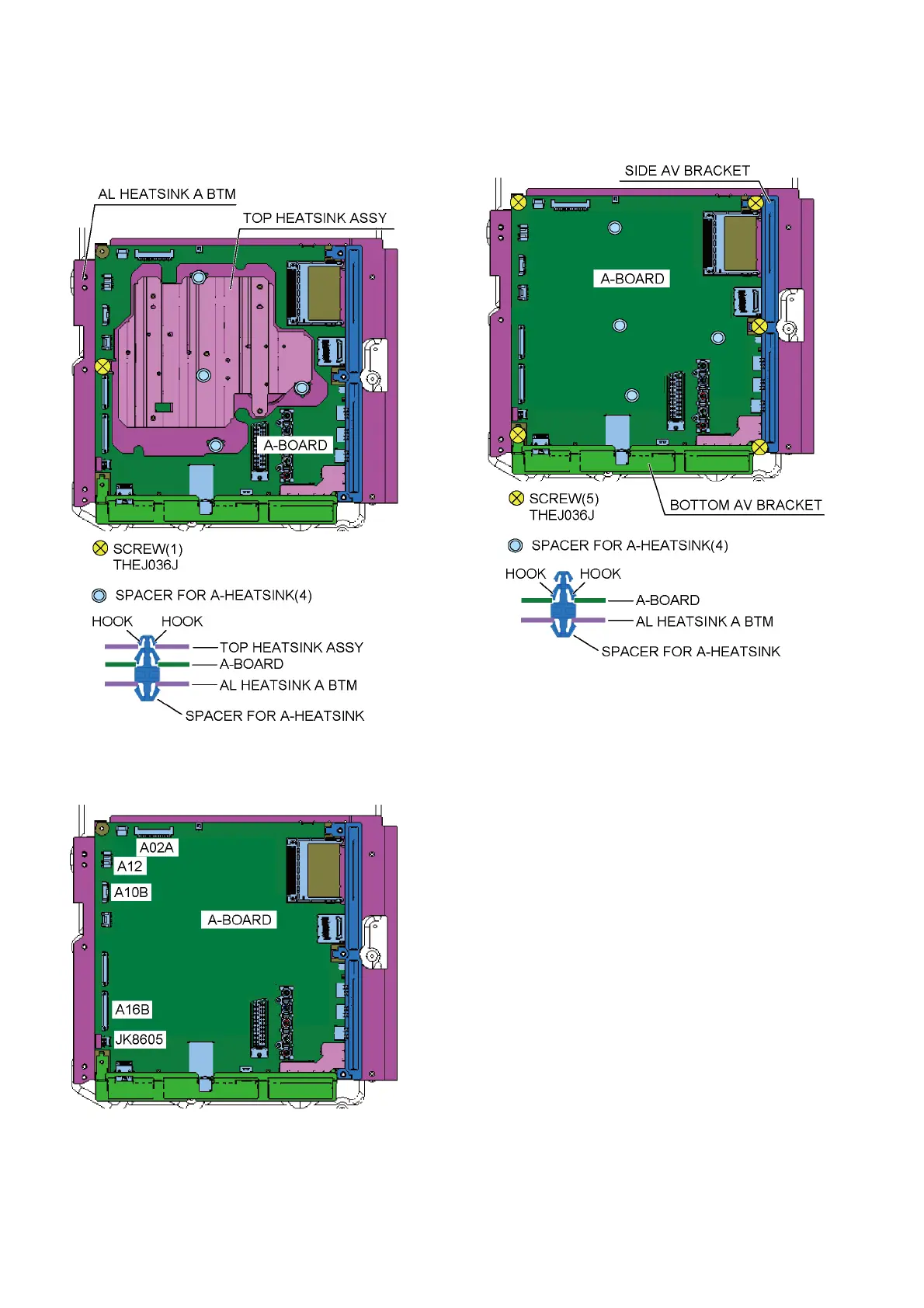

8.2.6. A-Board
1. Remove the 1 screw.
2. Remove the 42 hooks.
3. Remove the Top Heatsink Assy from 4 Spacer for A-
Heatsinks.
4. Disconnect the connectors (A02A, A10B, A12, A16B and
JK8605).
5. Remove the 5 screws.
6. Remove the Side AV Bracket and the Bottom AV Bracket.
7. Remove the 42 hooks.
8. Remove the A-Board from 4 Spacer for A-Heatsinks.
