7.1.3. Check Point
Confirm the following parts if NG was displayed.
7.1.4. Exit
Disconnect the AC cord from wall outlet or press the [POWER] button on the main unit for 3 seconds to turn off and then turn on
automatically.

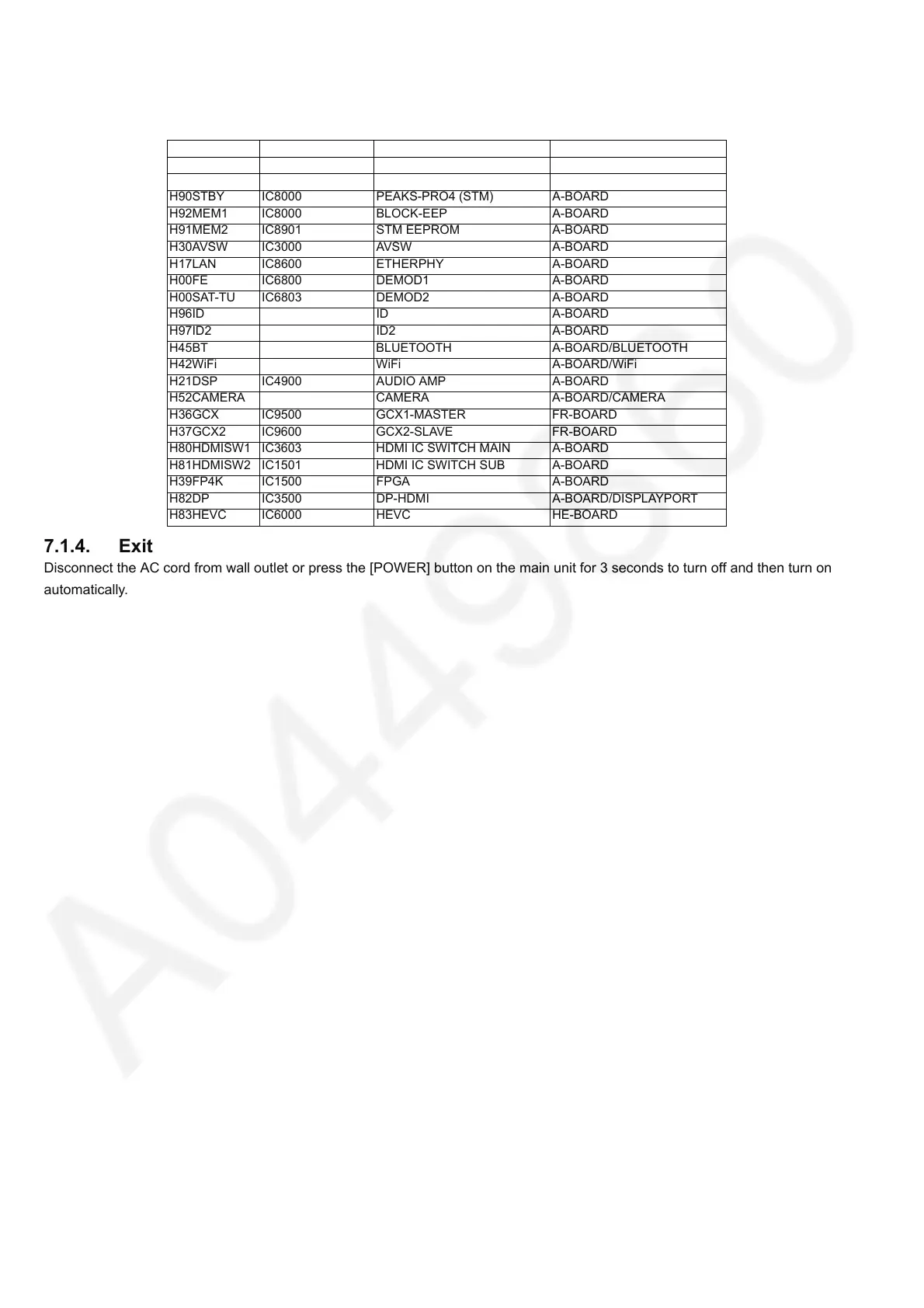

DISPLAY Check Ref. No. Description Check Point
H14TUN TU6708 TUNER A-BOARD
H15TUN2 TU6708 TUNER A-BOARD
H90STBY IC8000 PEAKS-PRO4 (STM) A-BOARD
H92MEM1 IC8000 BLOCK-EEP A-BOARD
H91MEM2 IC8901 STM EEPROM A-BOARD
H30AVSW IC3000 AVSW A-BOARD
H17LAN IC8600 ETHERPHY A-BOARD
H00FE IC6800 DEMOD1 A-BOARD
H00SAT-TU IC6803 DEMOD2 A-BOARD
H96ID ID A-BOARD
H97ID2 ID2 A-BOARD
H45BT BLUETOOTH A-BOARD/BLUETOOTH
H42WiFi WiFi A-BOARD/WiFi
H21DSP IC4900 AUDIO AMP A-BOARD
H52CAMERA CAMERA A-BOARD/CAMERA
H36GCX IC9500 GCX1-MASTER FR-BOARD
H37GCX2 IC9600 GCX2-SLAVE FR-BOARD
H80HDMISW1 IC3603 HDMI IC SWITCH MAIN A-BOARD
H81HDMISW2 IC1501 HDMI IC SWITCH SUB A-BOARD
H39FP4K IC1500 FPGA A-BOARD
H82DP IC3500 DP-HDMI A-BOARD/DISPLAYPORT
H83HEVC IC6000 HEVC HE-BOARD
