Panasonic TX-58AX800E - Detailed Disassembly Procedures

26

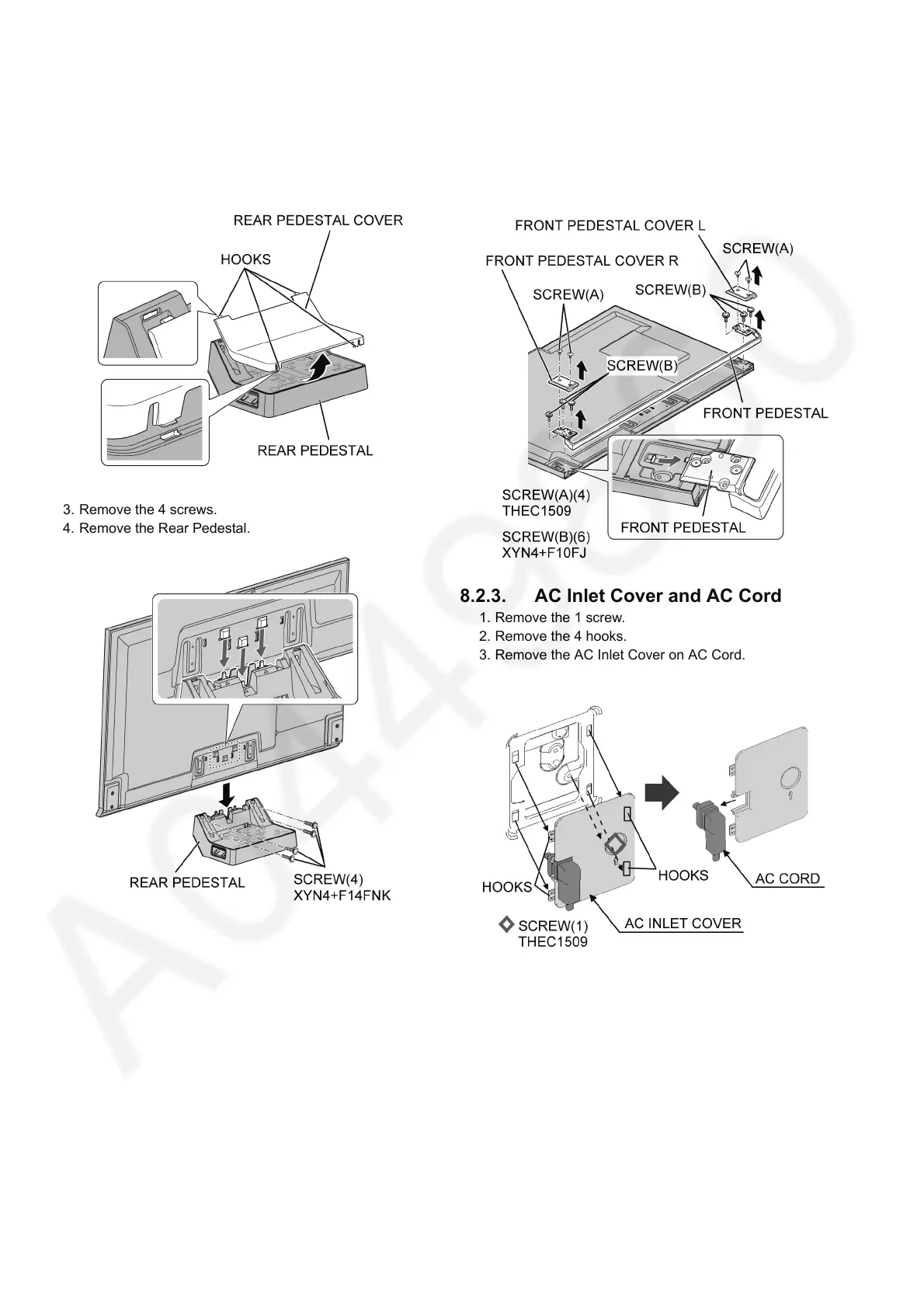

8.2. Disassembly Procedure for the Unit
Lay down the unit so that the rear cover faces upward.
8.2.1. Rear Pedestal
1. Remove the 4 hooks.
2. Remove the Rear Pedestal Cover.
3. Remove the 4 screws.
4. Remove the Rear Pedestal.
8.2.2. Front Pedestal
1. Remove the 4 screws (A).
2. Remove the Front Pedestal Cover L/R.
3. Remove the 6 screws (B).
4. Remove the Front Pedestal.
8.2.3. AC Inlet Cover and AC Cord
1. Remove the 1 screw.
2. Remove the 4 hooks.
3. Remove the AC Inlet Cover on AC Cord.
