Panasonic TX-58AX800E - Component Removal Steps

27

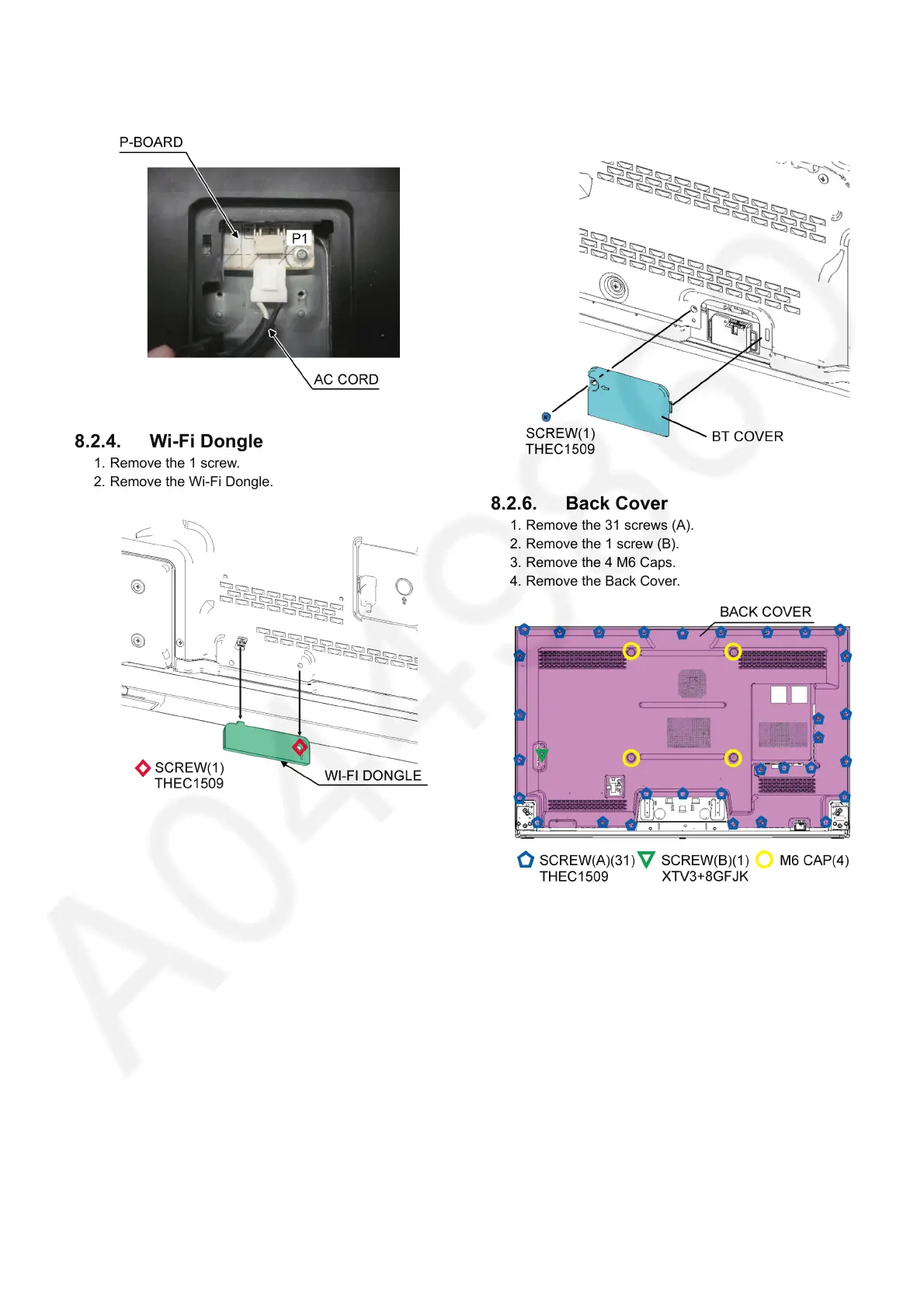

4. Disconnect the connector (P1) on P-Board.
5. Remove the AC Cord on P-Board.
8.2.4. Wi-Fi Dongle
1. Remove the 1 screw.
2. Remove the Wi-Fi Dongle.
8.2.5. BT Cover
1. Remove the 1 screw.
2. Remove the BT Cover.
8.2.6. Back Cover
1. Remove the 31 screws (A).
2. Remove the 1 screw (B).
3. Remove the 4 M6 Caps.
4. Remove the Back Cover.
