Panasonic TX-58AX800E - Board Removal Procedures

28

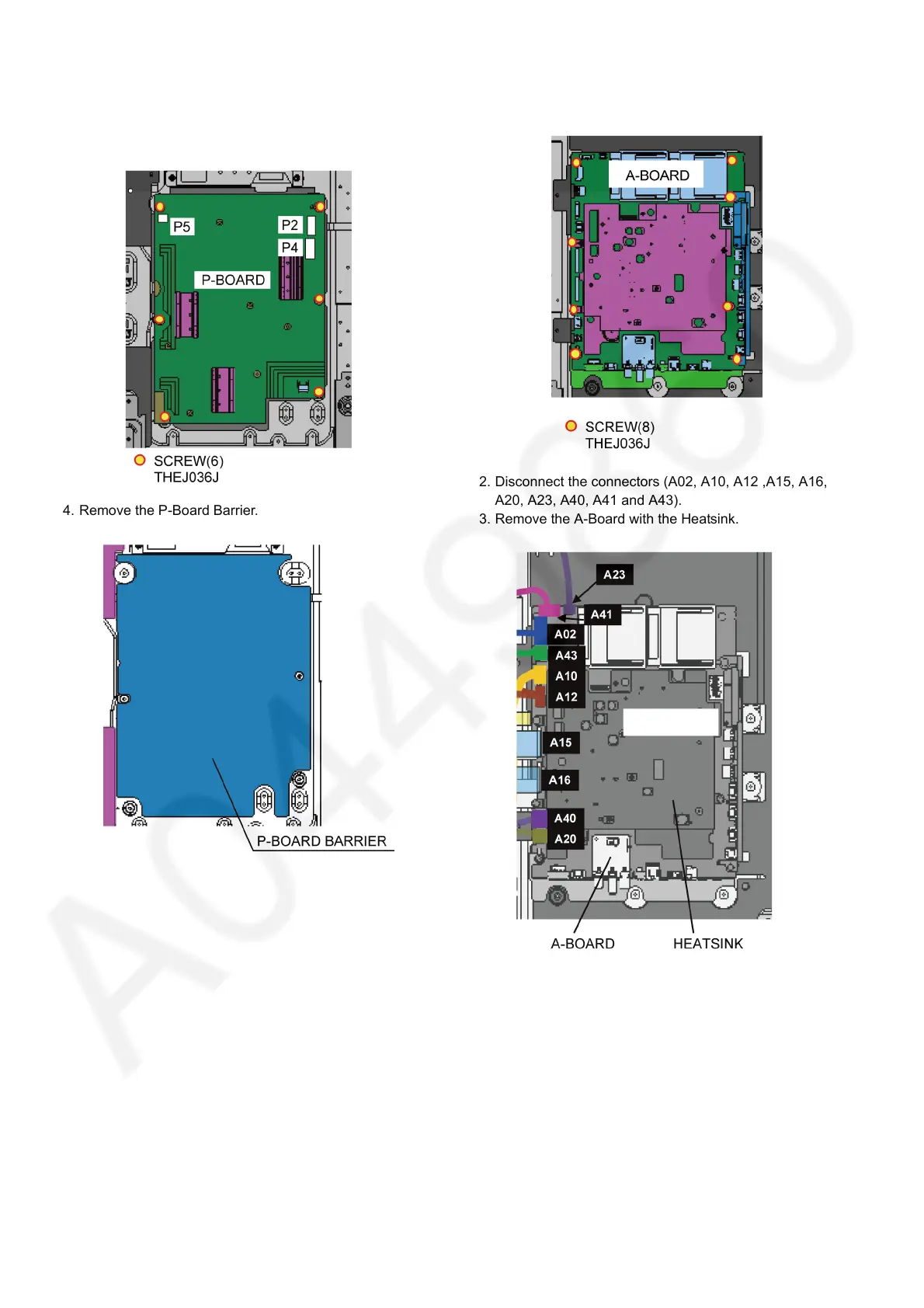

8.2.7. P-Board
1. Remove the 6 screws.
2. Disconnect the connectors (P2, P4 and P5).
3. Remove the P-Board.
4. Remove the P-Board Barrier.
8.2.8. A-Board
1. Remove the 8 screws.
2. Disconnect the connectors (A02, A10, A12 ,A15, A16,
A20, A23, A40, A41 and A43).
3. Remove the A-Board with the Heatsink.
