English
8

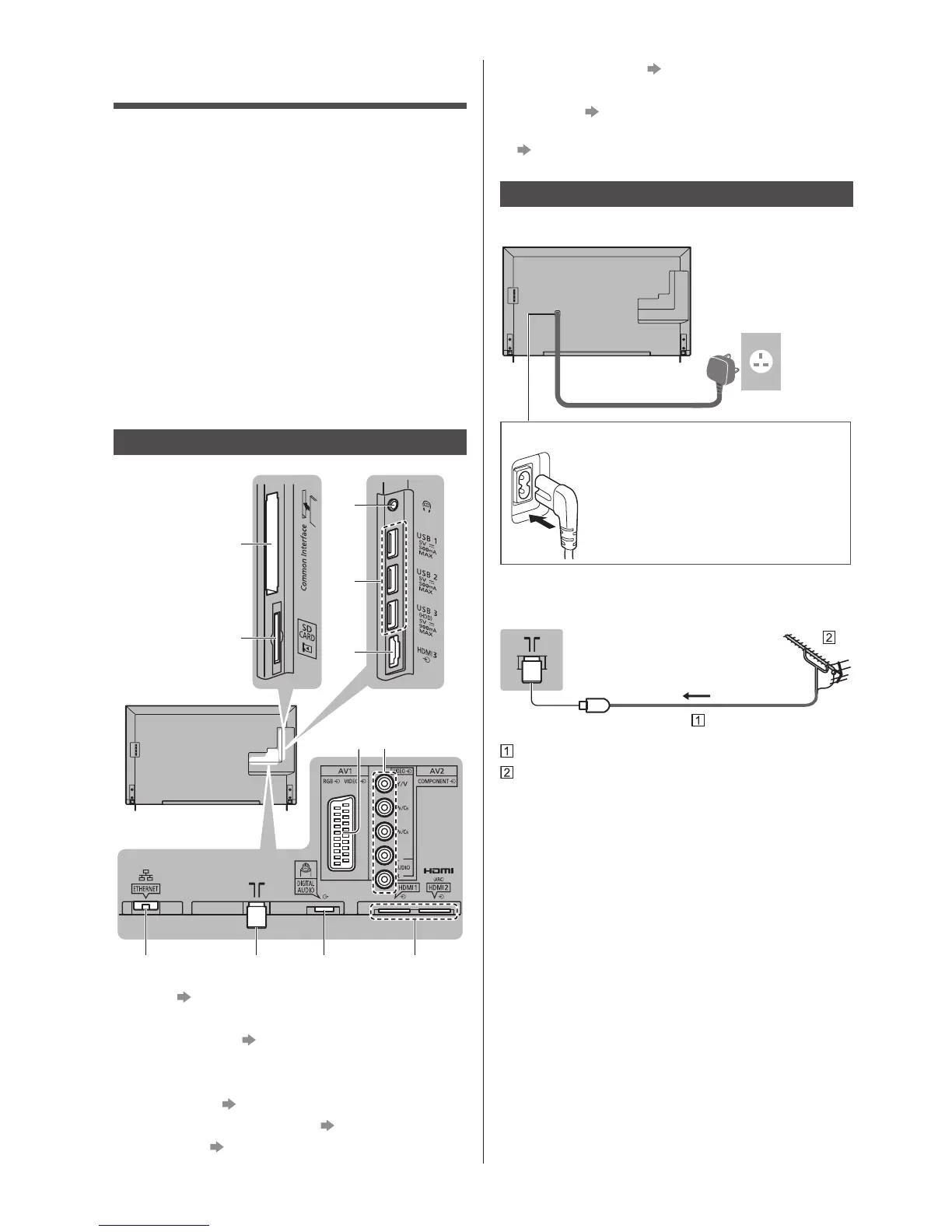

Connections
●
External equipment and cables shown are not
supplied with this TV.
●
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
●
Check the terminal type and cable plugs are correct
for connection.
●
Use a fully wired HDMI compliant cable.
●
Use a fully wired SCART cable.
●
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
●
Please also read the manual of the equipment being
connected.
Terminals
4
5
1
2
3
8 9 10
6
11
7
1 CI slot (p. 10)
2 SD Card slot
3 Headphone jack
(p. 10)
4 USB 1 - 3 port
5 HDMI3
6 AV1 (SCART)
(p. 9)
7 AV2 (COMPONENT / VIDEO)
(p. 10)
8 ETHERNET
(p. 9)
9 Terrestrial terminal
(p. 8)
10
DIGITAL AUDIO
11 HDMI1 - 2
(p. 9, 10)
●
To watch content in 4K format, use HDMI terminal.
(p. 9)
Basic connections
■ Mains lead
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Insert the mains plug firmly into place.
●
When disconnecting the mains lead,
be absolutely sure to disconnect the
mains plug from the mains socket
first.
■ Aerial
TV
RF cable
Terrestrial aerial
●
For DVB, Analogue
To Next Page
