Panasonic TX-P50C2B - Remove the C1-Board; Remove the C2-Board; Remove the S-Board

27
3. Remove the Hanger metals (L, R) fastening screws (×2
each) and remove the Hanger metals (L, R).

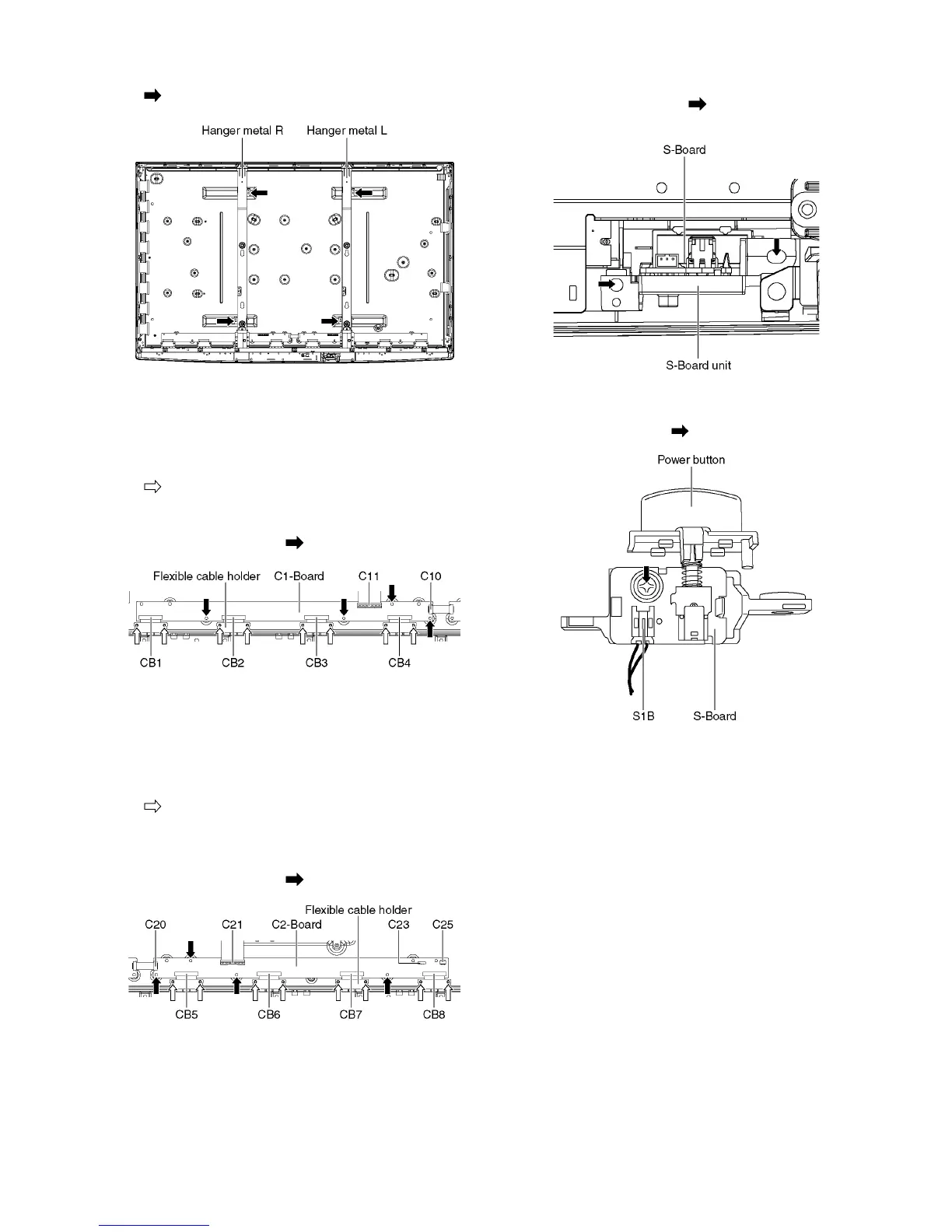

9.13. Remove the C1-Board
1. Remove the Hanger metal R and the Stand bracket R.
(See section 9.12.)
2. Remove the flexible cable holder fastening screws (×8
).
3. Disconnect the flexible cables (CB1, CB2, CB3 and CB4).
4. Disconnect the flexible cables (C10 and C11).
5. Remove the screws (×4 ) and remove the C1-Board.
9.14. Remove the C2-Board
1. Remove the Tuner unit. (See section 9.5.)
2. Remove the Hanger metal L and the Stand bracket L.
(See section 9.12.)
3. Remove the flexible cable holder fastening screws (×8
).
4. Disconnect the flexible cables (CB5, CB6, CB7 and CB8).
5. Disconnect the flexible cables (C20 and C21).
6. Disconnect the connectors (C23 and C25).
7. Remove the screws (×4 ) and remove the C2-Board.
9.15. Remove the S-Board
1. Remove the screws (×2 ) and remove the S-Board
unit.
2. Disconnect the connector (S1B).
3. Remove the Power Button.
4. Remove the screw (×1 ) and remove the S-Board.
