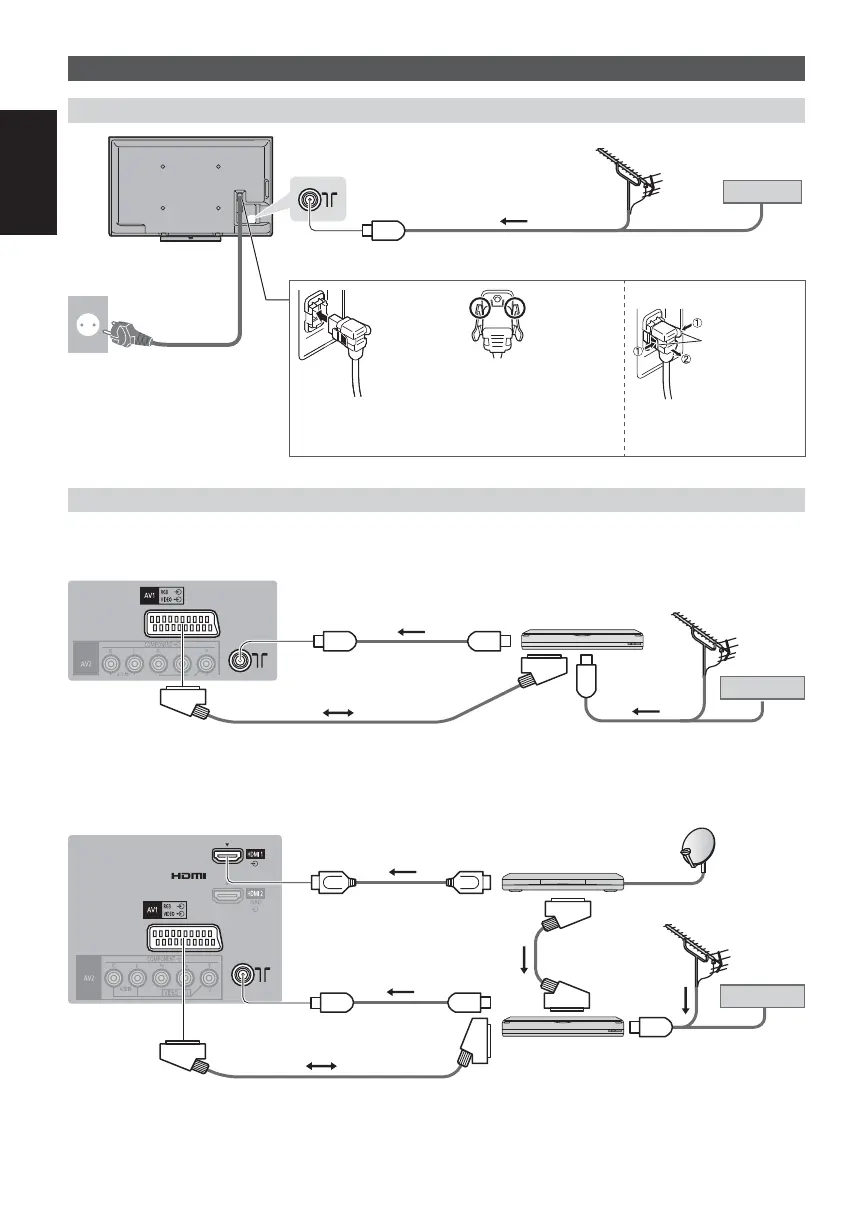

Basic connections
Mains lead and aerial
Cable
 DVB-C, DVB-T, Analogue
AC 220-240 V
50 / 60 Hz
Mains lead
(supplied)
Terrestrial aerial
RF cable
 Mains lead
Push until both side
tabs click
Make sure that
the mains lead is
securely fixed.
To remove from the TV:
tabs
Press both tabs and pull
on mains connector to
release
AV devices
 DVD Recorder / VCR
TV
DVD Recorder / VCR
Cable
SCART cable
RF cable
Terrestrial aerial
RF cable
 DVD Recorder / VCR and Set top box
TV
Set top box
HDMI cable
SCART cable
SCART cable
DVD Recorder / VCR
Terrestrial aerial
RF cable
RF Cable
Cable
