English
26

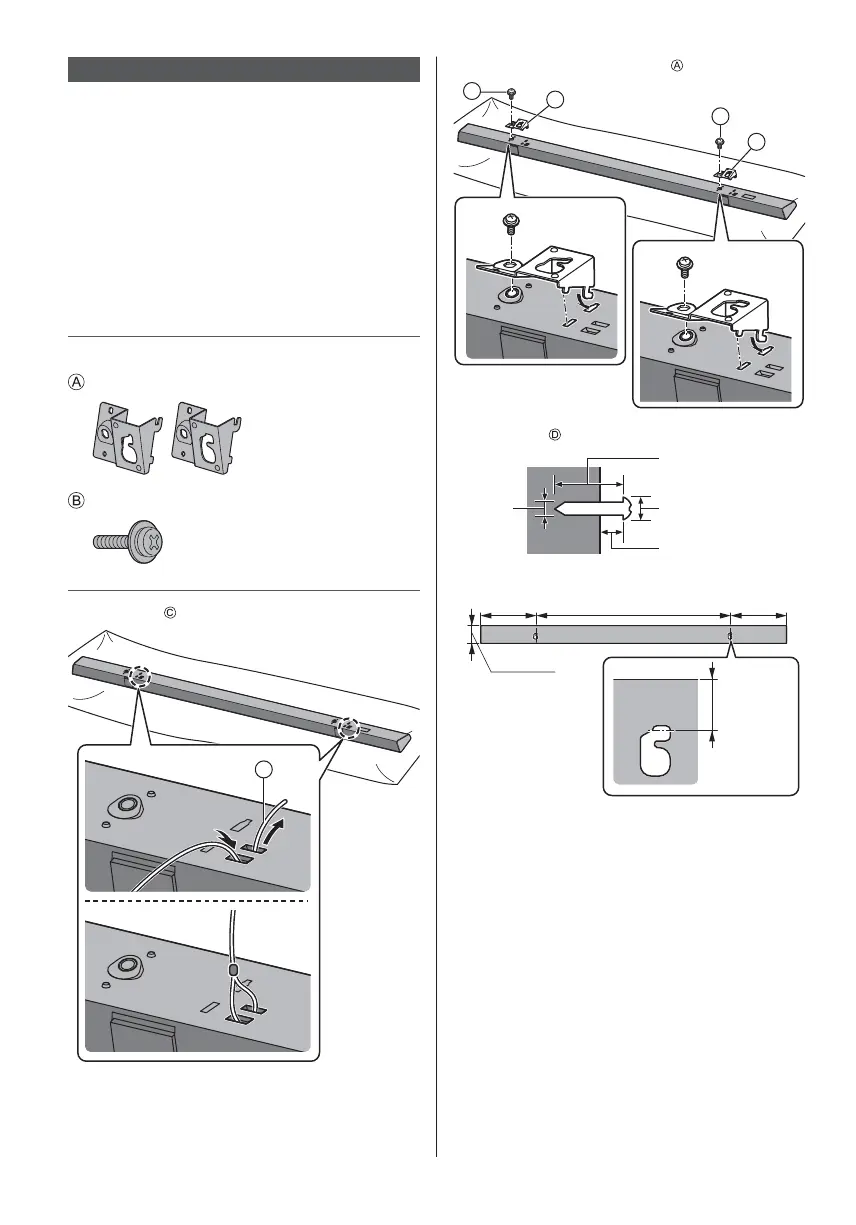

When using the wall-hanging bracket
Professional installation is required. The installation
should never be done by any other than a qualified
installation specialist.
Incorrect fitting may cause equipment to fall, resulting in
injury and product damage. Any such damage will void
your warranty.
Speaker
Be sure to install the speaker as indicated within this
manual.
To prevent damage or scratches, lay down a soft cloth
and perform the assembly on it.
Place the speaker on a flat and vertical surface.
The wall-hanging parts
Wall-hanging bracket (2)
Screw (2)
1 Attach a wire (optional) to the speaker
C
2 Attach the wall-hanging brackets to the speaker
B
A
B
A
3 Drive screws (optional) into the wall
4.0 mm
At least 30 mm
7.0 mm to 9.4 mm
4.5 mm to 5.5 mm
(View from the side)
202.5 mm 700 mm 202.5 mm
65 mm
22 mm
Use the measurements indicated below to identify the
screwing positions on the wall.
Leave at least 100 mm of space above of the speaker
to allow enough space for fitting the speaker.
Be sure to use a level to ensure that both mounting
holes are level to each other.
