Panasonic U-4LE1E5 - Component Layout and Panel Removal

2 - 2
2
Mini VRF SYSTEM
Outdoor Unit Repair Procedures

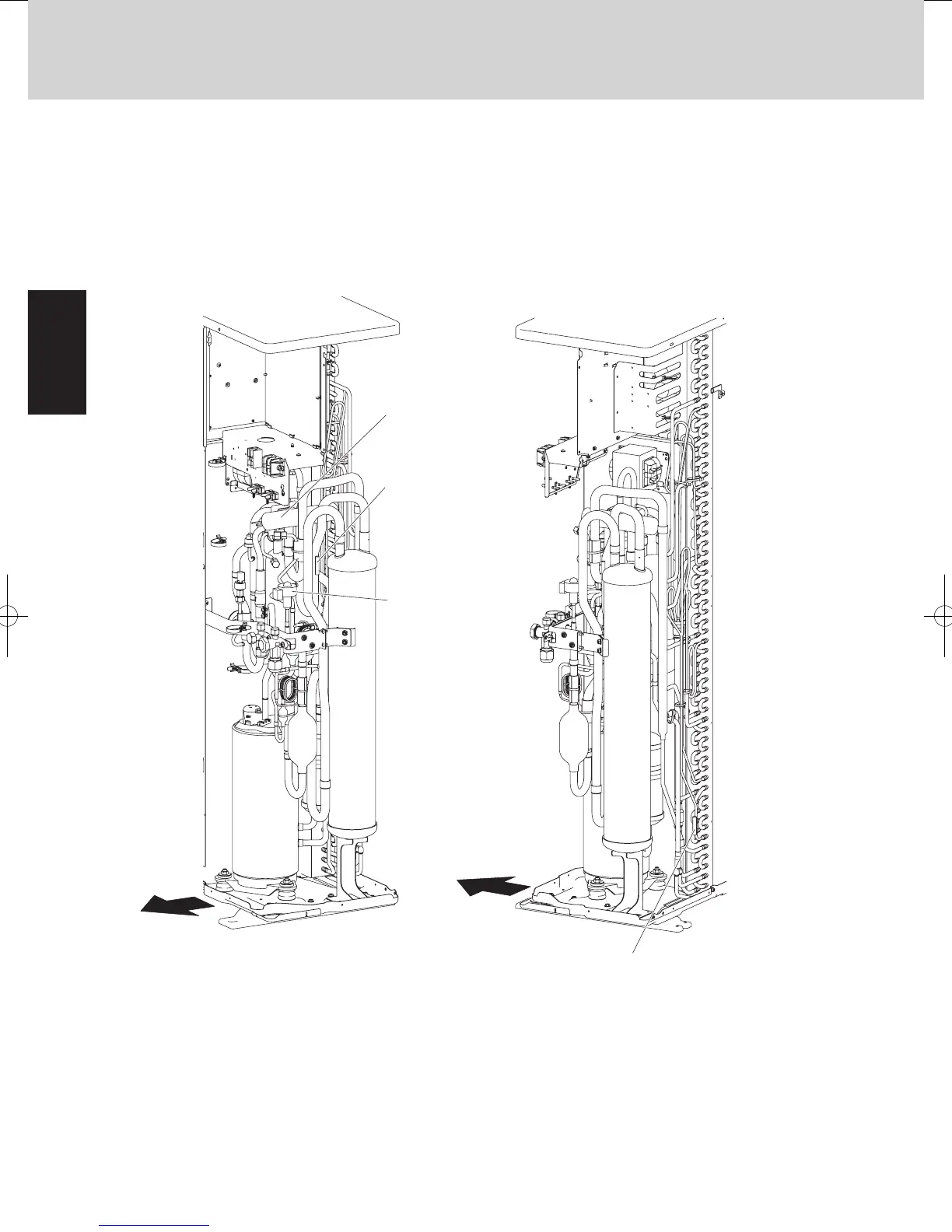

Layout Diagram: Sensors and solenoid valves
2- 2
2
Layout Diagram: Sensors and solenoid valves
Mini VRF SYSTEM
Outdoor Unit Repair Procedures
TS
(suction thermistor)
MOV
(electronic
motor-operated
valve)
20S
(4-way valve)
C1
(condenser 1 thermistor)
Front side
Front side
