Mini VRF SYSTEM
Outdoor Unit Repair Procedures
1. Removing Panels
Mini VRF SYSTEM
Outdoor Unit Repair Procedures
Front panel
Cover A
• Remove the front panel (remove 3 screws).

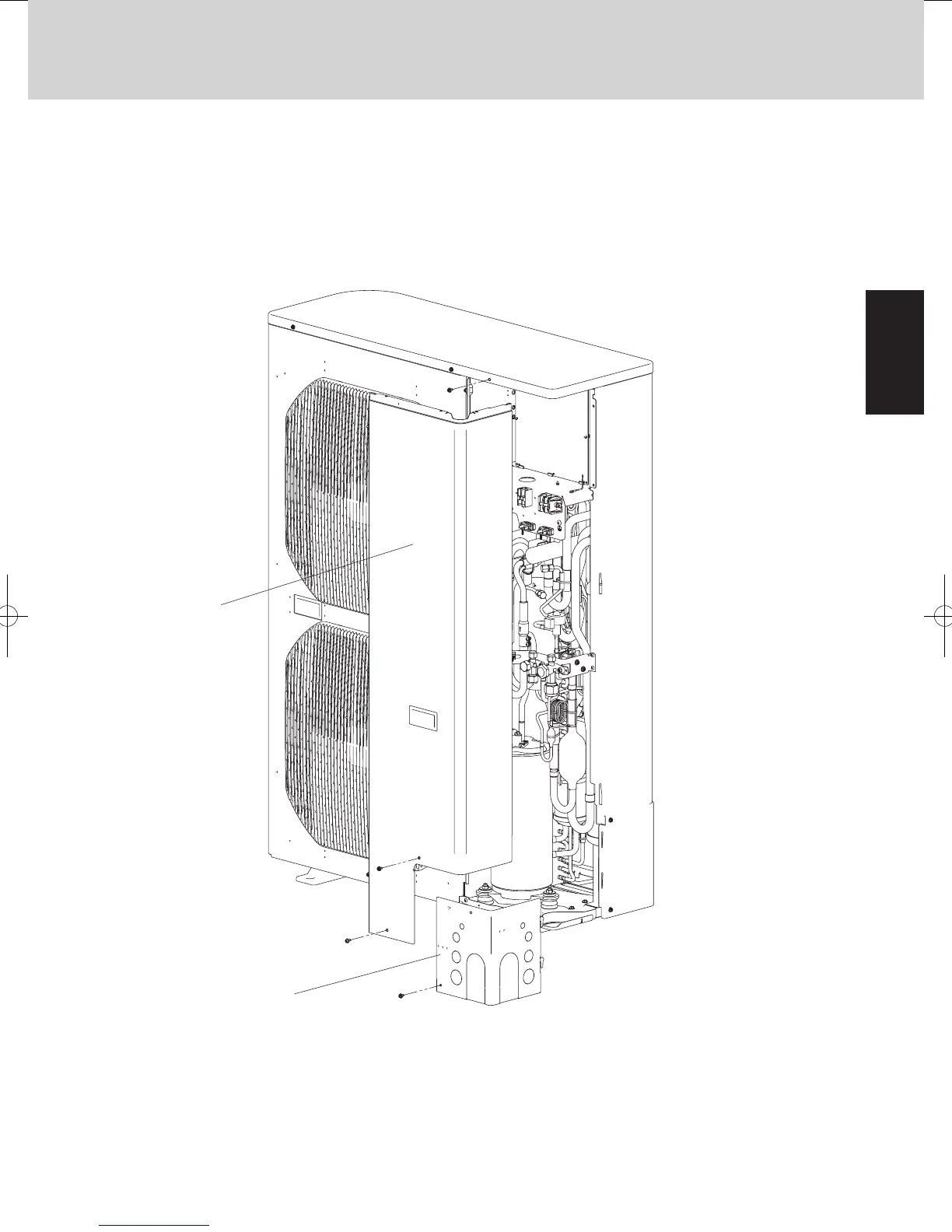

(1) Front panel removal (Fig. 2-1)
(2) Cover A removal (Fig. 2-1)
• Remove the cover A (remove 1 screw).
Fig. 2-1
1. Removing Panels
