Panasonic Viera TC-L37C22

10
High-Definition
Standard-Definition
Note
For more details on the external equipment’s connections, please refer to the operating manual for the equipment.

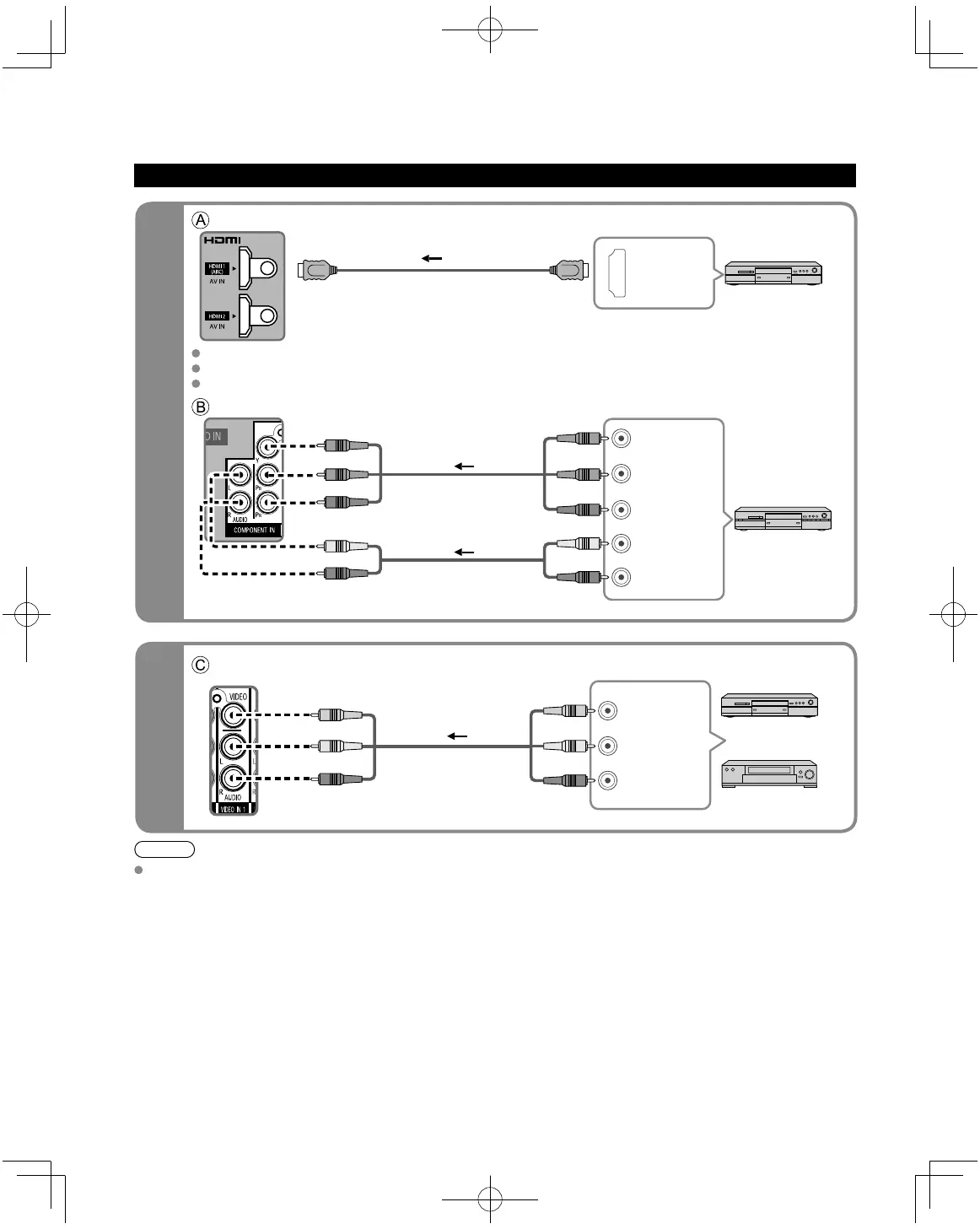

To use HDMI terminals
HDMI
AV OUT
e.g. Blu-ray Disc
player
AV Equipment
Connecting to the HDMI terminals will enable you to enjoy high-definition digital images and high-quality sound.
The HDMI connection is required for a 1080p signal.
For “VIERA Link
TM
connections”, please refer to p. 27.
To use COMPONENT terminals
L
R
Y
P
B
PR
COMPONENT
VIDEO OUT
AUDIO
OUT
white
red
green
blue
red
whit
e
re d
gre en
blu e
re d
white
red
green
blue
red
e.g. Blu-ray Disc
player
AV Equipment
AV cable connections
Basic Connection (Continued)
To use COMPOSITE terminals
L
R
COMPOSITE
OUT
yellow
white
red
y ellow
wh ite
red
yellow
white
red
or
e.g. DVD Recorder
AV Equipment
e.g. VCR
