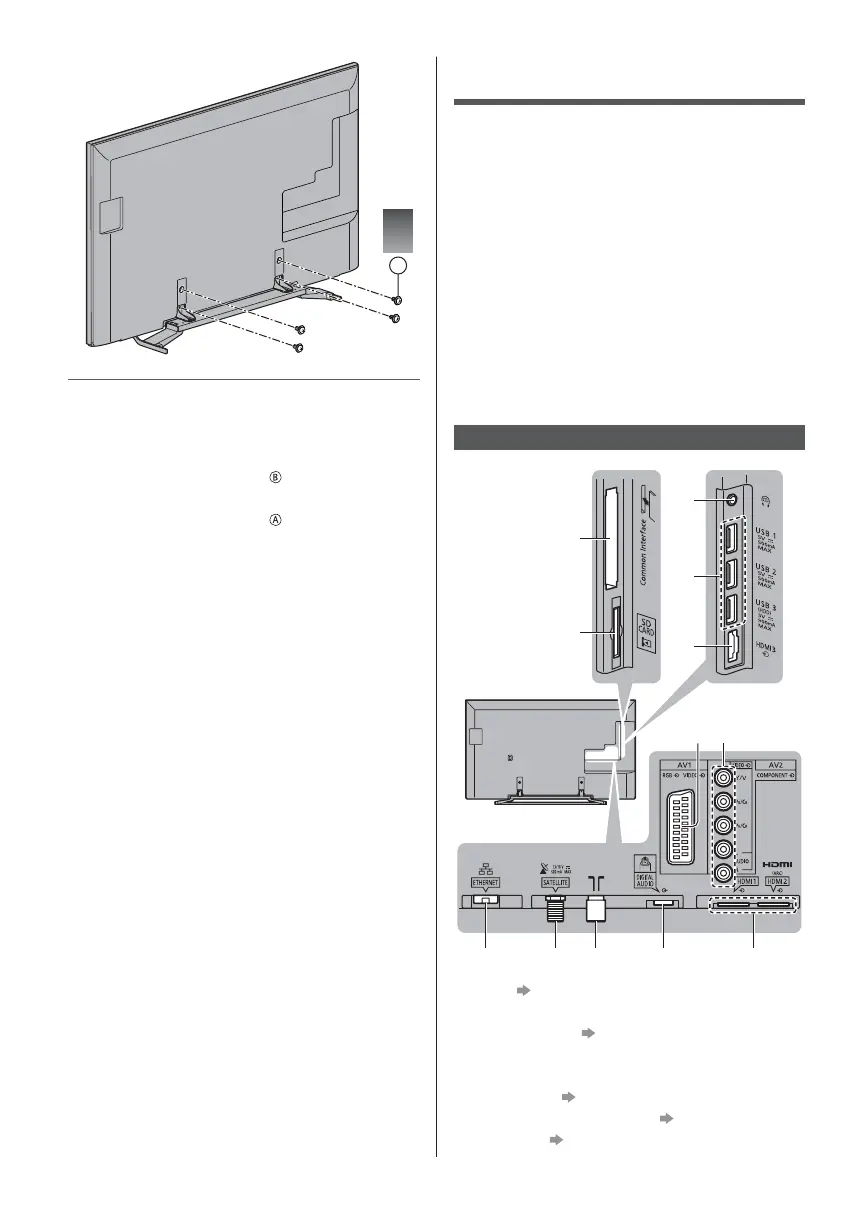

Removing the pedestal from the TV
Be sure to remove the pedestal in the following way
when using the wall-hanging bracket or repacking the
TV.
1 Remove the assembly screws
from the TV.
2 Pull out the pedestal from the TV.
3 Remove the assembly screws
from the bracket.
Connections
External equipment and cables shown are not
supplied with this TV.
Please ensure that the unit is disconnected from the
mains socket before attaching or disconnecting any
cables.
Check the terminal type and cable plugs are correct
for connection.
Use a fully wired HDMI compliant cable.
Use a fully wired SCART cable.
Keep the TV away from electronic equipment (video
equipment, etc.) or equipment with an infrared sensor,
otherwise distortion of image / sound may occur or
operation of other equipment may be affected.
Please also read the manual of the equipment being
connected.
Terminals
4
5
1
2
3
8 109 11
6
12
7
1 CI slot (p. 11)
2 SD Card slot
3 Headphone jack
(p. 11)
4 USB 1 - 3 port
5 HDMI3
6 AV1 (SCART)
(p. 10)
7 AV2 (COMPONENT / VIDEO)
(p. 11)
8 ETHERNET
(p. 10)
