2 Booster heater Turn Off condition:
o Tank temperature > Tank set temperature + [+2°C] for continuous 15 sec
o When BOOSTER HEATER DELAY TIMER start count after switch from heating heat-up interval to tank
heat-up interval
* DELAY TIMER can be set by control panel.
12.11 Base Pan Heater Control (Optional)

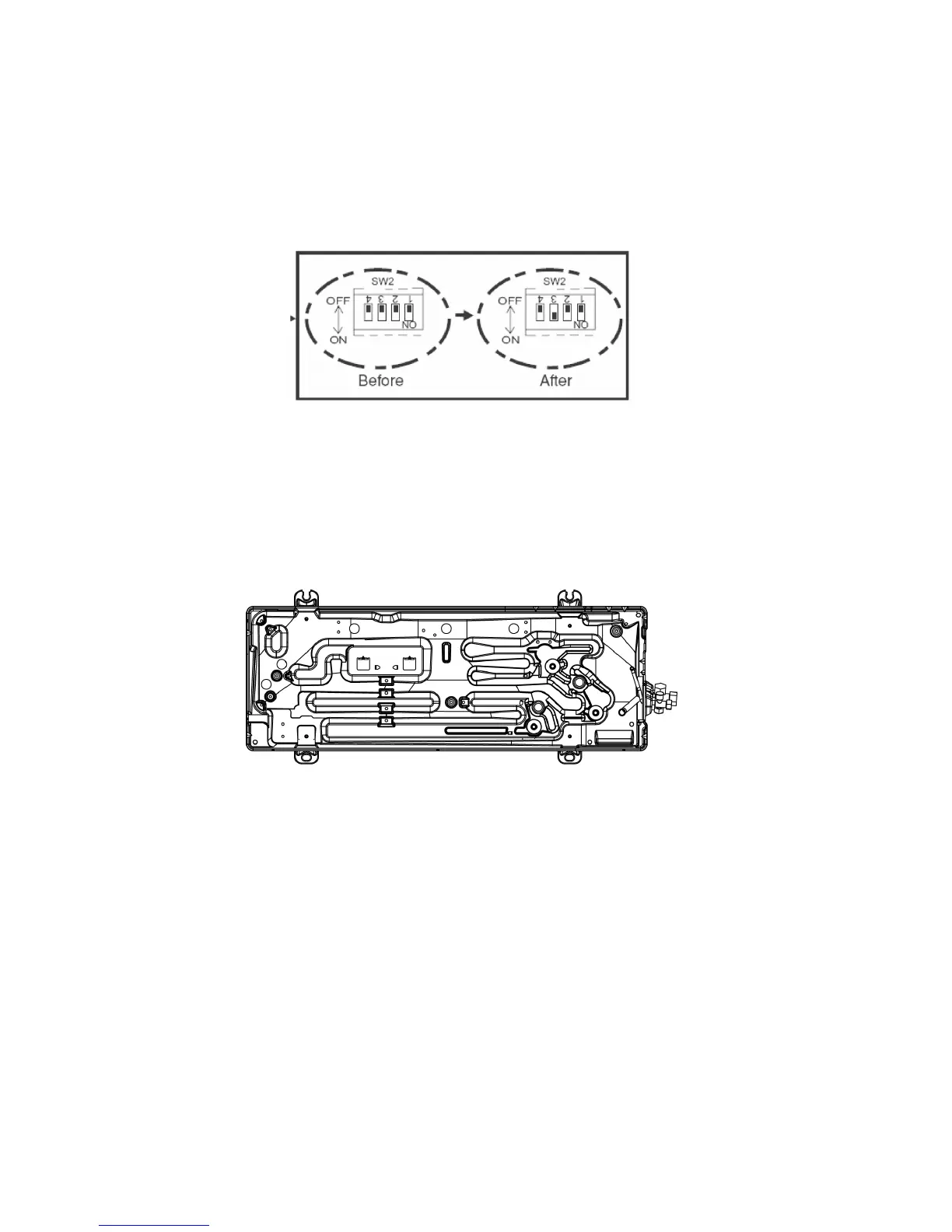

To enable the base pan heater function, pin 3 of SW2 of water system PCB has to be switched from OFF to ON
position.
Base pan heater ON condition:
1 When outdoor ambient temperature ≤ 3°C AND
2 Deice operation ON
Base pan heater will continue ON for 10 minutes after deice operation ends.
Base pan heater OFF condition:
1 When outdoor ambient temperature > 3°C OR
2 When operation is not heating OR
3 Base pan heater ON timer count completed
12.12 Three Way Valve Control
Purpose:
- 3 ways valve is used to change flow direction of hot water from heatpump between heating side and tank side
Control contents:
1 3 ways valve switch Off:
o During 3 ways valve switch Off time, the hot water will provide heat capacity to heating side.
2 3 ways valve switch On:
o During 3 ways valve switch On time, the hot water will provide heat capacity to tank side.
3 Stop condition:
o During stop mode, 3 ways valve will be in switch off position
