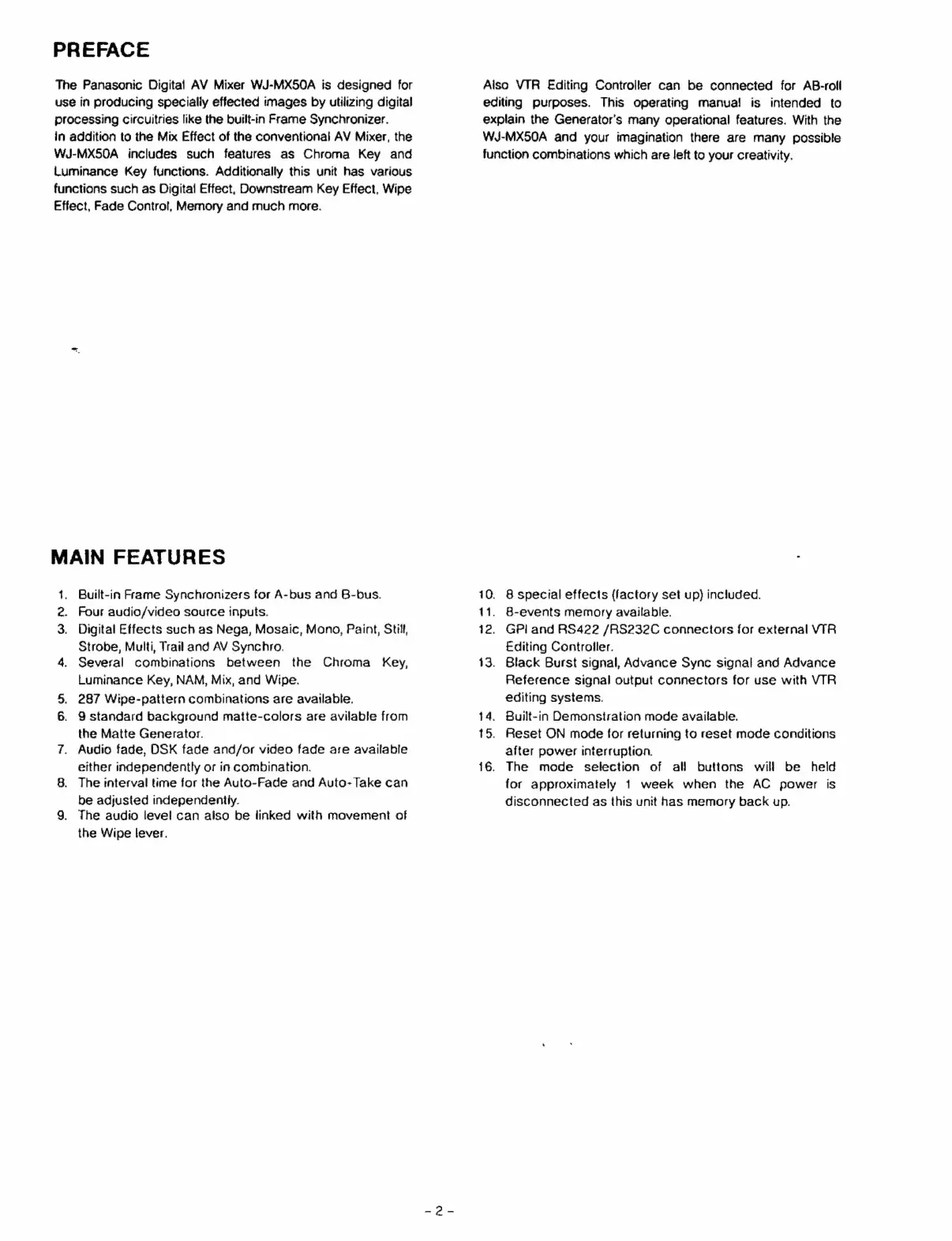

PREFACE
The Panasonic Digital AV Mixer WJ-MX50A is designed for
use in producing specially effected images by utilizing digital
processing circuitries like the built-in Frame Synchronizer.
in addition to the Mix Effect of the conventional AV Mixer, the
WJ-MX50A includes such features as Chroma Key and
Luminance Key functions. Additionally this unit has various
functions such as Digital Effect, Downstream Key Effect, Wipe
Effect, Fade Control, Memory and much more.
MAIN FEATURES
t. Built-in Frame Synchronizers for A-bus and B-bus.
Four audio/video source inputs.
3. Digital Effects such as Nega, Mosaic, Mono, Paint, Still,
Strobe, Multi, Trail and AV Synchro.
4. Several combinations between the Chroma Key,
Luminance Key, NAM, Mix, and Wipe.
5. 287 Wipe-pattern combinations are available.
6. 9 standard background matte-colors are avilable from
the Matte Generator.
7T. Audio fade, DSK fade and/or video fade are available
either independently or in combination.
8. The interval time for the Auto-Fade and Auto- Take can
be adjusted independently.
9. The audio level can also be linked with movement of
the Wipe lever.
m
Aiso VTR Editing Controller can be connected for AB-roll
editing purposes. This operating manua! is intended to
explain the Generator's many operational features. With the
WJ-MX50A and your imagination there are many possible
function combinations which are left to your creativity.
10. 8 special effects (factory set up) included.
11. B-events memory available.
12. GPI and 85422 /RS232C connectors for external МТА
Editing Controller.
13. Black Burst signal, Advance Sync signal and Advance
Reference signal output connectors for use with VTR
editing systems.
14. Bullt-in Demonstration mode available.
15. Reset ON mode for returning to reset mode conditions
after power interruption.
16. The mode selection of all buttons wil be held
for approximately 1 week when the AC power is
disconnected as this unit has memory back up.
