Panasonic WJ-MX50A - Page 6

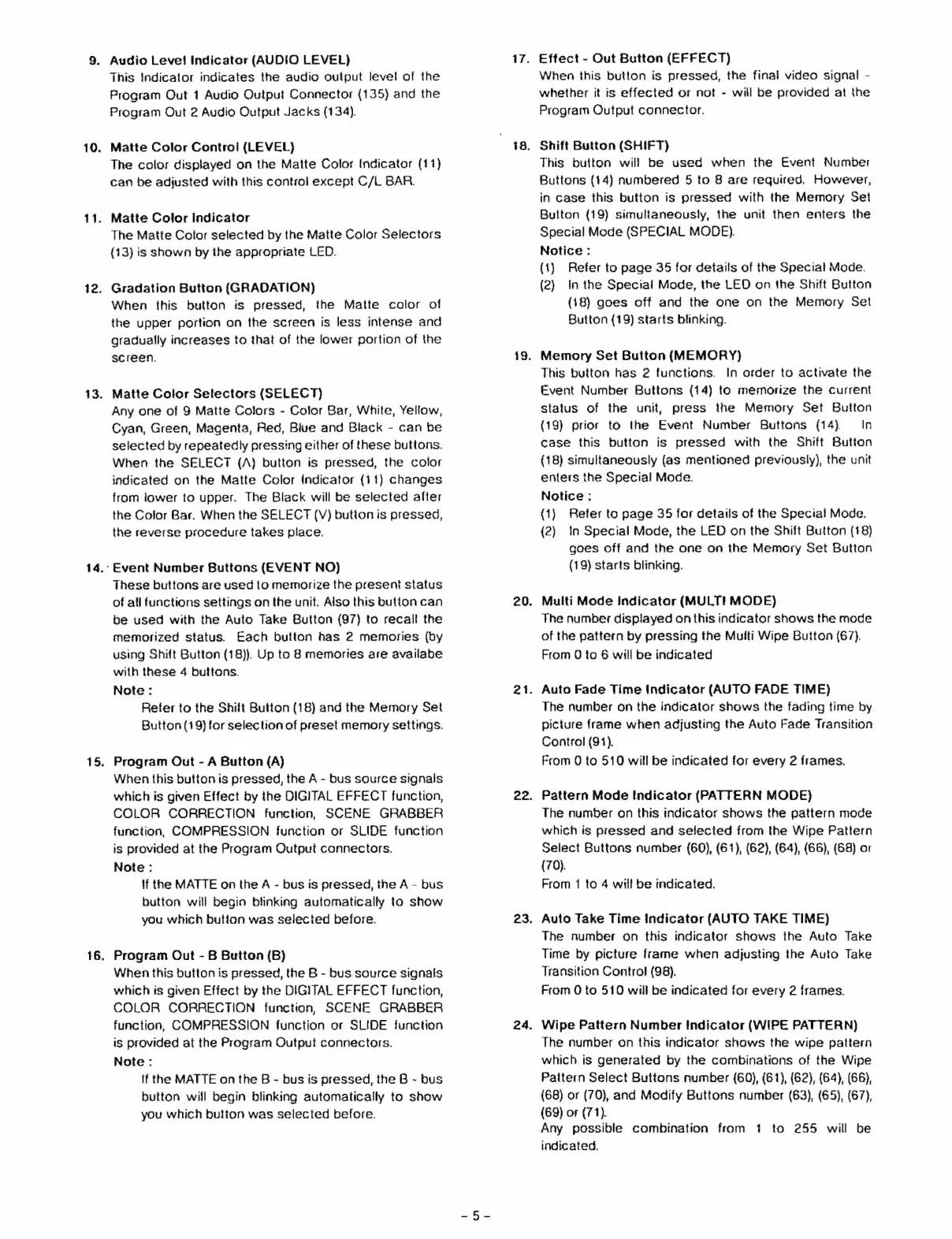

10.
11.
12.
13.
14.
15.
16,
Audio Level Indicator (AUDIO LEVEL)
This Indicator indicates the audio output level of the
Program Out 1 Audio Output Connector (135) and the
Program Out 2 Audio Output Jacks (134).
Matte Color Control (LEVEL)
The color displayed on the Matte Color Indicator (11)
can be adjusted with this control except C/L BAR.
Matte Color Indicator
The Matte Color selected by the Matte Color Selectors
(13) is shown by ihe appropriate LED.
Gradation Button (GRADATION)
When this button is pressed, the Matte color of
the upper portion on the screen is less intense and
gradually increases to that of the lower portion of the
screen.
Matte Color Selectors (SELECT)
Any one of 9 Matte Colors - Color Bar, White, Yellow,
Cyan, Green, Magenta, Red, Blue and Black - can be
selected by repeatedly pressing either of these buttons.
When the SELECT (A) button is pressed, the color
indicated on the Matte Color Indicator (11) changes
from lower to upper. The Black will be selected after
the Color Bar. When the SELECT (V) button is pressed,
the reverse procedure takes place.
Event Number Buttons (EVENT NO)
These buttons are used to memorize the present status
of all functions settings on the unit. Also this button can
be used with the Auto Take Button (97) to recall the
memorized status. Each button has 2 memories (by
using Shift Button (18). Up to В memories are availabe
with these 4 buttons.
Note :
Refer to the Shift Button (18) and the Memory Set
Button (19) for selection of preset memory settings.
Program Out - A Button (A)
When this button is pressed, the A - bus source signals
which is given Effect by the DIGITAL EFFECT function,
COLOR CORRECTION function, SCENE GRABBER
function, COMPRESSION function or SLIDE function
is provided at the Program Output connectors.
Note :
If the MATTE on the A - bus is pressed, the A - bus
button will begin blinking automatically to show
you which button was selected before.
Program Out - B Button (B)
When this button is pressed, the B - bus source signals
which is given Effect by the DIGITAL EFFECT function,
COLOR CORRECTION function, SCENE GRABBER
function, COMPRESSION function or SLIDE function
is provided at the Program Output connectors.
Note :
if the MATTE on the В - bus is pressed, the B ~ bus
button will begin blinking automatically to show
you which button was selected before.
17.
18.
19.
20.
21.
22.
23.
24.
Effect - Out Button (EFFECT)
When this button is pressed, the final video signal -
whether it is effected or not - will be provided at the
Program Output connector.
Shift Button (SHIFT)
This button will be used when the Event Number
Buttons (14) numbered 5 to 8 are required. However,
in case this button is pressed with the Memory Sel
Button (19) simultaneously, the unit then enters the
Special Mode (SPECIAL MODE).
Notice :
(1) Refer to page 35 for details of the Special Mode.
(2) In the Special Mode, the LED on the Shift Button
(18) goes off and the one on the Memory Set
Button (19) starts blinking.
Memory Set Button (MEMORY)
This button has 2 functions. In order to activate the
Event Number Buttons (14) to memorize the current
status of the unit, press the Memory Set Button
(19) prior to the Event Number Buttons (14) In
case this button is pressed with the Shift Button
(18) simultaneously (as mentioned previously), the unit
enters the Special Mode.
Notice :
(1) Refer to page 35 for details of the Specia! Mode.
(2) In Special Mode, the LED on the Shift Button (18)
goes off and the one on the Memory Set Button
(19) starts blinking.
Multi Mode Indicator (MULTI MODE)
The number displayed on this indicator shows the mode
of the pattern by pressing the Muiti Wipe Button (67).
From 0 to 6 will be indicated
Auto Fade Time Indicator (AUTO FADE TIME)
The number on the indicator shows the fading time by
picture frame when adjusting the Auto Fade Transition
Control (91).
From 0 to 510 will be indicated for every 2 frames.
Pattern Mode Indicator (PATTERN MODE)
The number on this indicator shows the pattern mode
which is pressed and selected from the Wipe Pattern
Select Buttons number (60), (61), (62), (64), (66), (68) or
(70).
From 1 to 4 will be indicated.
Auto Take Time Indicator (AUTO TAKE TIME)
The number on this indicator shows the Auto Take
Time by picture frame when adjusting the Auto Take
Transition Control (98).
From 0 to 510 will be indicated for every 2 frames.
Wipe Pattern Number !ndicator (WIPE PATTERN)
The number on thís indicator shows the wipe pattern
which is generated by the combinations of the Wipe
Pattern Select Buttons number (60), (61), (62), (64), (66),
(68) or (70), and Modify Buttons number (63), (65), (67),
(69) or (71).
Any possible combination from 1
indicated.
to 255 will be
