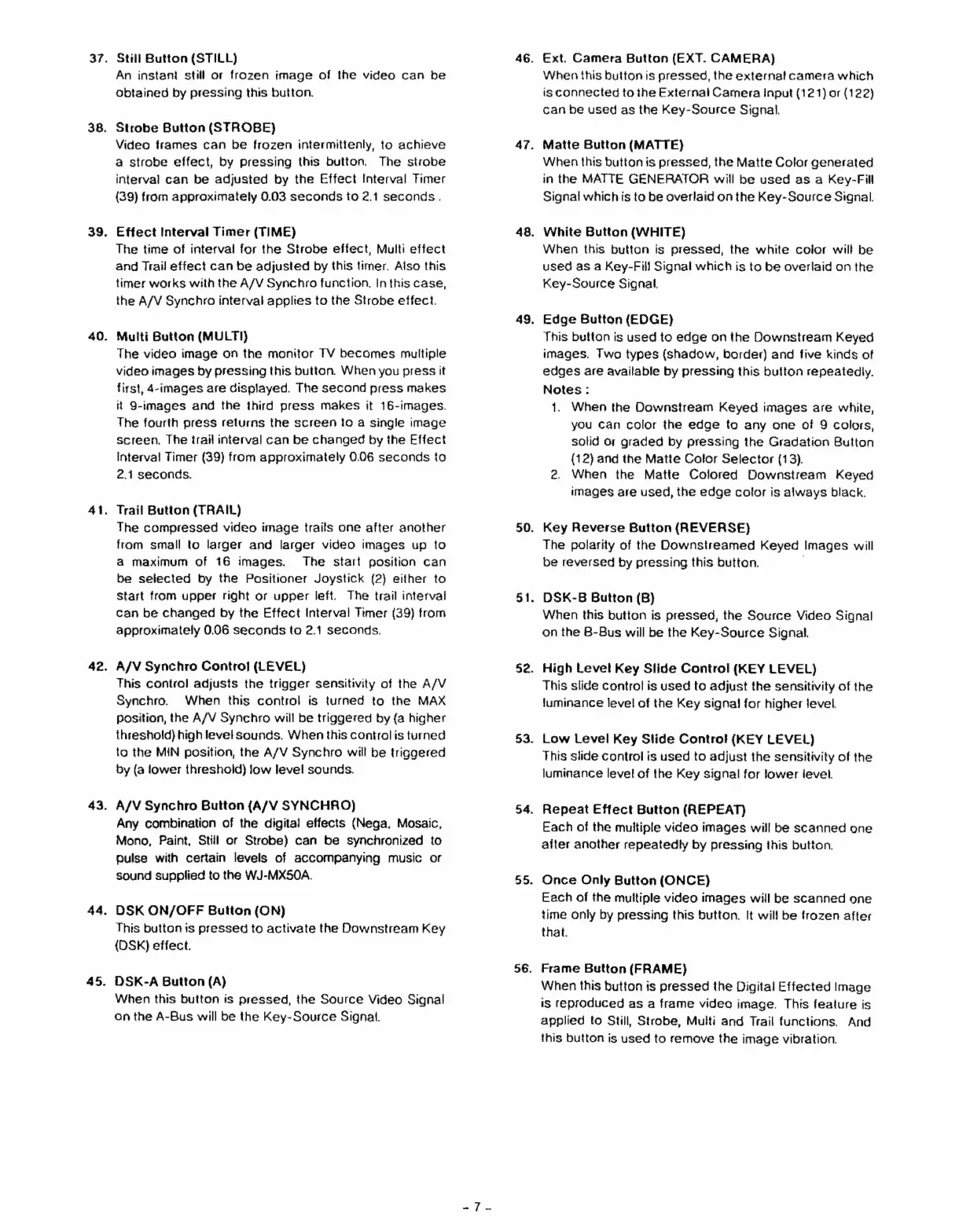

37.
38.
39.
40.
41,
42.
43.
44.
45.
Still Button (STILL)
An instant still or frozen image of the video can be
obtained by pressing this button.
Strobe Button (STROBE)
Video frames can be frozen intermittenly, to achieve
a strobe effect, by pressing this button. The strobe
interval can be adjusted by the Effect Interval Timer
(39) from approximately 0.03 seconds to 2,1 seconds.
Effect Interval Timer (TIME)
The time of interval for the Strobe effect, Multi effect
and Trail effect can be adjusted by this timer. Also this
timer works with the A/V Synchro function, In this case,
the A/V Synchro interval applies to the Strobe effect.
Multi Button (МОСТ)
The video image on the monitor TV becomes multiple
video images by pressing this button. When you press it
first, 4-images are displayed. The second press makes
tt 9-images and the third press makes it 16-images.
The fourth press returns the screen to a single image
screen. The trail interval can be changed by the Effect
Interval Timer (39) from approximately 0.06 seconds to
2.1 seconds.
Trail Button (TRAIL)
The compressed video image trails one after another
from small to larger and larger video images up to
a maximum of 16 images. The start position can
be selected by the Positioner Joystick (2) either to
Start from upper right or upper left. The trail interval
can be changed by the Effect Interval Timer (39) from
approximately 0.06 seconds to 2.1 seconds.
A/V Synchro Control (LEVEL)
This control adjusts the trigger sensitivity of the A/V
Synchro. When this control is turned to the MAX
position, the A/V Synchro will be triggered by {a higher
threshold) high level sounds. When this controlis turned
to the MIN position, the A/V Synchro will be triggered
by (a lower threshold) low level sounds.
A/V Synchro Button (A/V SYNCHRO)
Any combination of the digital effects (Nega, Mosaic,
Mono, Paint, Still or Strobe) can be synchronized to
pulse with certain levels of accompanying music or
sound supplied to the МЈ-МХ5ОА.
DSK ON/OFF Button (ON)
This button is pressed to activate the Downstream Key
(DSK) effect.
DSK-A Button (A)
When this button is pressed, the Source Video Signal
on the A-Bus will be the Key-Source Signal.
46.
47.
48.
49,
50.
51.
52.
53.
54.
55.
56.
Ext. Camera Button (EXT. CAMERA)
When this button is pressed, the external camera which
is connected to the External Camera Input (121) or (122)
can be used as the Key-Source Signal.
Matte Button (MATTE)
When this button is pressed, the Matte Color generated
in the MATTE GENERATOR will be used as a Key-Fill
Signal which is to be overlaid on the Key-Source Signal.
White Button (WHITE)
When this button is pressed, the white color wilt be
used as a Key-Fill Signal which is to be overlaid on the
Key-Source Signal.
Edge Button (EDGE)
This button is used to edge on the Downstream Keyed
images. Two types (shadow, border) and five kinds of
edges are available by pressing this button repeatedly.
Notes :
1. When the Downstream Keyed images are white,
you can color the edge to any one of 9 colors,
solid or graded by pressing the Gradation Button
(12) and the Matte Color Selector (13).
2. When the Matte Colored Downstream Keyed
images are used, the edge color is always black.
Key Reverse Button (REVERSE)
The polarity of the Downstreamed Keyed Images will
be reversed by pressing this button. |
DSK-B Button (B)
When this button is pressed, the Source Video Signal
on the B-Bus will be the Key-Source Signal.
High Level Key Slide Control (KEY LEVEL)
This slide control is used to adjust the sensitivity of the
luminance level of the Key signal for higher level.
Low Level Key Slide Control (KEY LEVEL)
This slide control is used to adjust the sensitivity of the
luminance level of the Key signal for lower level.
Repeat Effect Button (REPEAT)
Each of the multiple video images will be scanned one
after another repeatedly by pressing this button.
Once Only Button (ONCE)
Each of the multiple video images will be scanned one
time only by pressing this button. It will be frozen after
that.
Frame Button (FRAME)
When this button is pressed the Digital Effected Image
is reproduced as a frame video image. This feature is
applied to Still, Strobe, Muiti and Trail functions. And
this button is used to remove the image vibration.
