Page 14 Issue 2 22/4/98 MPC2000D
FAULT This red LED illuminates when one or more of the MPC2000D Fault functions has operated and stopped the
motor. It remains lit until the condition no longer exists and a reset has been performed. Note it is not possible to
reset a Fault whilst a Start signal is maintained.
INTERNAL FAULT This red LED illuminates when an internal fault has been detected by the MPC2000D
watchdog feature and remains lit until the fault condition is no longer present and if required by the
Alarm/Tripping settings, a reset has been performed.

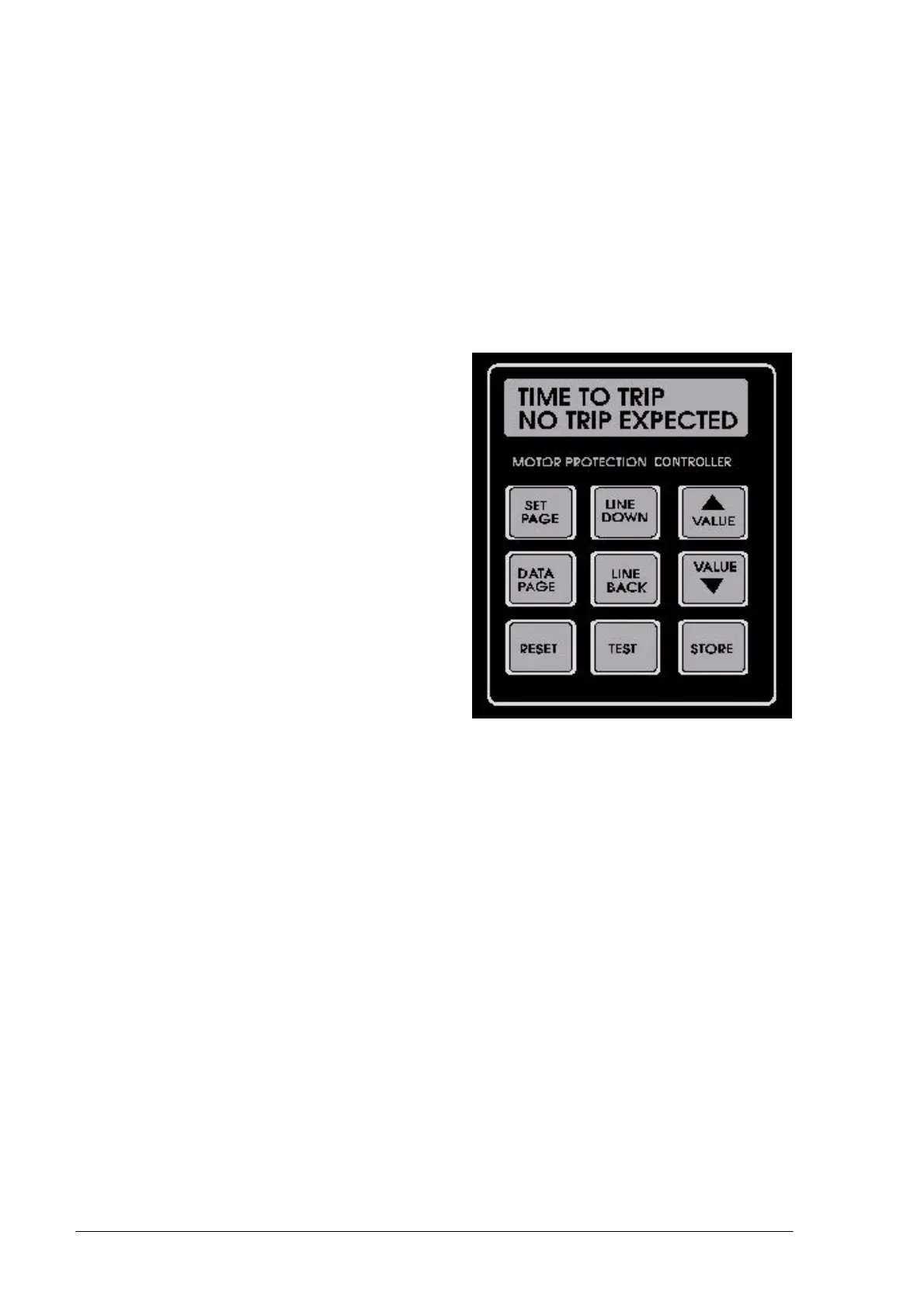

8. MPC Functional Keypad & Display
The MPC2000D is fitted with a functional keypad and a 32
character Alpha-Numeric LCD (Liquid Crystal Display).
This enables all settings to be viewed and configured on
each individual unit and enables the display of any of the
MPC2000D drive data.
The following pages explain the function of the LCD
display and the function of each key:
Liquid Crystal Display
The MPC2000D has been equipped with a 2 line, 16
character per line liquid crystal display.
The display is used for the following functions:
Viewing and Changing of Setting Parameters
Viewing Data Parameters
Flash and Constant Messages
Any Data parameter can be selected as the default display by pressing the STORE key whilst displaying the desired
parameter. The MPC2000D will always return to display this parameter if no key is pressed or no Flash/Constant
Message is displayed for 5 minutes.
Set Page Key
This key when pressed enables the operator to select a page of the MPC2000D Setting parameters, for convenience
the setting parameters are grouped into logical pages. Each time the key is pressed the LCD display will show one of
the pages titles as follows:
Communication Settings
System Parameter Settings
Voltage Settings
Current Settings
Temperature Settings
Tripping/Alarm Options
Pressing the SET PAGE key again after the Tripping/Alarms Options title has been displayed will result in the
display returning to the Communications Settings title and so on.
