ParaBody 807 - Assembly Instructions; Step 1: Prepare Wolff Sleeve and U-Pin Assembly

0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 1
STEP 1:
28
4
25
10
31

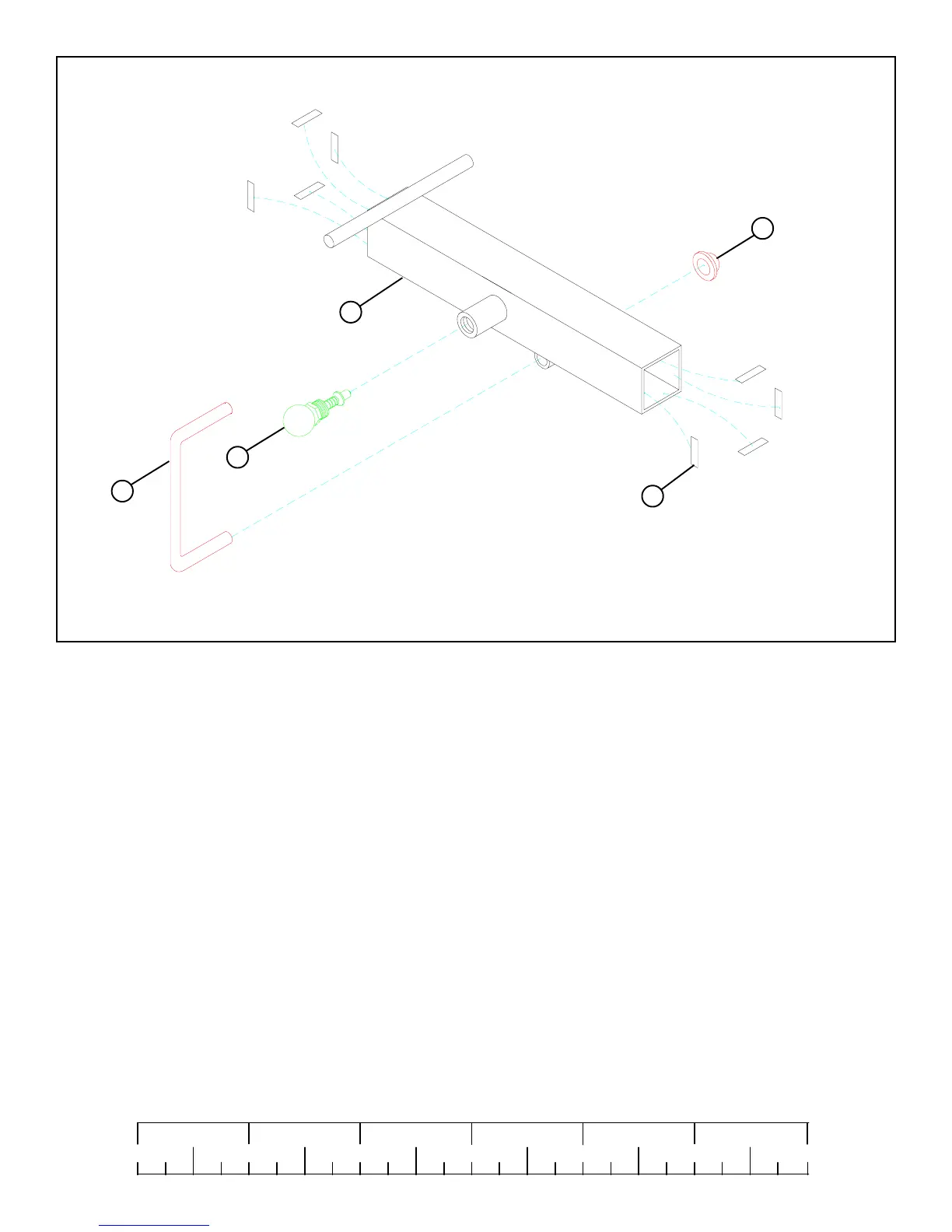

• Attach eight PARAGLIDE STRIPS (31) to the WOLFF SLEEVE (4) (FOUR ON EACH END) as shown in FIGURE 1 using the
following steps:
• Thoroughly clean all surfaces where the PARAGLIDE STRIPS are to be attached.
• Remove the PARAGLIDE STRIPS from the paper backing and firmly apply them to all shown surfaces.
• Insert one U-PIN (10) through the BUSHING of the WOLFF SLEEVE (4) and attach one PAL NUT (28) to the end of the U-PIN
(10) as shown in FIGURE 1.
• SECURELY assemble one 3/8” SPRING PIN ASSEMBLY (25) to the SPRING PIN HOUSING on the WOLFF SLEEVE (4) as
shown in FIGURE 1. (!!! IMPORTANT !!! TIGHTEN THE NUT OF THE SPRING PIN ASSEMBLY SECURELY)
