ParaBody 835102 - Step 1: Assemble Base and Rear Upright

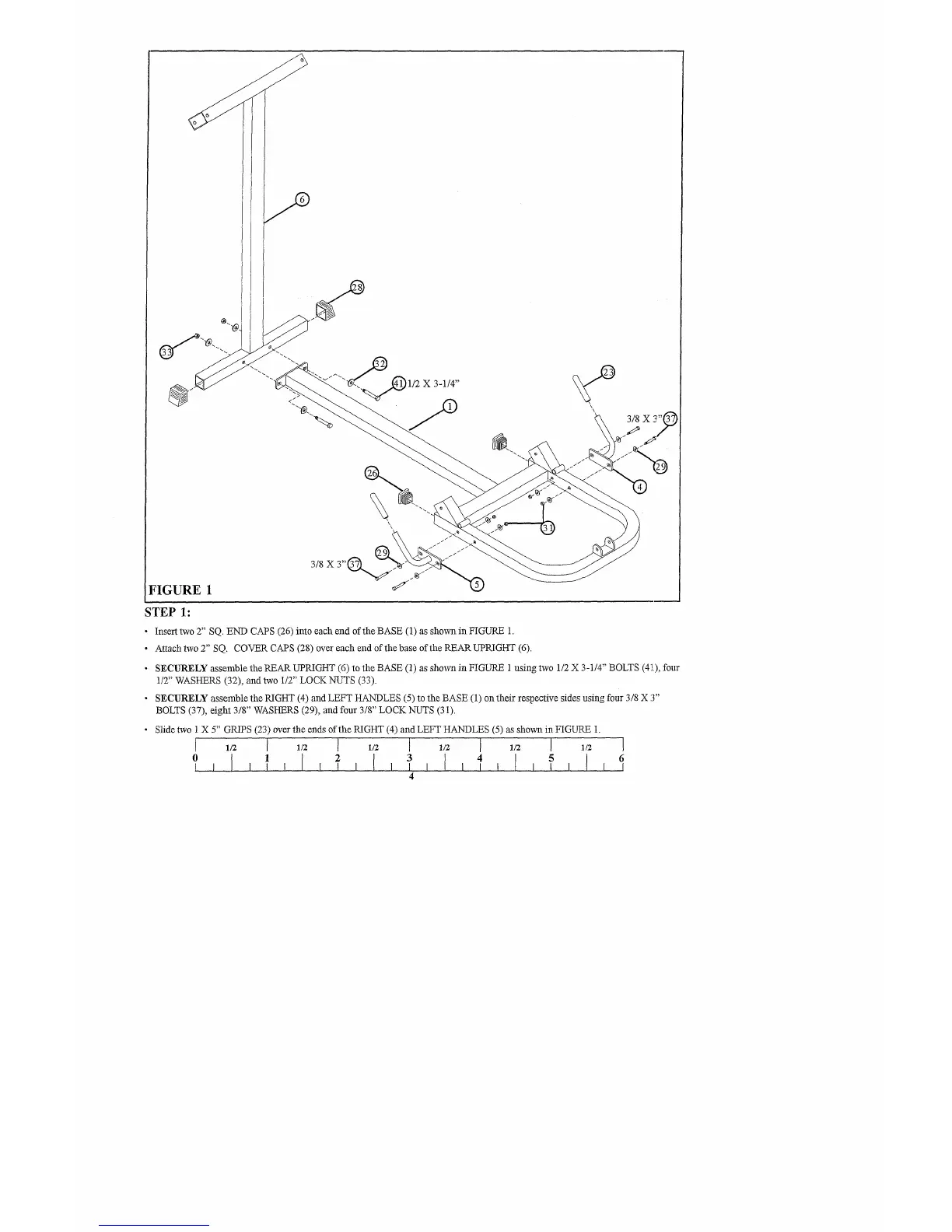

FIGURE 1
X 3-1/4"
STEP 1:
¯
Insert two 2" SQ. END CAPS (26) into each end of the BASE (1) as shown in FIGURE
¯
Attach two 2" SQ, COVER CAPS (28) over each end ofthebase of the REAR UPRIGHT (6).
¯
SECURELY assemble the PEAK UPP,_IGHT (6) to the BASE (1) as shown in FIGURE 1 using two 1/2 X 3-1/4" BOLTS (41.),
1/2" WASHERS (32), and two 1/2" LOCK NUTS (33).
¯
SECURELY assemble the P,_IGHT (4) and LEFT HANDLES (5) to the BASE (1) on their respective sides using four 3/8
BOLTS (37), eight 3/8" WASHERS (29), and four 3/8" LOCK NUTS (31).
¯ Slide two 1 X 5" GRIPS (23) over the ends of the RIGHT (4) and LEFT HANDLES (5) as shown in FIGURE
