ParaBody 835102 - Step 5: Attach Rails and Seat Pad

’@1/2 X 4-1/2"
)
I
I
I
I
I
I
I
I
/
I
I
!
!
/
/
/
/

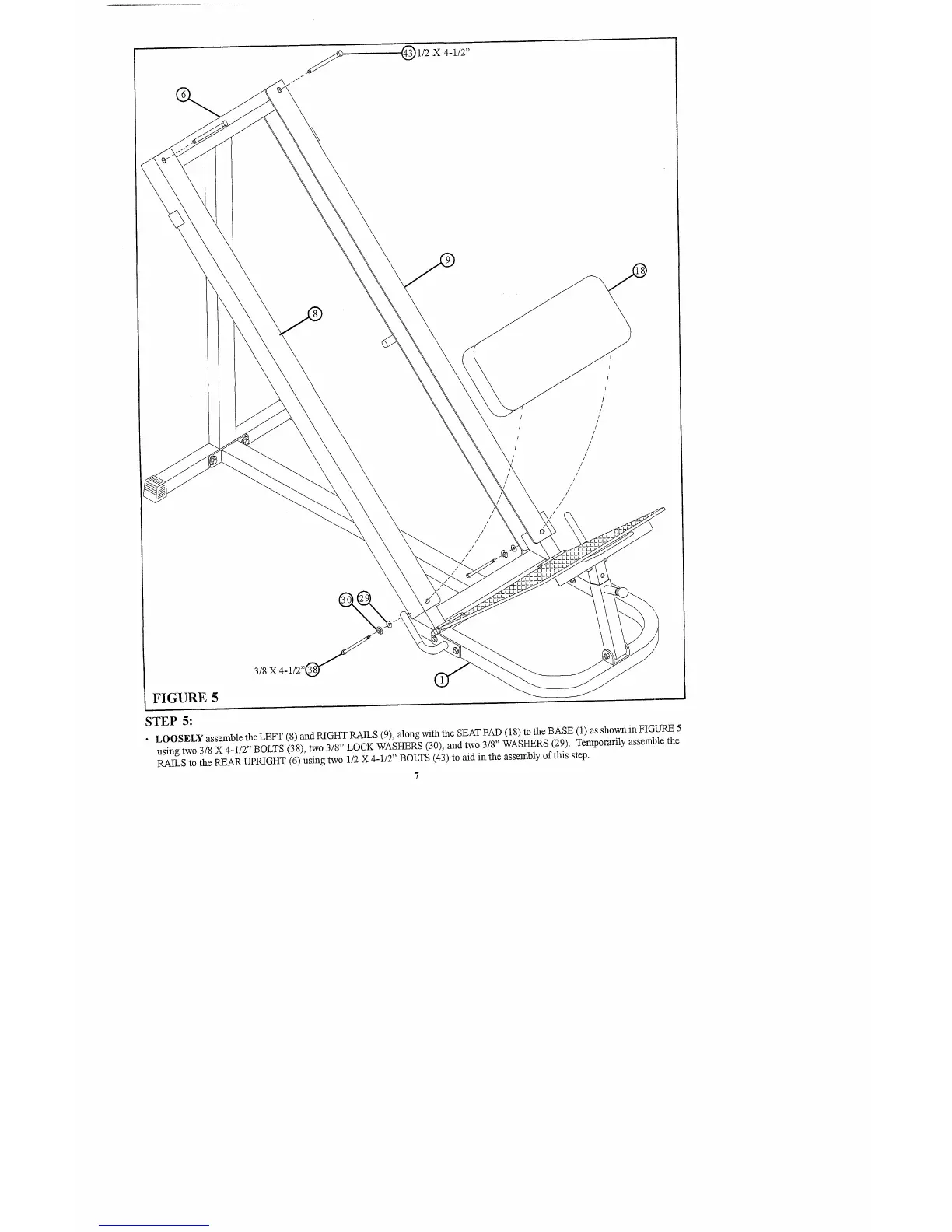

FIGURE 5
3/8 X 4-1/2"@
~
STEP 5:
¯
LOOSELY assemble the LEFT (8) and RIGHT RAILS (9), along with the SEAT PAD (18) to the BASE (1) as shown in
using two 3/8 X 4-1/2" BOLTS (38), two 3/8" LOCK WASteRS (30), and two 3/8" WASHERS (29). Temporarily asselnble
RAILS to the REAR UPRIGHT (6) using two 1/2 X 4-1/2" BOLTS (43) to aid in the assembly of this step.
7
