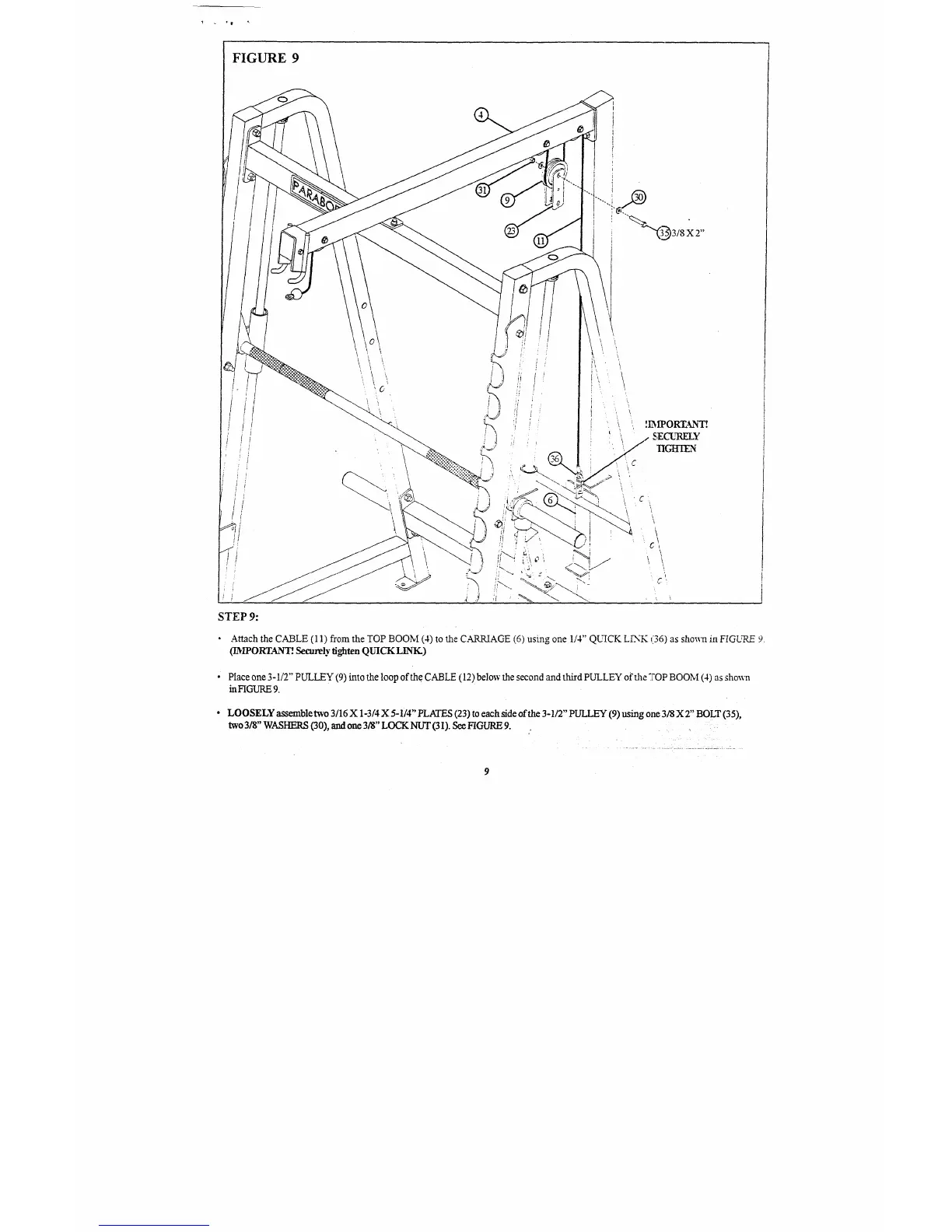

FIGURE 9
STEP 9:
¯
Attach the CABLE (11) from the TOP BOOM (4) to the CARRIAGE (6) using one 1/4" QUICK LINK (36) as shm~al FIGURE 9.
(I/~[PORTAN-~. Secure
b"
lighten QUICKLINK.)
¯
Place one 3-1/2" pLrLLEY (9) into the loop of the CABLE (12) below the second and third PULLEY of the ~FOP BOOM (4) as
in FIGURE 9.
LOOSELY assemble two 3/16 X 1-3/4 X 5-1/4" PLATES (23) to each side of the 3-1/2" PULLEY (9) using one 318 X 2" BOLT (35),
two 318" WASI-IERS (30), and one 3/8" LOCK NUT (31). See FIGURE
