ParaBody 889 - Assembly Step 10; Upright Pulley and Cable Routing

11
STEP 10:

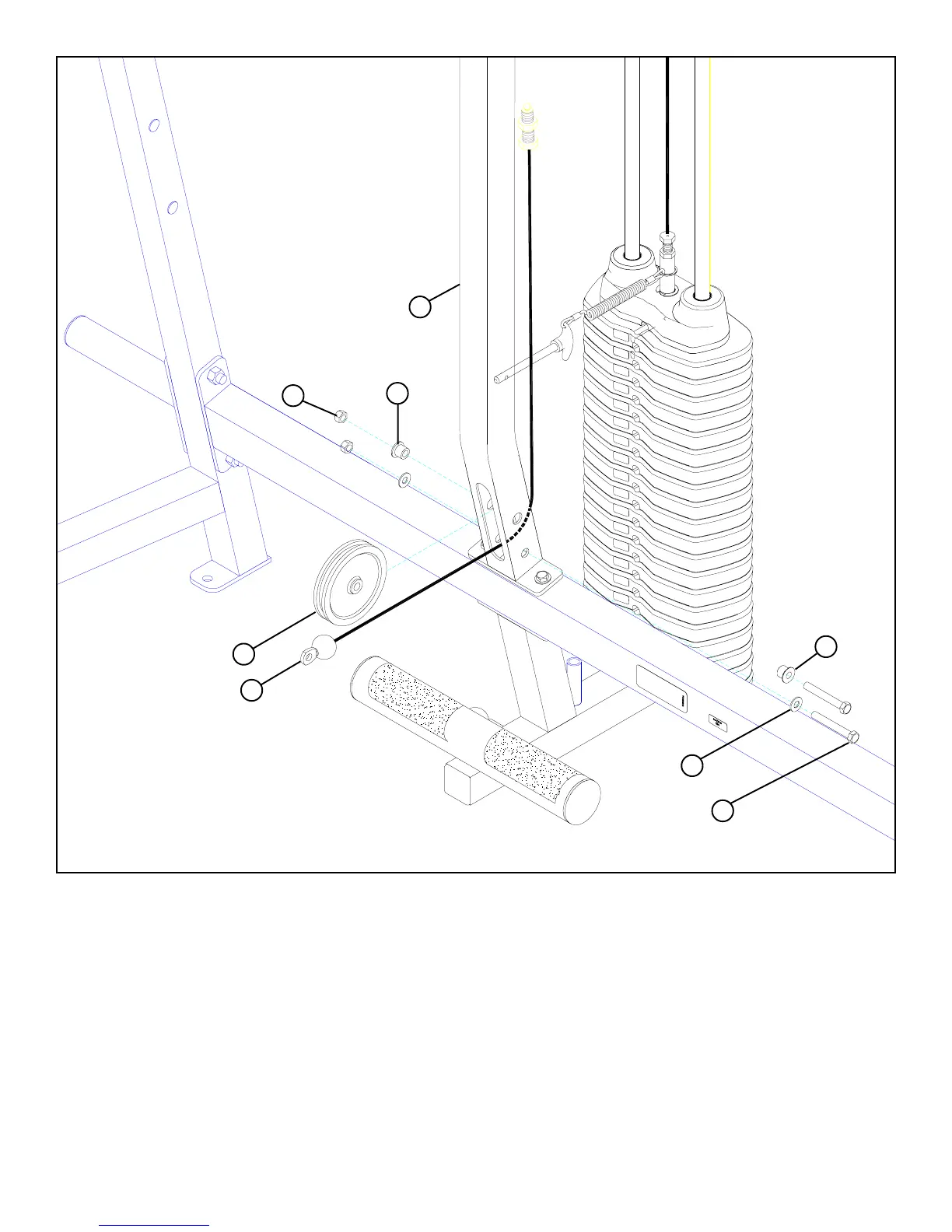

FIGURE 10
• Route the threaded end of the 124” CABLE (11) through the slot of the UPRIGHT (1) then SECURELY assemble one 4-1/2” PULLEY
(10) to the UPRIGHT (1) using two 3/8 X 2-3/4” BOLTS (32), two 3/8” FLANGE SPACERS (33), two 3/8” WASHERS (30), and two 3/8”
LOCK NUTS (31). (NOTE: The CABLE (11) should be routed between the pulley and the retaining bolt as shown in FIG-
URE 10.)
32 3/8 X 2-3/4”
1
33
31
10
11
33
30
