ParaBody 889 - Assembly Step 11; Final Cable Securing

12
STEP 11:

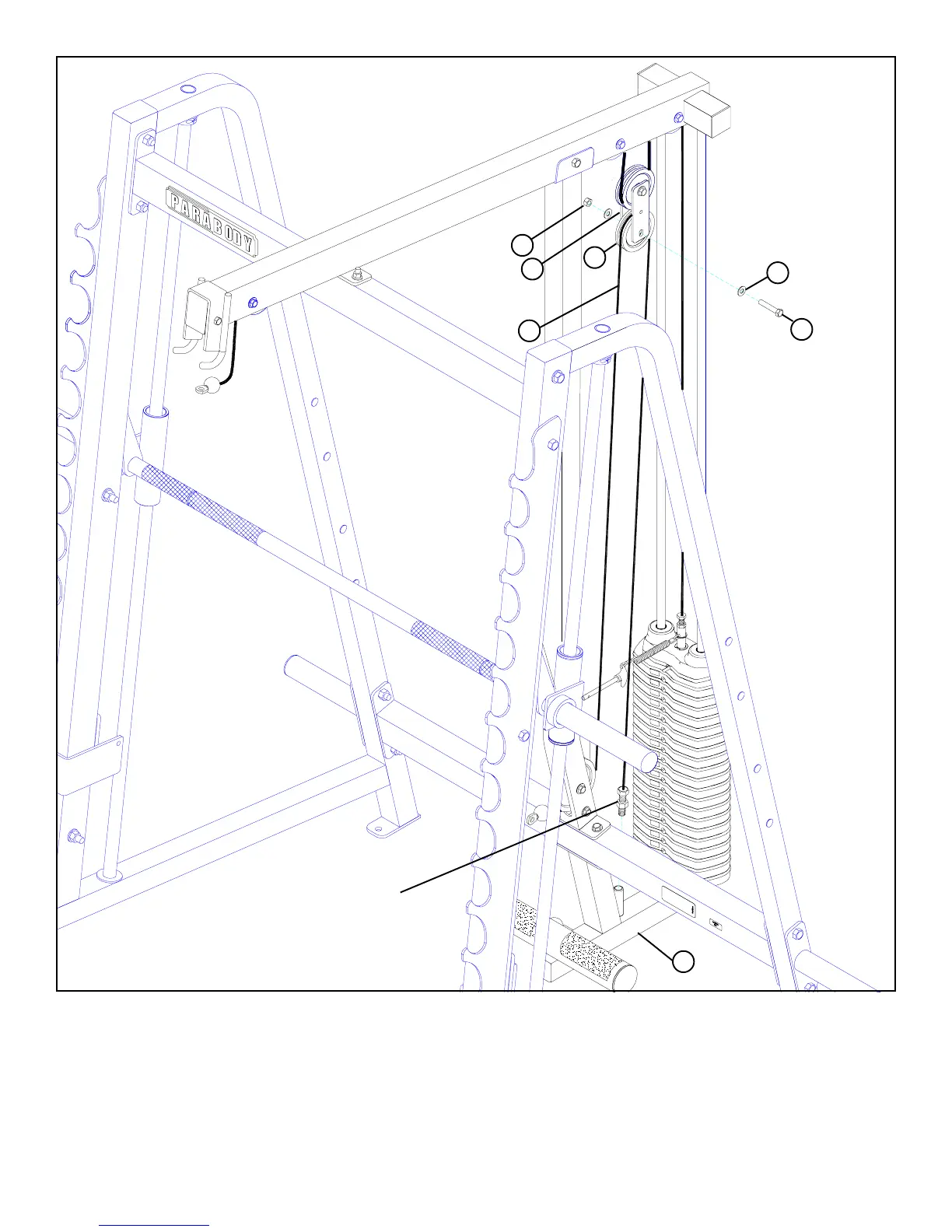

FIGURE 11
• Loop the 124” CABLE (11) around one 3-1/2” PULLEY (9) as shown in FIGURE 11.
• LOOSELY assemble the 3-1/2” PULLEY (9) to the 3/16 X 1-3/4 X 5-1/4” PLATES (23) using one 3/8 X 2” BOLT (35), two 3/8” WASHERS
(30), and one 3/8” LOCK NUT (31). See FIGURE 11.
• SECURELY thread the end of the 124” CABLE (11) 3/4 of the way into into the threaded housing on the STACK BASE (3) and
SECURELY tighten jam nut.
35 3/8 X 2”
30
23
9
31
11
SECURELY
TIGHTEN
JAM NUT!
• SECURELY tighten the two 3/8 X 2” BOLTS (35) of the 3/16 X 1-3/4 X 5-1/4” PLATES (23).
